Toyota Camry Hybrid

2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

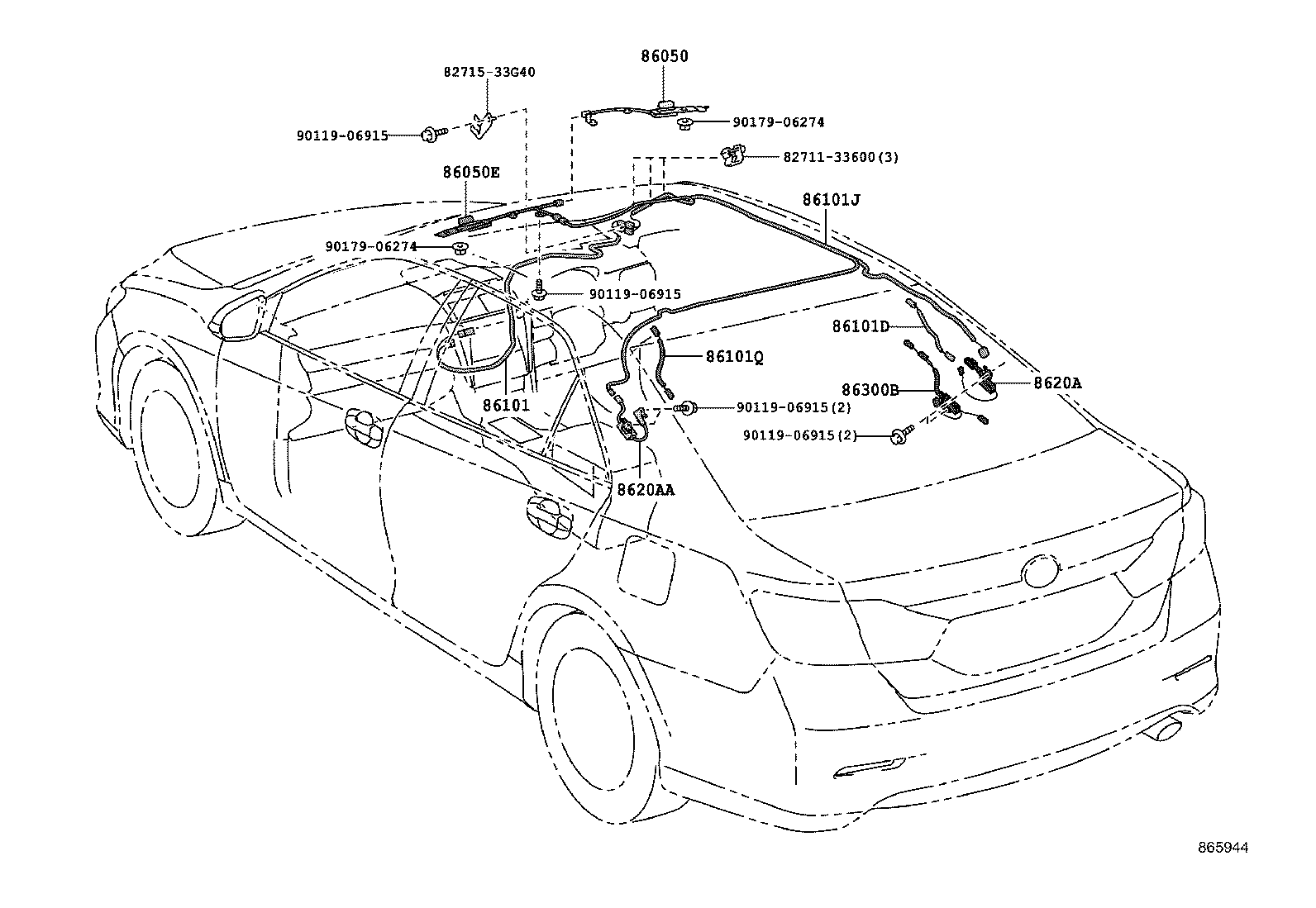

Figure 864539 864539 2011-08 → 2014-09 Figure 865944 865944 2014-09 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
8620A Antenna Sub-assy, Digital Television, NO.1
8620AA Antenna Sub-assy, Digital Television, NO.2
86300B Antenna Assy, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
