Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

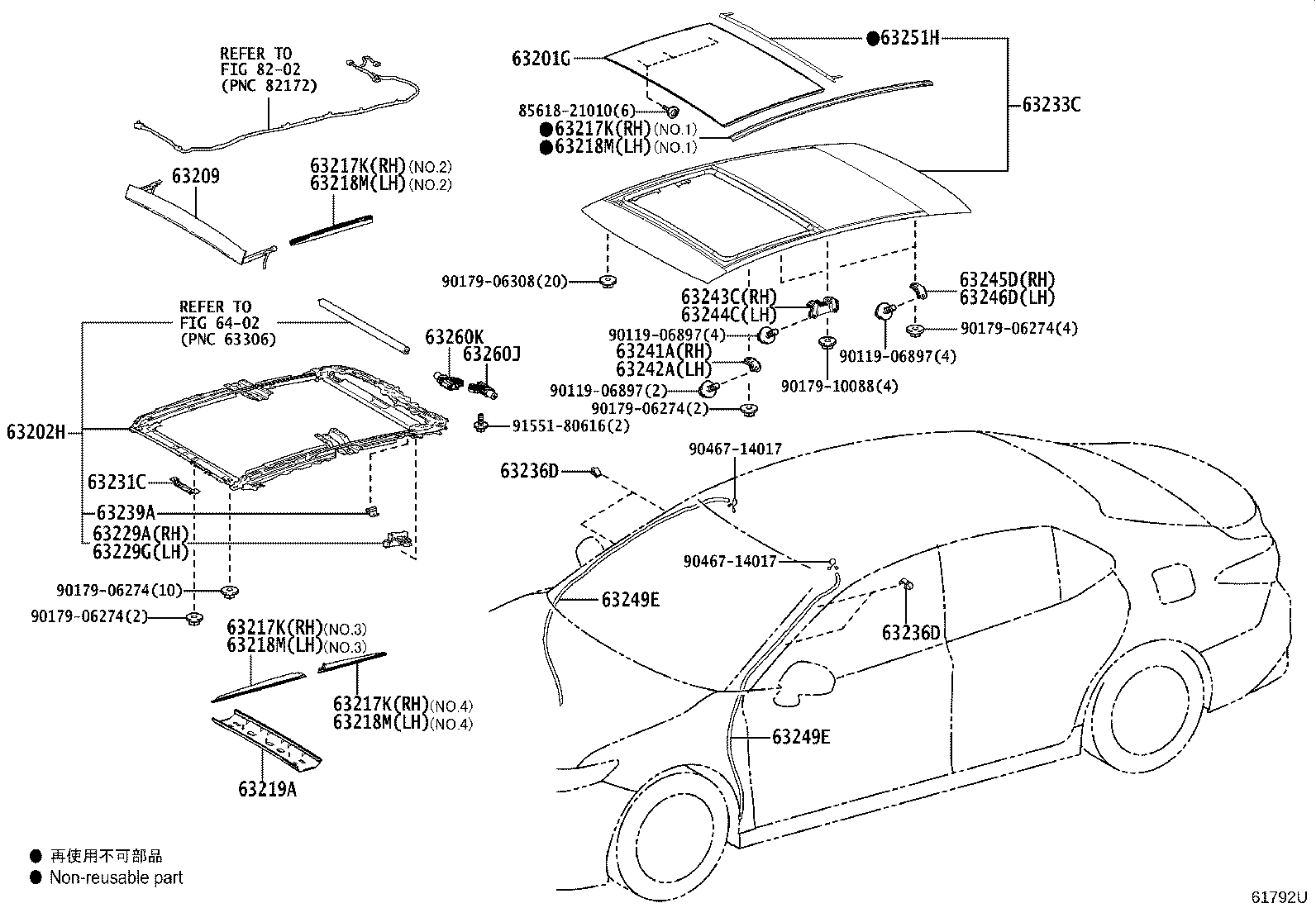

Exploded illustration 61792U 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (2 parts) 63249E — HOSE, SLIDING ROOF DRAIN (2 parts) 63249E — HOSE, SLIDING ROOF DRAIN (2 parts) 9046714017 — not listed in this catalogue 9046714017 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (3 parts) 63202H — RAIL SUB-ASSY, SLIDE ROOF (8 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (3 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (8 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (8 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (8 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (8 parts) 63219A — GARNISH, SLIDING ROOF, REAR (2 parts) 63231C — BRACKET, ROOM LAMP (2 parts) 63239A — SPACER, SLIDING ROOF HOUSING (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (3 parts) 63260K — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 8561821010 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017910088 — not listed in this catalogue 9017906308 — not listed in this catalogue 8202 — not listed in this catalogue 6402 — not listed in this catalogue 63233C — PANEL, SLIDING ROOF HOUSING (3 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (2 parts) 9155180616 — not listed in this catalogue 63229A — STOPPER, SLIDING ROOF SUNSHADE (2 parts) 63229G — STOPPER, SLIDING ROOF SUNSHADE (2 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (8 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (8 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (8 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (8 parts)
61792U · 30 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-33320 note Glass Sub-assy, Sliding Roof
2017-06 → 2020-04 ended
AXVH70 G,WS ¥48,300
63201-33321 note Glass Sub-assy, Sliding Roof
2020-04 → 2021-01 ended
AXVH70 G,WS ¥36,500
63201-33321 note Glass Sub-assy, Sliding Roof
2021-02 → —
AXVH70 G,WS ¥36,500
63202H — Rail Sub-assy, Slide Roof
63202-33150-B0 note Rail Sub-assy, Slide Roof
2017-06 → 2020-04 ended
AXVH70 G,WS ¥64,800
63202-33150-E0 note Rail Sub-assy, Slide Roof
2017-06 → 2020-04 ended
AXVH70 G ¥64,800
63202-33151-B0 note Rail Sub-assy, Slide Roof
2020-04 → 2021-01 ended
AXVH70 G ¥54,100
63202-33151-B0 note Rail Sub-assy, Slide Roof
2020-04 → 2021-01 ended
AXVH70 WS ¥54,100
63202-33151-E0 note Rail Sub-assy, Slide Roof
2020-04 → 2021-01 ended
AXVH70 G ¥54,100
63202-33151-B0 note Rail Sub-assy, Slide Roof
2021-02 → —
AXVH70 G ¥54,100
63202-33151-B0 note Rail Sub-assy, Slide Roof
2021-02 → —
AXVH70 WS ¥54,100
63202-33151-E0 note Rail Sub-assy, Slide Roof
2021-02 → —
AXVH70 G ¥54,100
63209 — Panel Sub-assy, Roof Wind Deflector
63209-33180 note Panel Sub-assy, Roof Wind Deflector
2017-06 → 2021-01 ended
AXVH70 G,WS ¥13,100
63209-33180 note Panel Sub-assy, Roof Wind Deflector
2021-02 → 2021-09 ended
AXVH70 G,WS ¥13,100
63209-33181 note Panel Sub-assy, Roof Wind Deflector
2021-10 → —
AXVH70 G,WS ¥11,900
63217K — Garnish, Sliding Roof Side, RH
63217-33130 note Garnish, Sliding Roof Side, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,340
63217-33140 note Garnish, Sliding Roof Side, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥940
63217-33150 note Garnish, Sliding Roof Side, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥5,500
63217-33160 note Garnish, Sliding Roof Side, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,190
63217-33130 note Garnish, Sliding Roof Side, RH
2021-02 → —
AXVH70 G,WS ¥1,340
63217-33140 note Garnish, Sliding Roof Side, RH
2021-02 → —
AXVH70 G,WS ¥940
63217-33150 note Garnish, Sliding Roof Side, RH
2021-02 → —
AXVH70 G,WS ¥5,500
63217-33160 note Garnish, Sliding Roof Side, RH
2021-02 → —
AXVH70 G,WS ¥1,190
63218M — Garnish, Sliding Roof Side, LH
63218-33100 note Garnish, Sliding Roof Side, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,340
63218-33110 note Garnish, Sliding Roof Side, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥940
63218-33120 note Garnish, Sliding Roof Side, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥5,500
63218-33130 note Garnish, Sliding Roof Side, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,190
63218-33100 note Garnish, Sliding Roof Side, LH
2021-02 → —
AXVH70 G,WS ¥1,340
63218-33110 note Garnish, Sliding Roof Side, LH
2021-02 → —
AXVH70 G,WS ¥940
63218-33120 note Garnish, Sliding Roof Side, LH
2021-02 → —
AXVH70 G,WS ¥5,500
63218-33130 note Garnish, Sliding Roof Side, LH
2021-02 → —
AXVH70 G,WS ¥1,190
63219A — Garnish, Sliding Roof, Rear
63219-33050 note Garnish, Sliding Roof, Rear
2017-06 → 2021-01 ended
AXVH70 G,WS ¥6,500
63219-33050 note Garnish, Sliding Roof, Rear
2021-02 → —
AXVH70 G,WS ¥6,500
63229A — Stopper, Sliding Roof Sunshade
63229-33050 note Stopper, Sliding Roof Sunshade
2017-06 → 2021-01 ended
AXVH70 G,WS ¥330
63229-33050 note Stopper, Sliding Roof Sunshade
2021-02 → —
AXVH70 G,WS ¥330
63229G — Stopper, Sliding Roof Sunshade
63229-33060 note Stopper, Sliding Roof Sunshade
2017-06 → 2021-01 ended
AXVH70 G,WS ¥330
63229-33060 note Stopper, Sliding Roof Sunshade
2021-02 → —
AXVH70 G,WS ¥330
63231C — Bracket, Room Lamp
63231-33110 note Bracket, Room Lamp
2017-06 → 2021-01 ended
AXVH70 G,WS ¥620
63231-33110 note Bracket, Room Lamp
2021-02 → —
AXVH70 G,WS ¥620
63233C — Panel, Sliding Roof Housing
63233-33110 note Panel, Sliding Roof Housing
2019-10 → 2021-01 ended
AXVH70 G,WS ¥88,500
63233-33150 note Panel, Sliding Roof Housing
2017-06 → 2019-10 ended
AXVH70 G,WS ¥117,000
63233-33110 note Panel, Sliding Roof Housing
2021-02 → —
AXVH70 G,WS ¥88,500
63236D — Clamp, Sliding Roof Drain Hose
63236-42010 note Clamp, Sliding Roof Drain Hose
2017-06 → 2021-01 ended
AXVH70 G,WS ¥80
63236-42010 note Clamp, Sliding Roof Drain Hose
2021-02 → —
AXVH70 G,WS ¥80
63239A — Spacer, Sliding Roof Housing
63239-33060 note Spacer, Sliding Roof Housing
2017-06 → 2021-01 ended
AXVH70 G,WS ¥110
63239-33060 note Spacer, Sliding Roof Housing
2021-02 → —
AXVH70 G,WS ¥110
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-33140 note Bracket, Sliding Roof Housing Front Mounting, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥300
63241-33140 note Bracket, Sliding Roof Housing Front Mounting, RH
2021-02 → —
AXVH70 G,WS ¥300
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-33140 note Bracket, Sliding Roof Housing Front Mounting, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥300
63241-33140 note Bracket, Sliding Roof Housing Front Mounting, LH
2021-02 → —
AXVH70 G,WS ¥300
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-33160 note Bracket, Sliding Roof Housing Center Mounting, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,430
63243-33160 note Bracket, Sliding Roof Housing Center Mounting, RH
2021-02 → —
AXVH70 G,WS ¥1,430
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-33130 note Bracket, Sliding Roof Housing Center Mounting, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥1,430
63244-33130 note Bracket, Sliding Roof Housing Center Mounting, LH
2021-02 → —
AXVH70 G,WS ¥1,430
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-33110 note Bracket, Sliding Roof Housing Rear Mounting, RH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥370
63245-33110 note Bracket, Sliding Roof Housing Rear Mounting, RH
2021-02 → —
AXVH70 G,WS ¥370
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63245-33110 note Bracket, Sliding Roof Housing Rear Mounting, LH
2017-06 → 2021-01 ended
AXVH70 G,WS ¥370
63245-33110 note Bracket, Sliding Roof Housing Rear Mounting, LH
2021-02 → —
AXVH70 G,WS ¥370
63249E — Hose, Sliding Roof Drain
63249-33210 note Hose, Sliding Roof Drain
2017-06 → 2021-01 ended
AXVH70 G,WS ¥810
63249-33210 note Hose, Sliding Roof Drain
2021-02 → —
AXVH70 G,WS ¥810
63251H — Weatherstrip, Sliding Roof
63251-33080 note Weatherstrip, Sliding Roof
2017-06 → 2021-01 ended
AXVH70 G,WS ¥10,700
63251-33080 note Weatherstrip, Sliding Roof
2021-02 → —
AXVH70 G,WS ¥10,700
63260J — Gear Assy, Sliding Roof Drive
63260-33170 note Gear Assy, Sliding Roof Drive
2017-06 → 2017-07 ended
AXVH70 G ¥39,100
63260-33171 note Gear Assy, Sliding Roof Drive
2017-07 → 2021-01 ended
AXVH70 G,WS ¥32,500
63260-33171 note Gear Assy, Sliding Roof Drive
2021-02 → —
AXVH70 G,WS ¥32,500
63260K — Gear Assy, Sliding Roof Drive
63260-33180 note Gear Assy, Sliding Roof Drive
2017-06 → 2021-01 ended
AXVH70 G,WS ¥32,500
63260-33180 note Gear Assy, Sliding Roof Drive
2021-02 → —
AXVH70 G,WS ¥32,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
