Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 2 illustrations

Illustrations

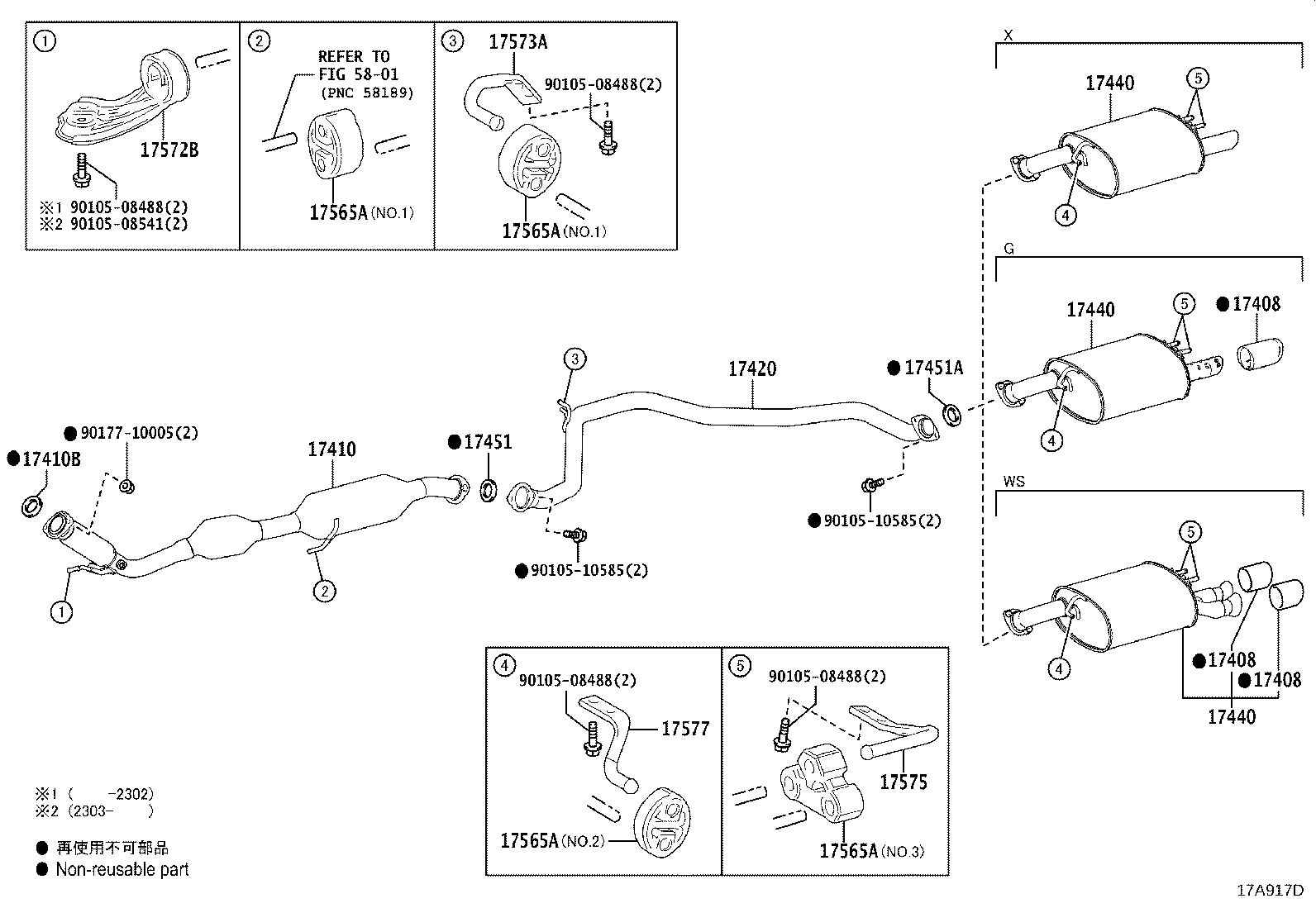

Figure 179648F 179648F 2017-06 → — Figure 17A917D 17A917D 2019-12 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
