Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

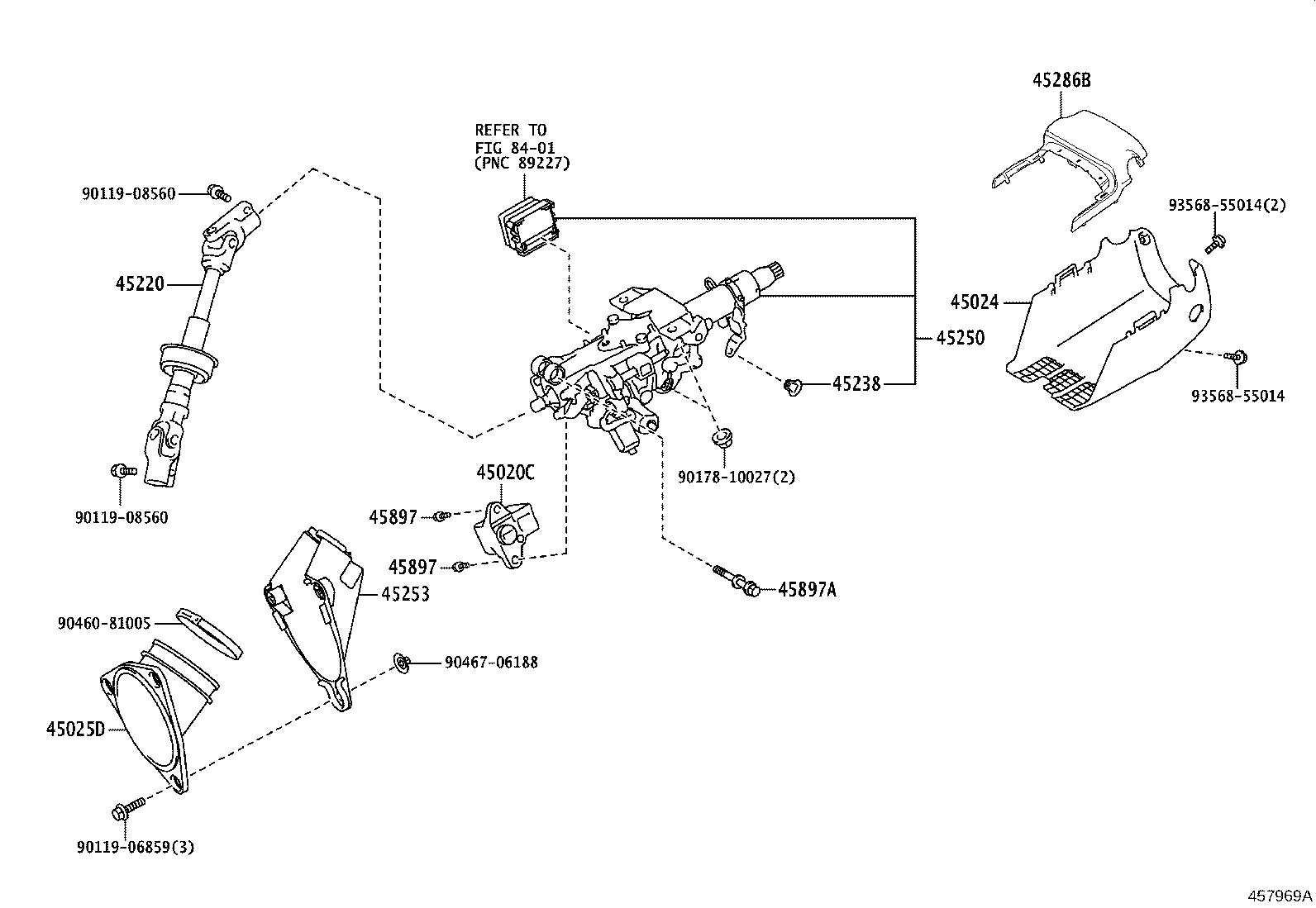

Figure 457191B 457191B 2017-06 → — Figure 457969A 457969A 2021-02 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
