Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 6 illustrations

Illustrations

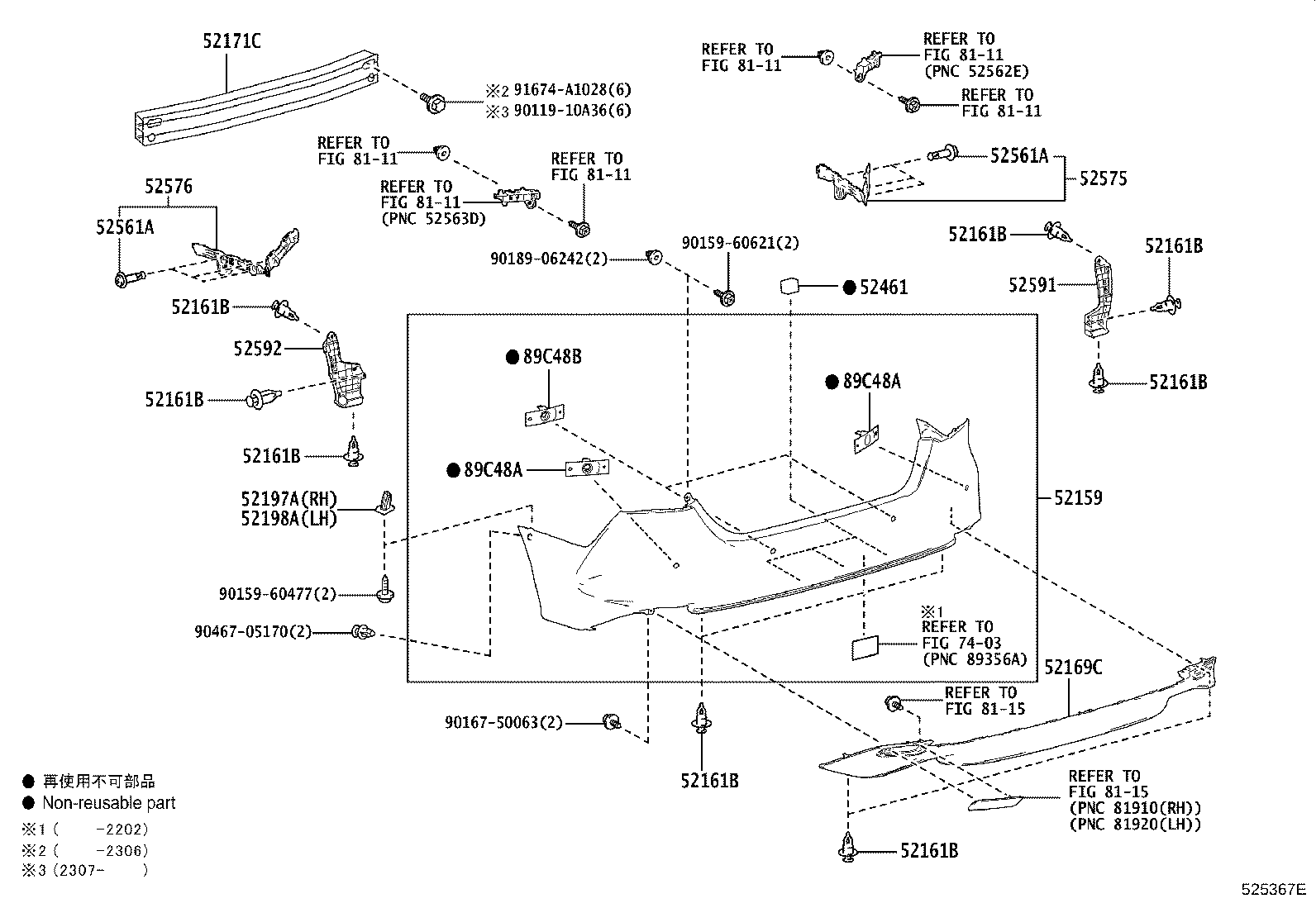

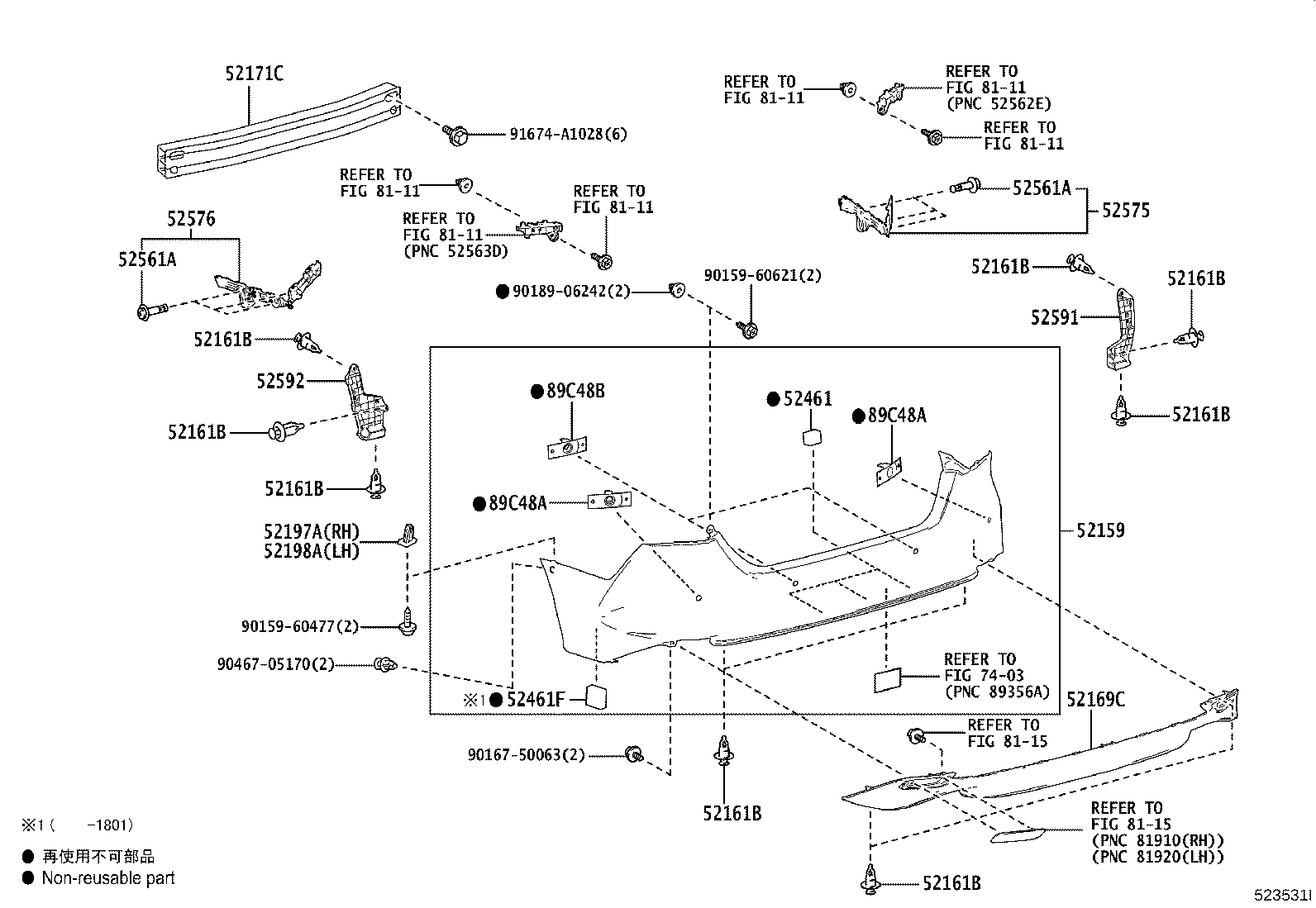

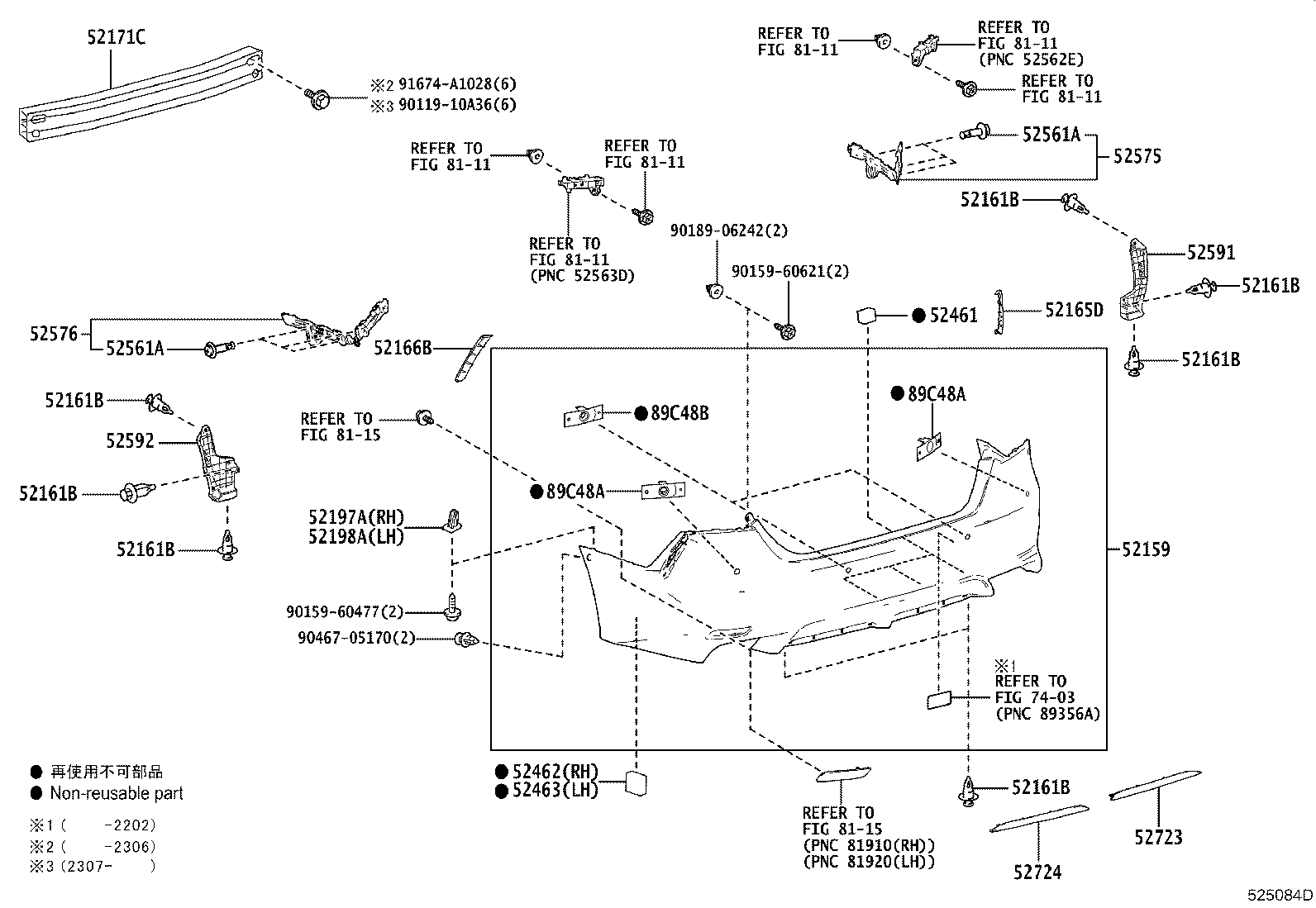

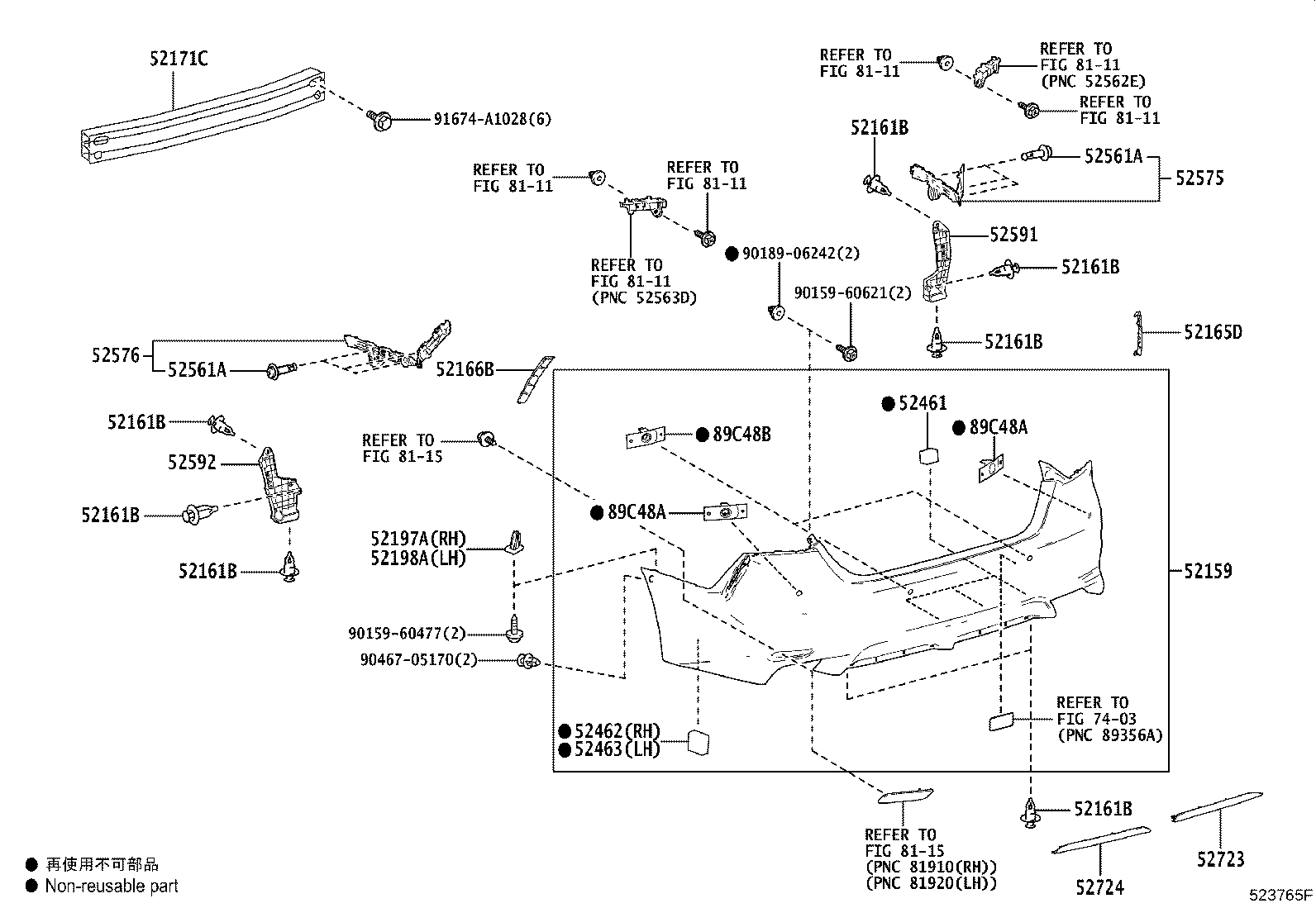

Figure 523532G 523532G 2017-06 → 2021-01 Figure 523531I 523531I 2017-06 → 2021-01 Figure 523531I 523531I 2018-08 → 2021-01 Figure 523765F 523765F 2018-08 → 2021-01 Figure 525367E 525367E 2021-02 → — Figure 525084E 525084E 2021-02 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52165D Extension, Rear Bumper Corner, RH
52166B Extension, Rear Bumper Corner, LH
52169C Cover, Rear Bumper, Lower
52171C Reinforcement, Rear Bumper
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52461 Pad, Rear Bumper, Center
52461F Pad, Rear Bumper
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52561A Clip(FOR REAR BUMPER RETAINER)
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
