Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02

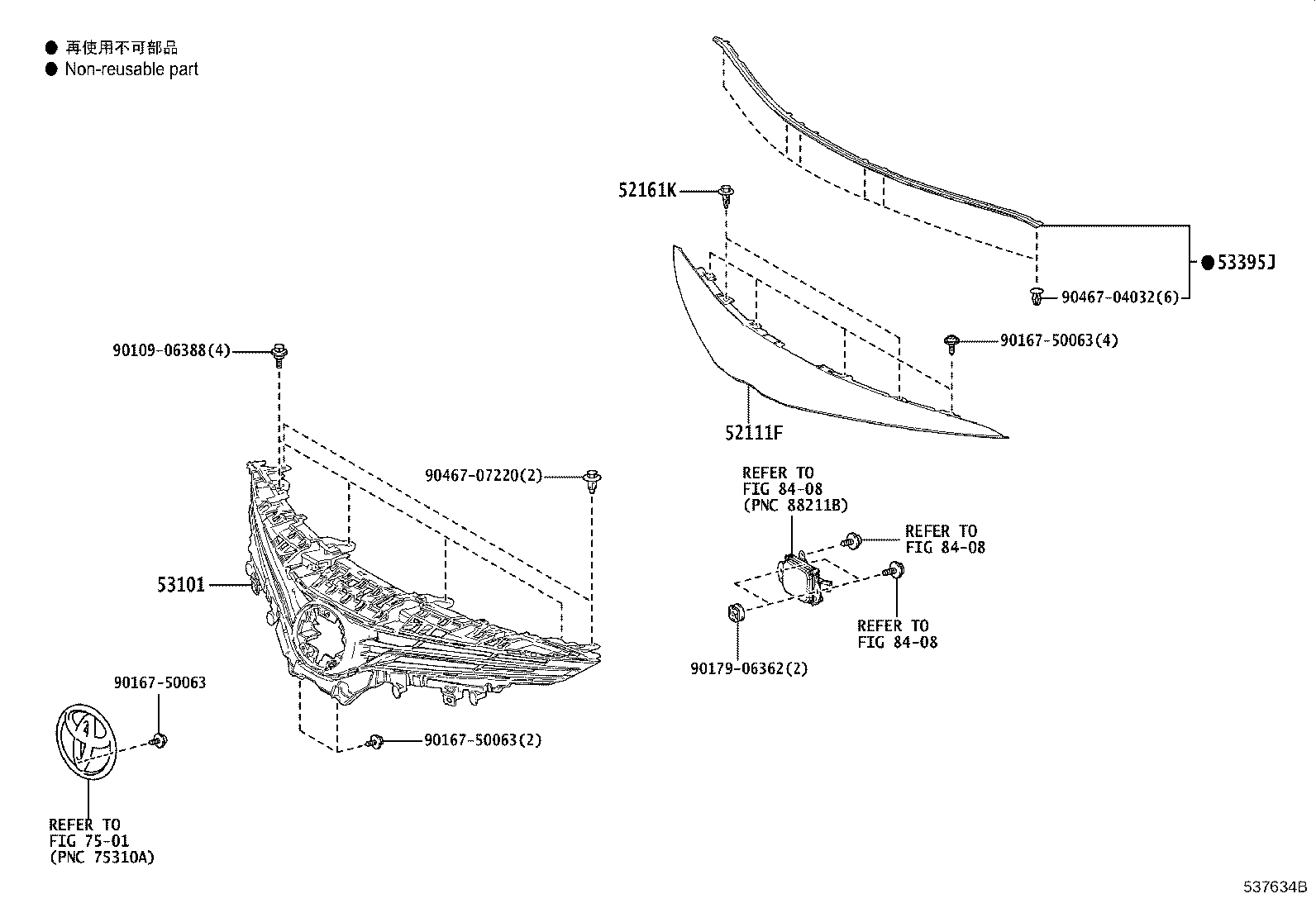

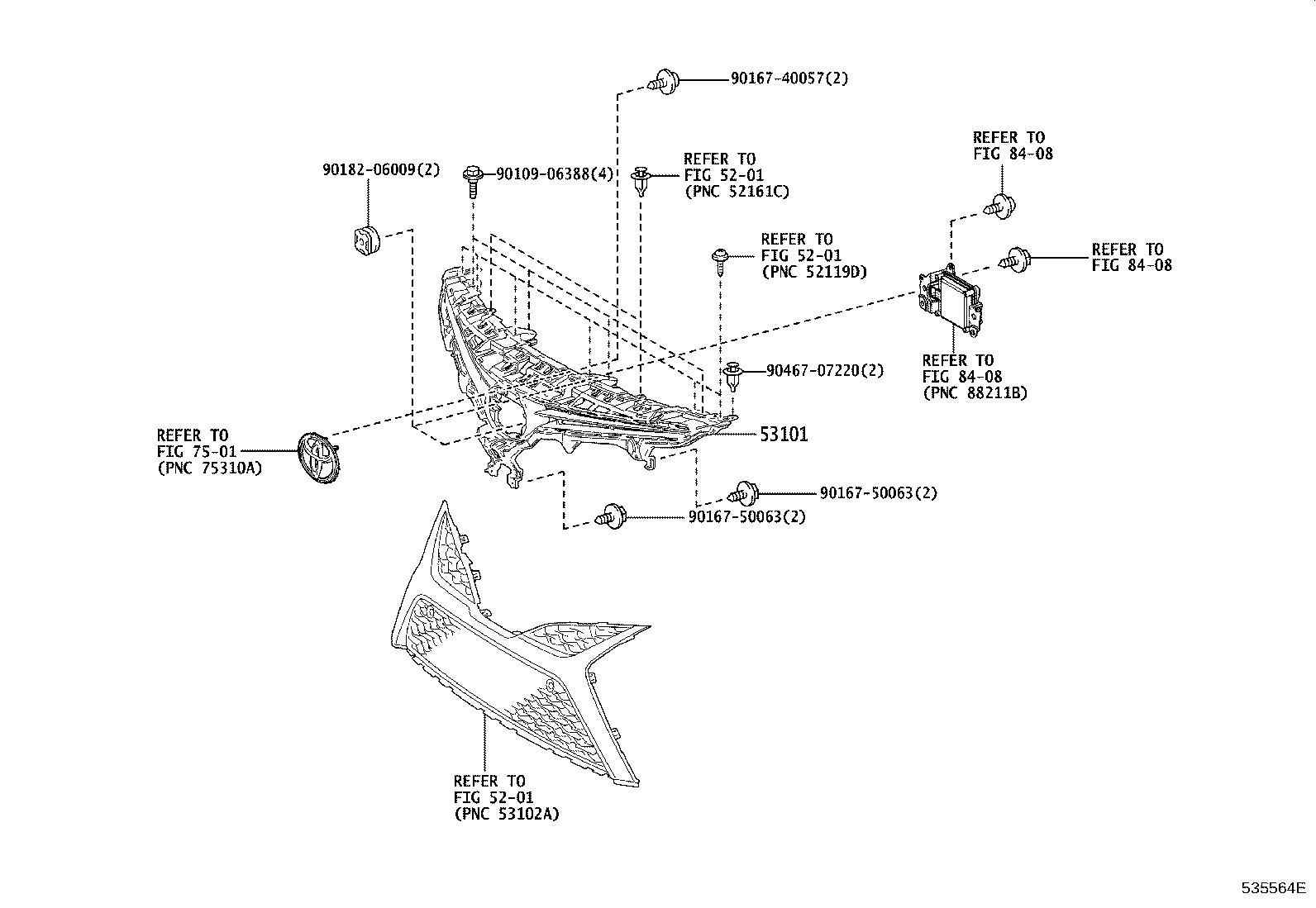

Radiator Grille
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52111F | Bar, Front Bumper, Center |
| 52161K | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
| 53395J | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
