Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

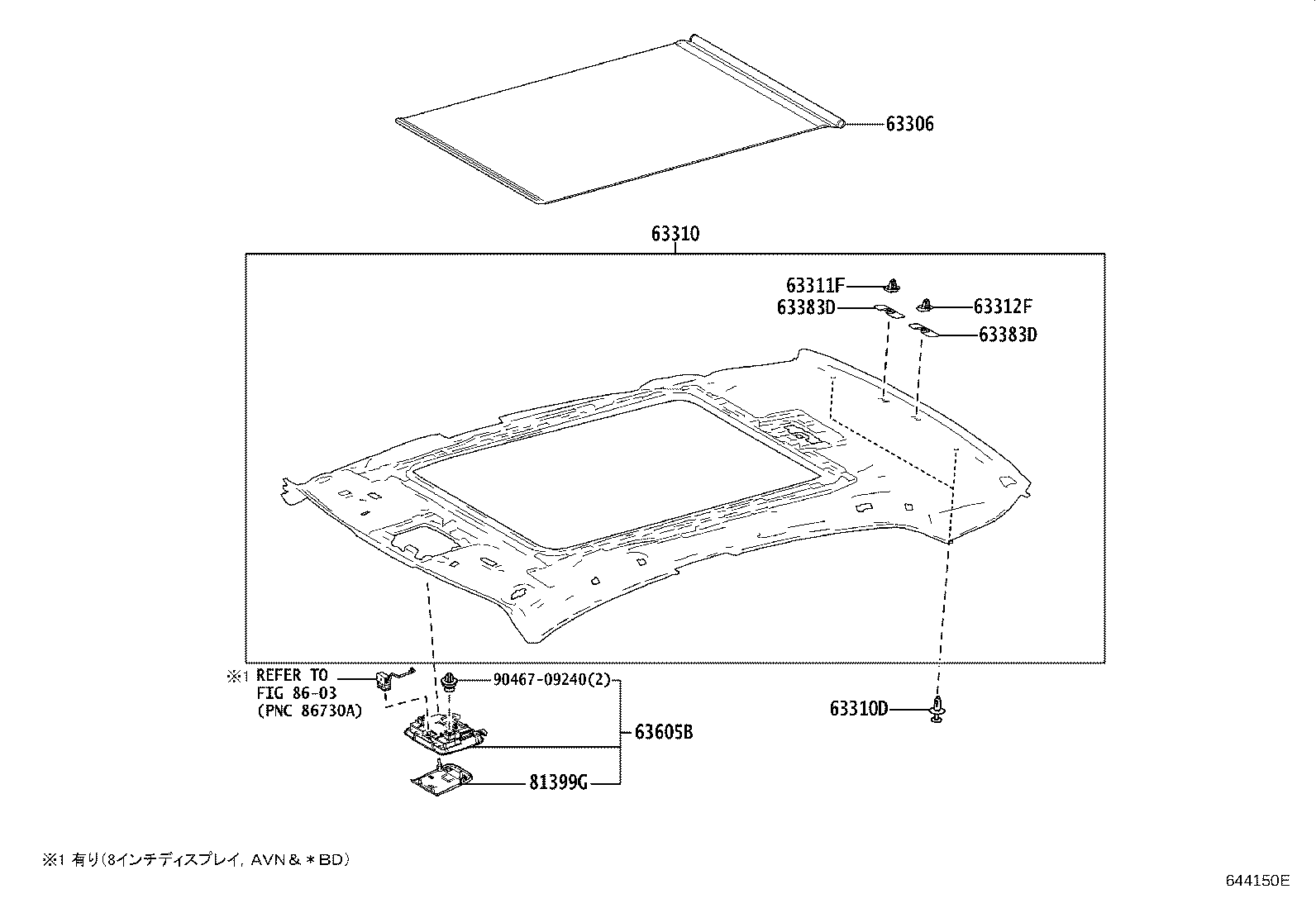

Figure 644149C 644149C 2017-06 → — Figure 644150E 644150E 2017-06 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63342A Silencer, Roof, NO.2
63344A Silencer, Roof, NO.4
63383D Retainer, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
63665C Mat, Roof Console Box
81399G Cover, Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
