Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02

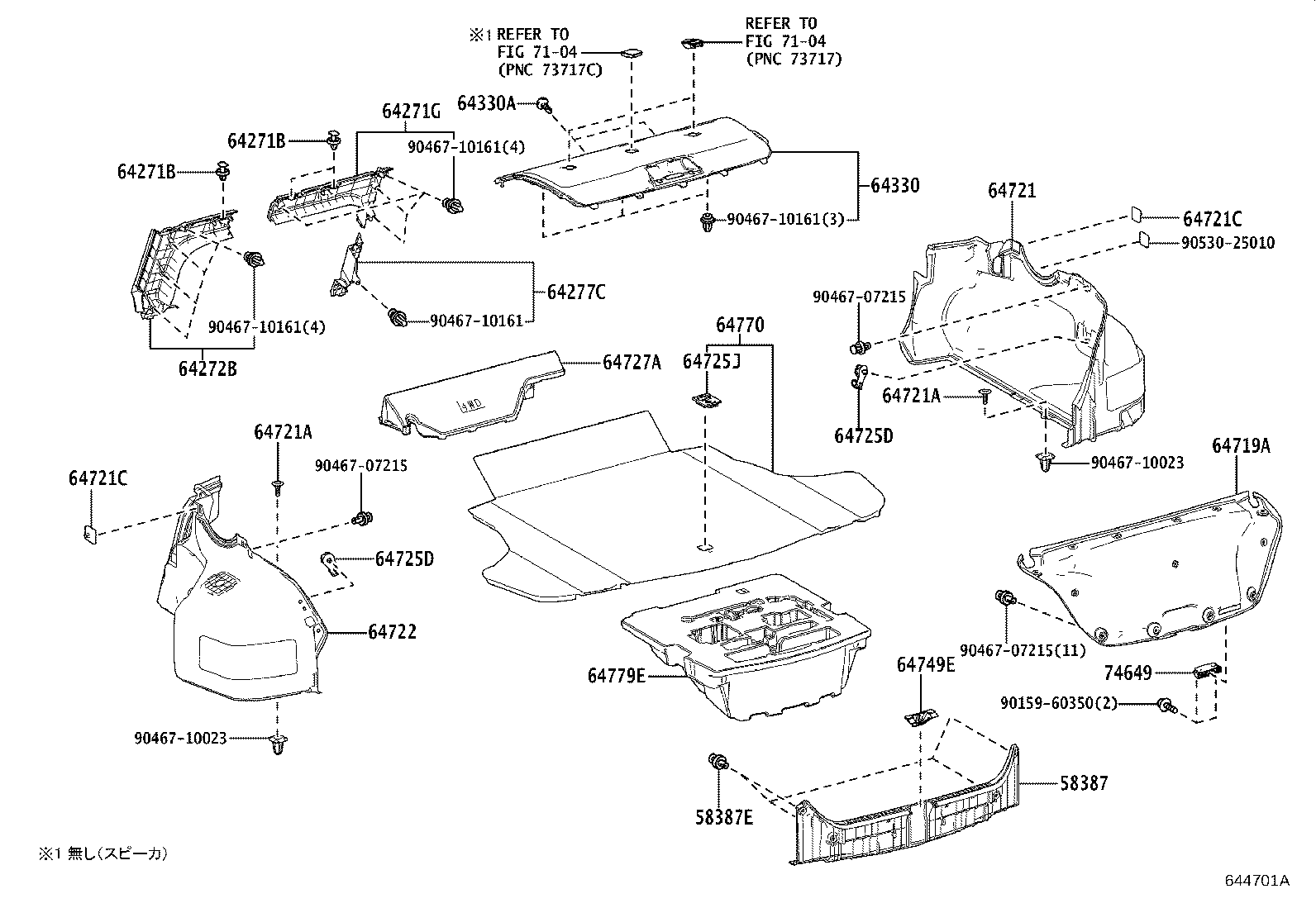

Package Tray Panel & Luggage Compartment Mat
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64277C | Cover, Room Partition, NO.2 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64749E | Cover, Luggage Compartment Door Striker |
| 64770 | Cover Assy, Spare Wheel |
| 64779E | Tray, Spare Wheel Cover |
| 74649 | Grip, Luggage Compartment Door Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
