Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02
Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

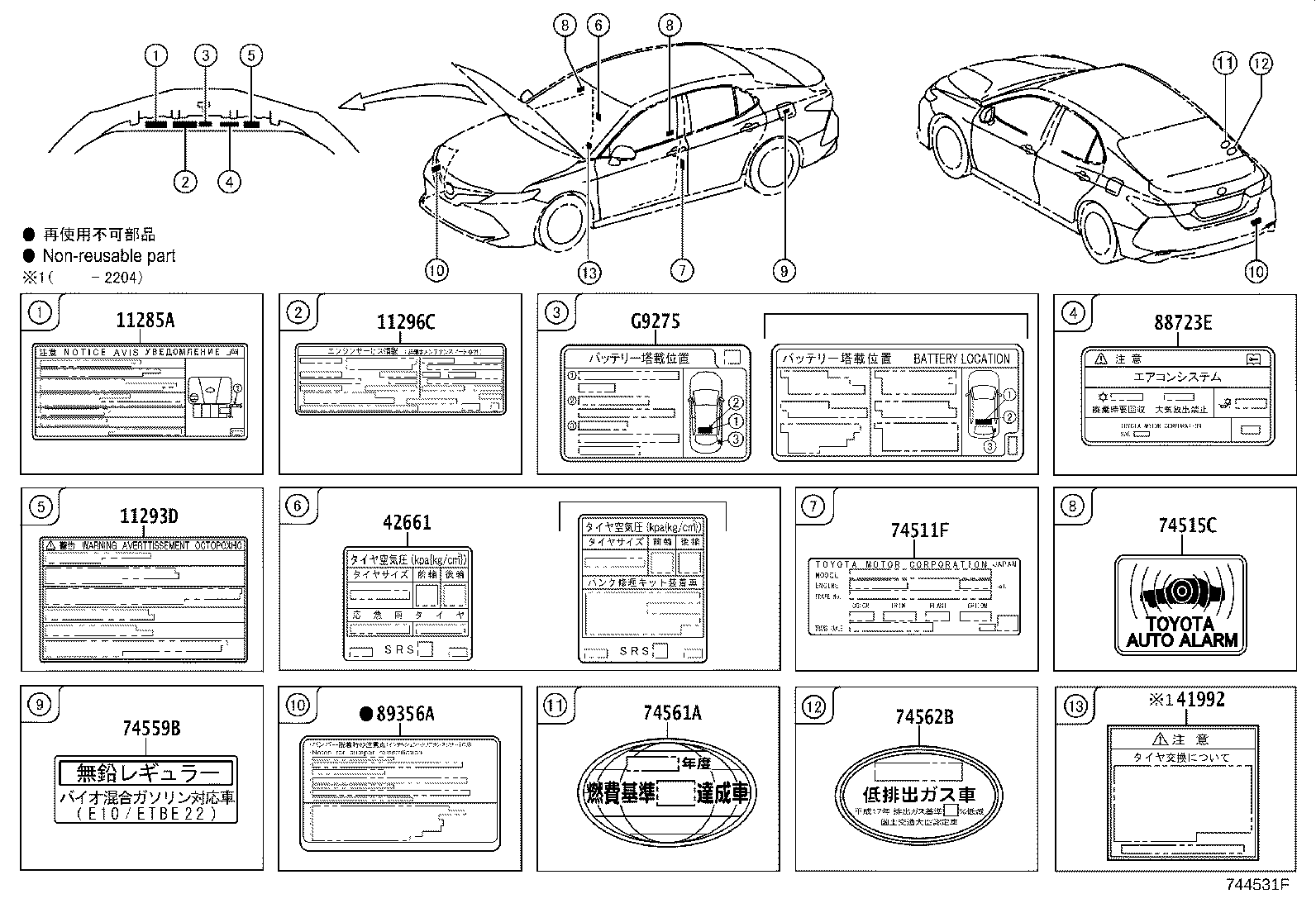

| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 42661 | Label, Tire Pressure Information |
| 42668 | Label, Compact Spare Tire Caution |

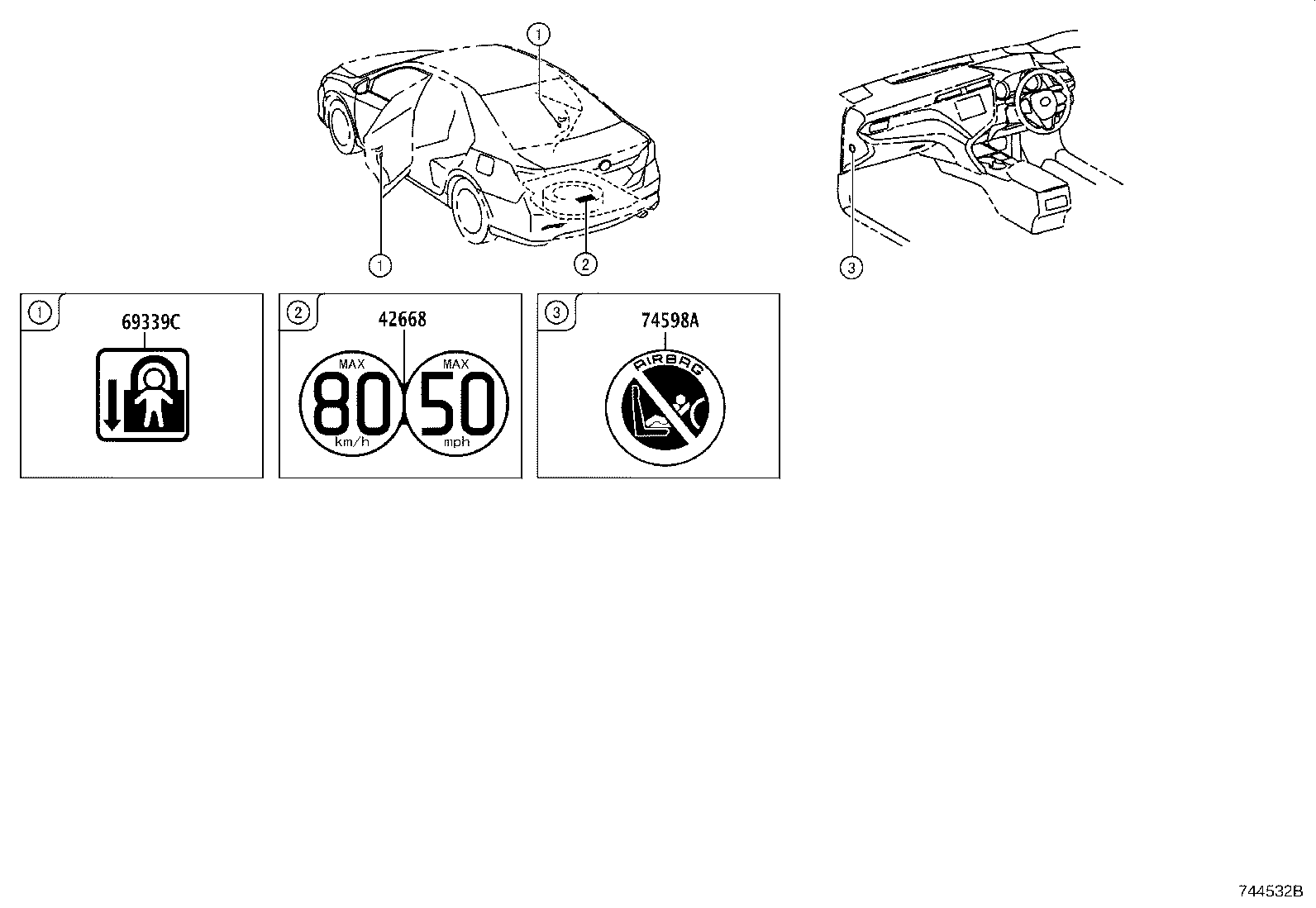

| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74598A | Label, Passenger Airbag Caution |
| 88723E | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
