Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02
Fuel Tank & Tube
58 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280N | Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2 |
| 23283B | Holder, Fuel Pressure Regulator |

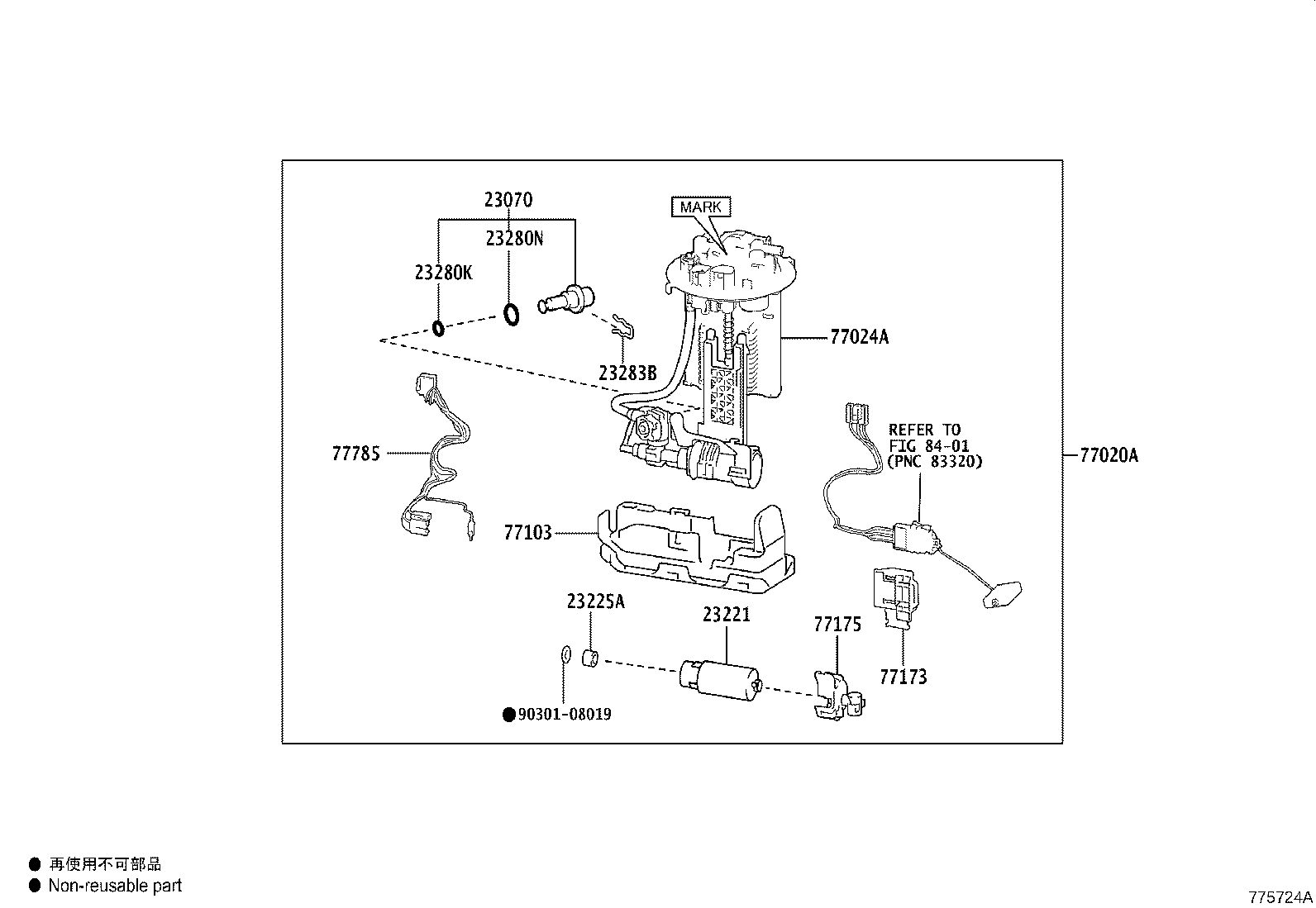

| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77030A | Lock Assy, Fuel Lid W/Motor |

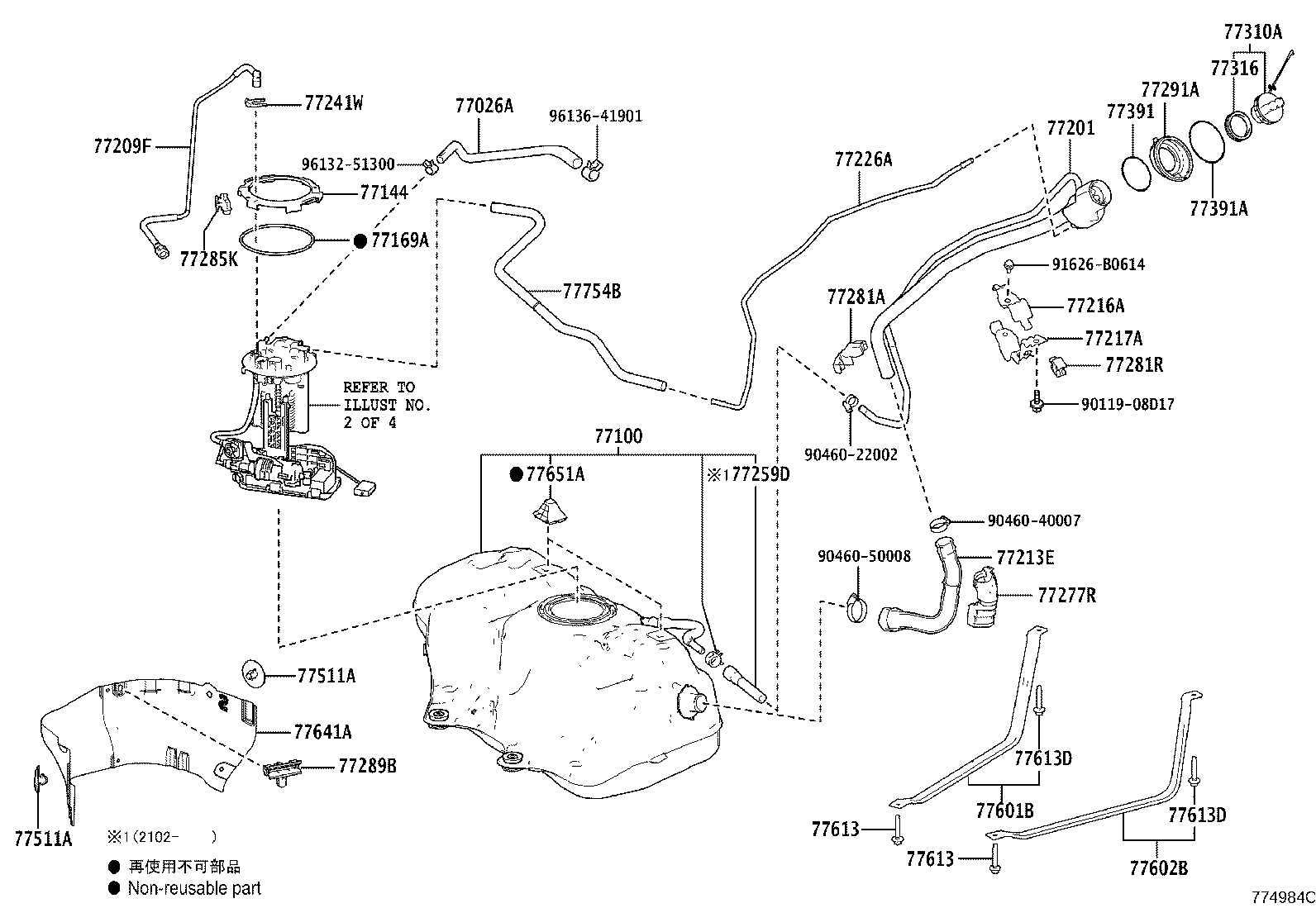

| 77100 | Tank Assy, Fuel |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77173 | Bracket, Fuel Gage |
| 77175 | Support, Fuel Suction, NO.2 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77241W | Clip, Tube Joint |

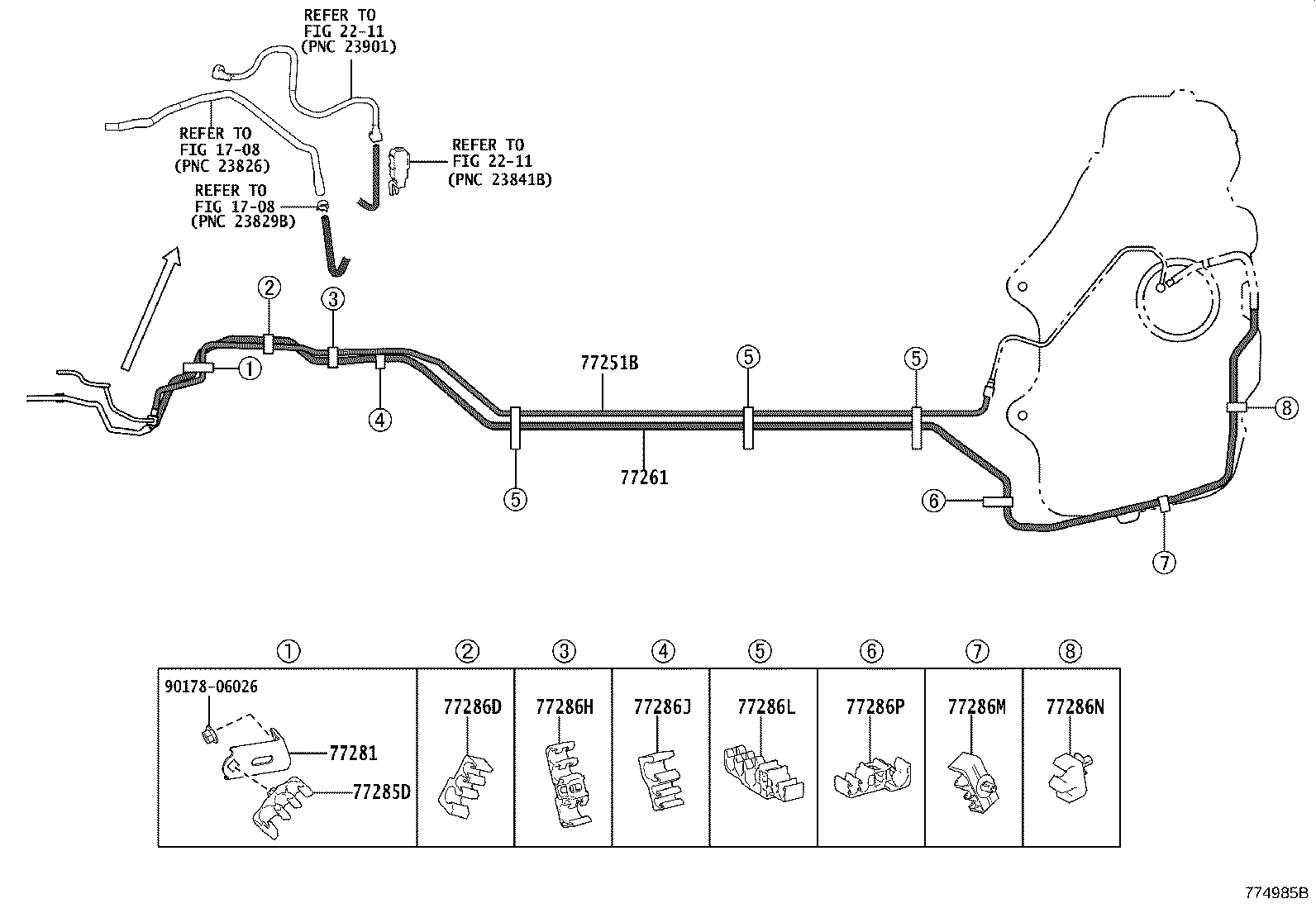

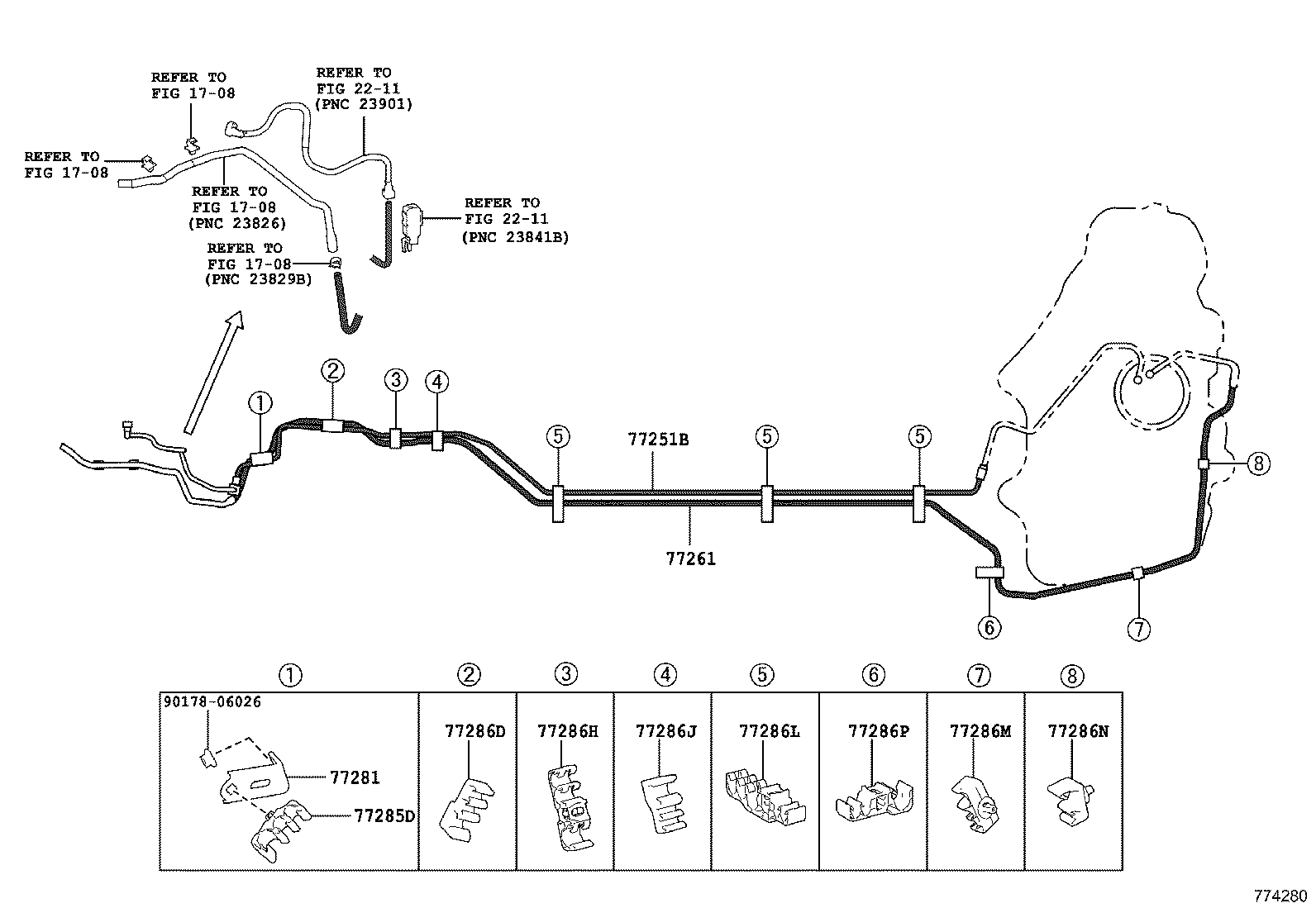

| 77251B | Tube, Fuel Main |
| 77259D | Hose, Fuel, NO.1 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281R | Clamp, Fuel Filler Pipe, NO.2 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |

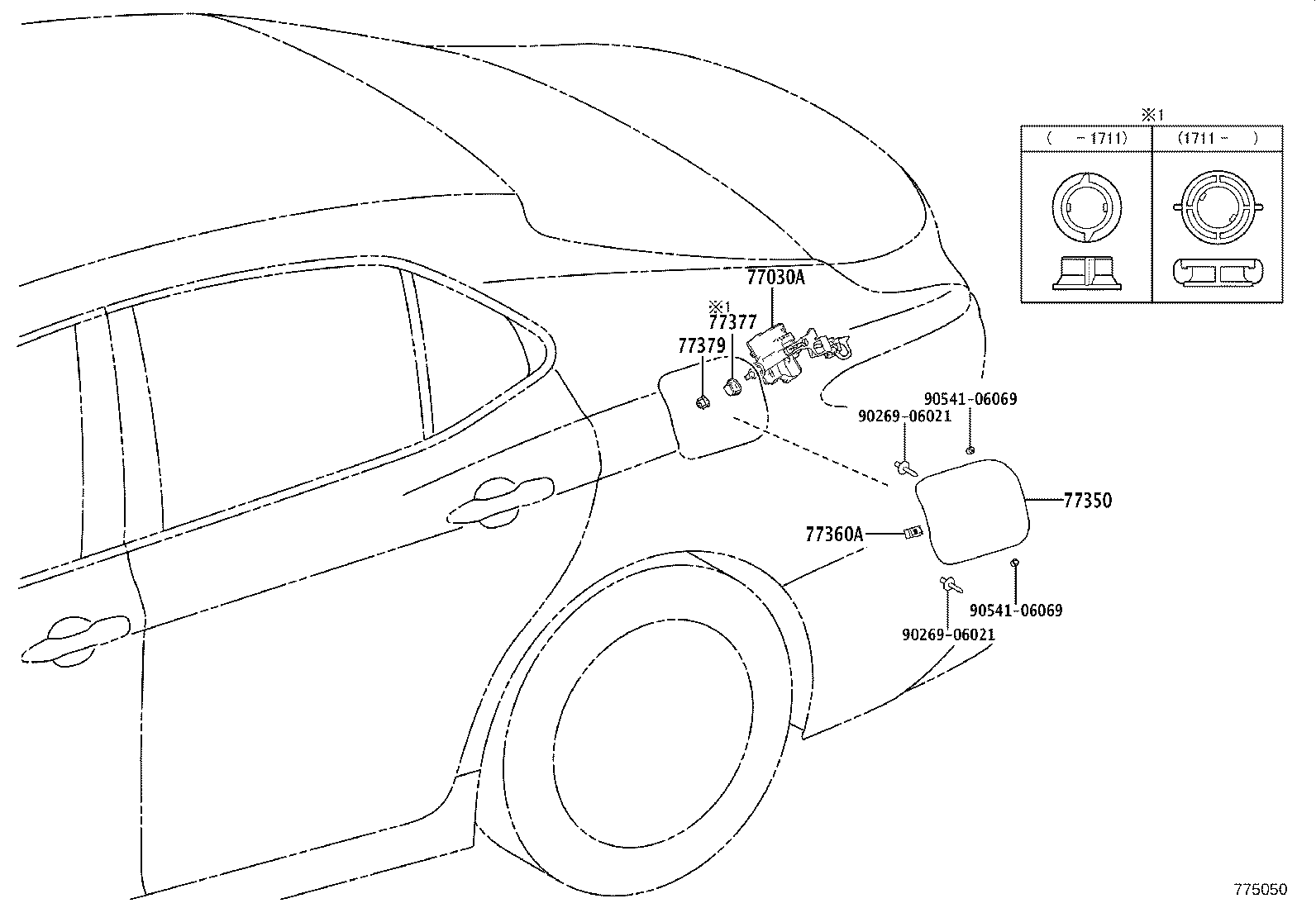

| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77379 | Spacer, Fuel Inlet Box Cover, NO.2 |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77511A | Bracket, Fuel Tank |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77613 | Bolt, Fuel Tank Band Set |
| 77613D | Bolt, Fuel Tank Band Set, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77754B | Hose, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
