Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 3 illustrations

Illustrations

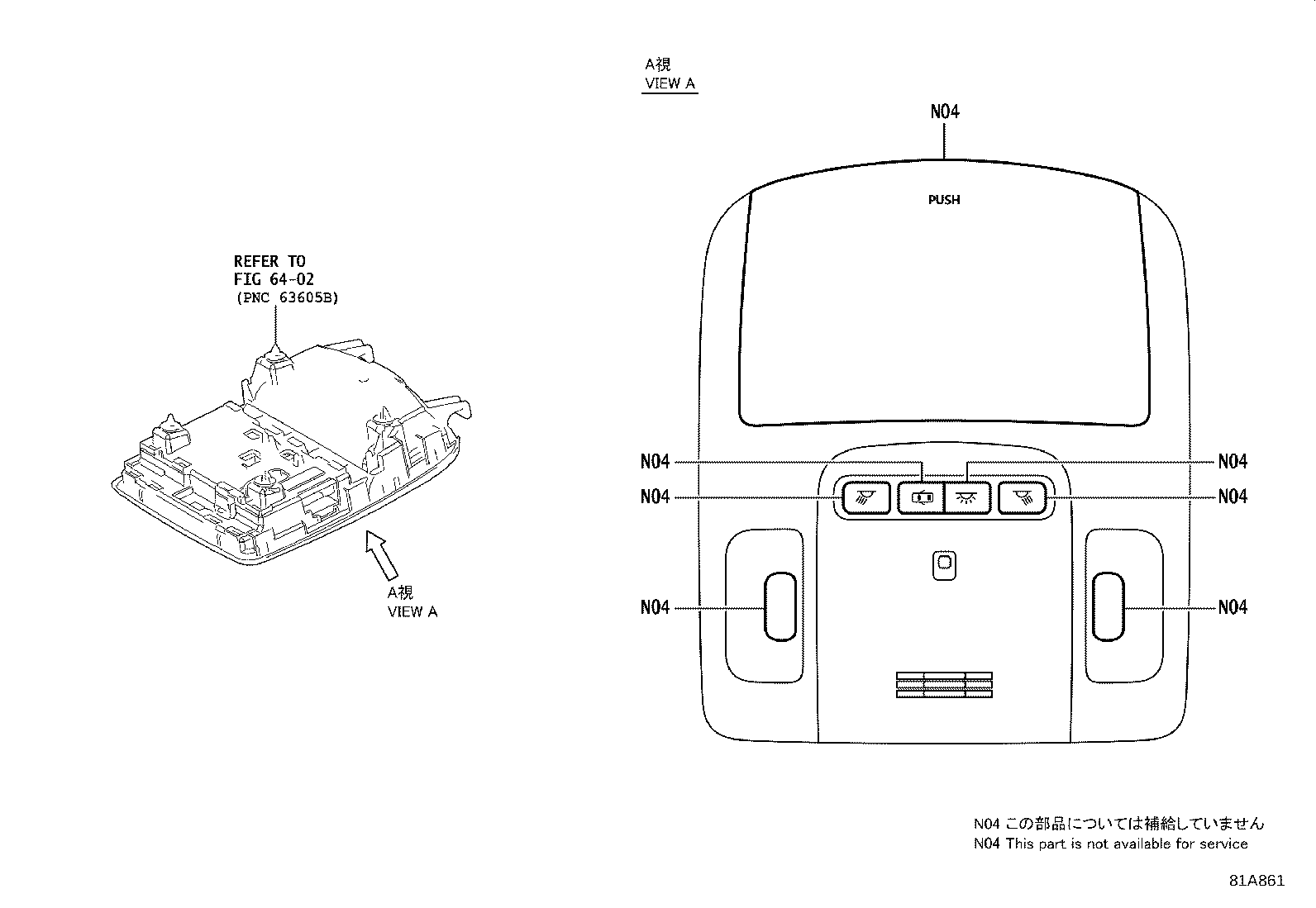

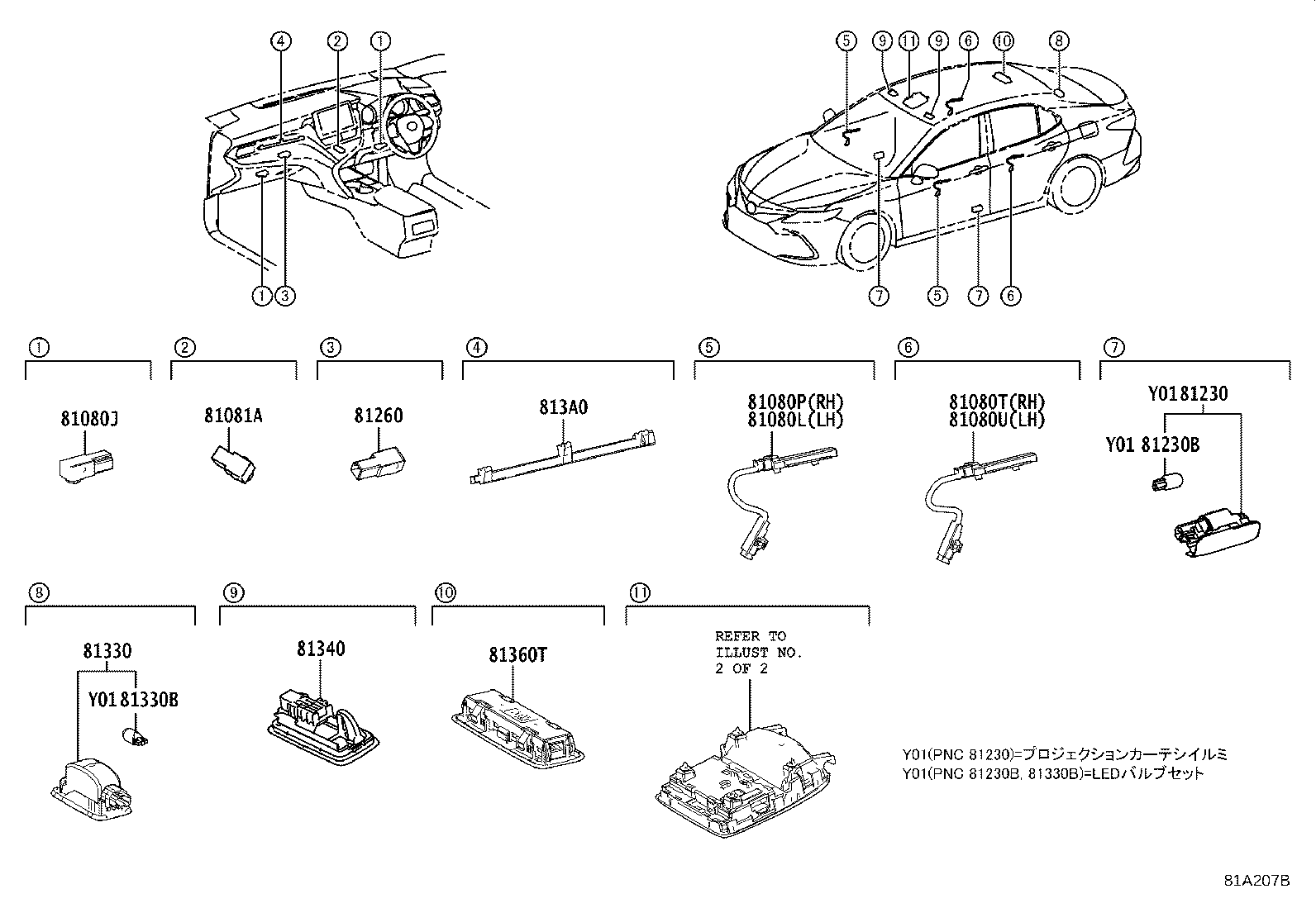

Figure 818358D 818358D 2017-06 → 2021-02 Figure 81A207B 81A207B 2021-02 → — Figure 81A861 81A861 2017-06 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81081A Lamp Sub-assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81260 Lamp Assy, Glove Box
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
813A0 Lamp Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
