Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02
Wiring & Clamp
90 part groups · 11 illustrations

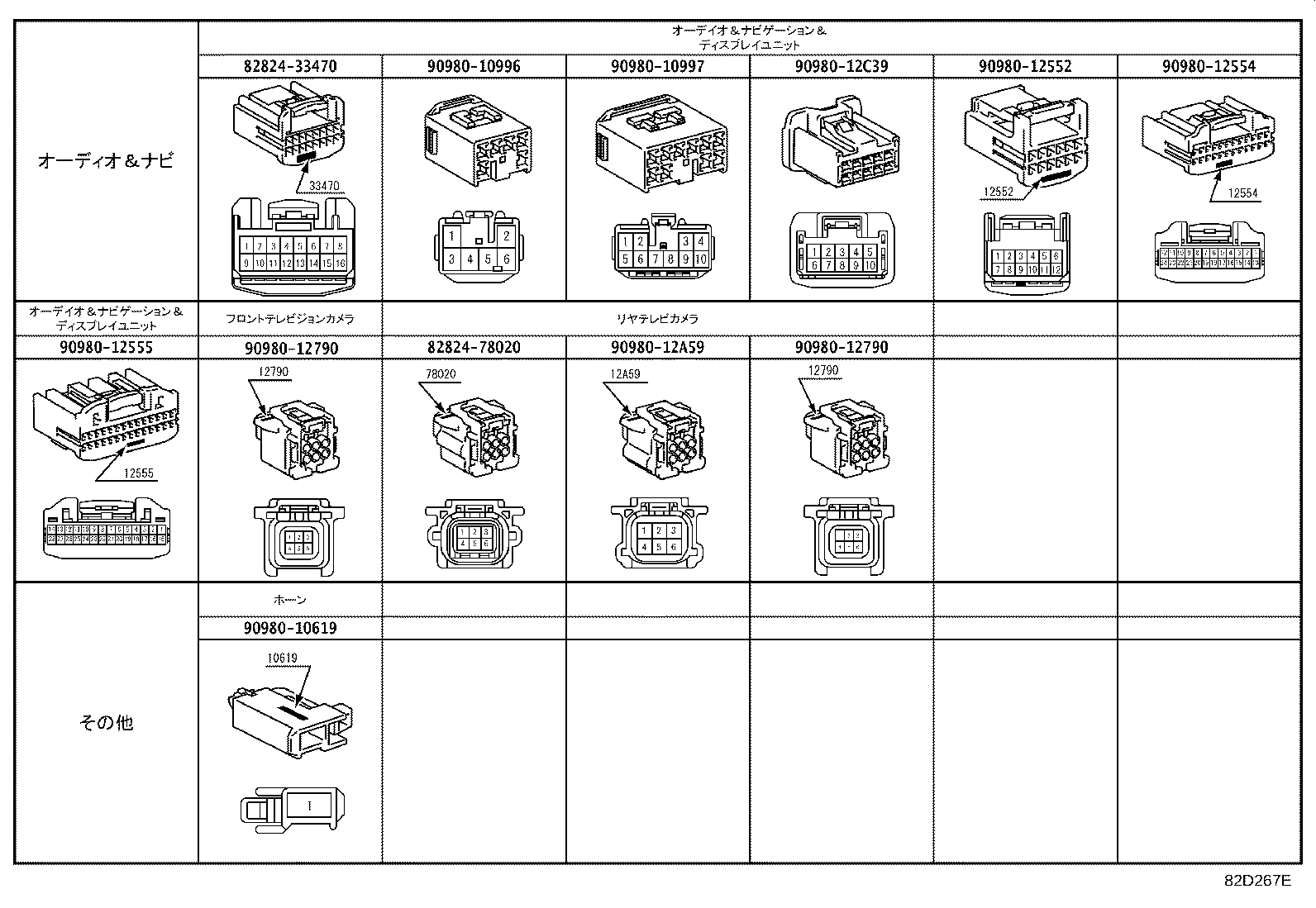

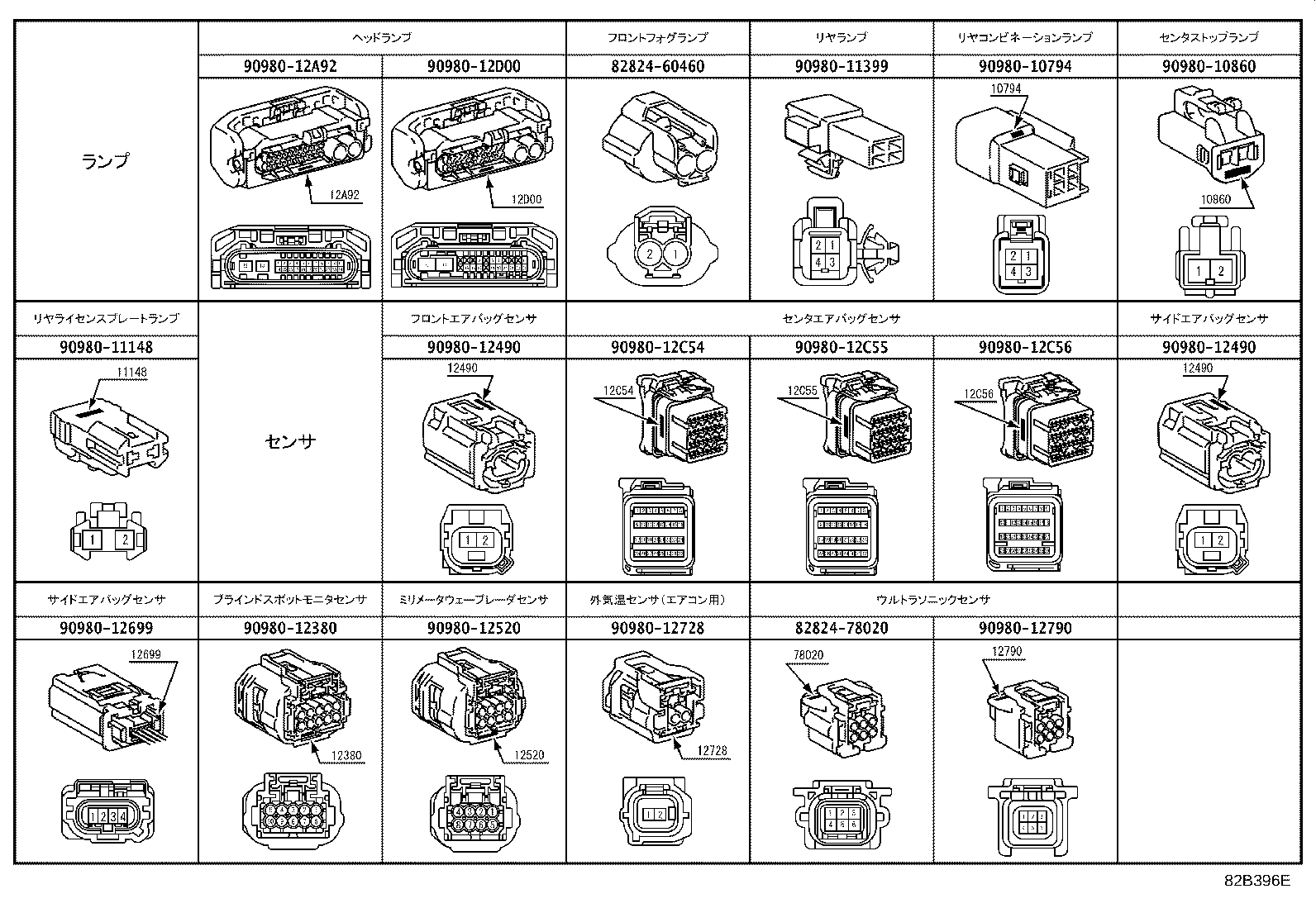

Illustrations
Part groups
| PNC | Description |
|---|---|
| 82090A | Wire Assy, Extension |

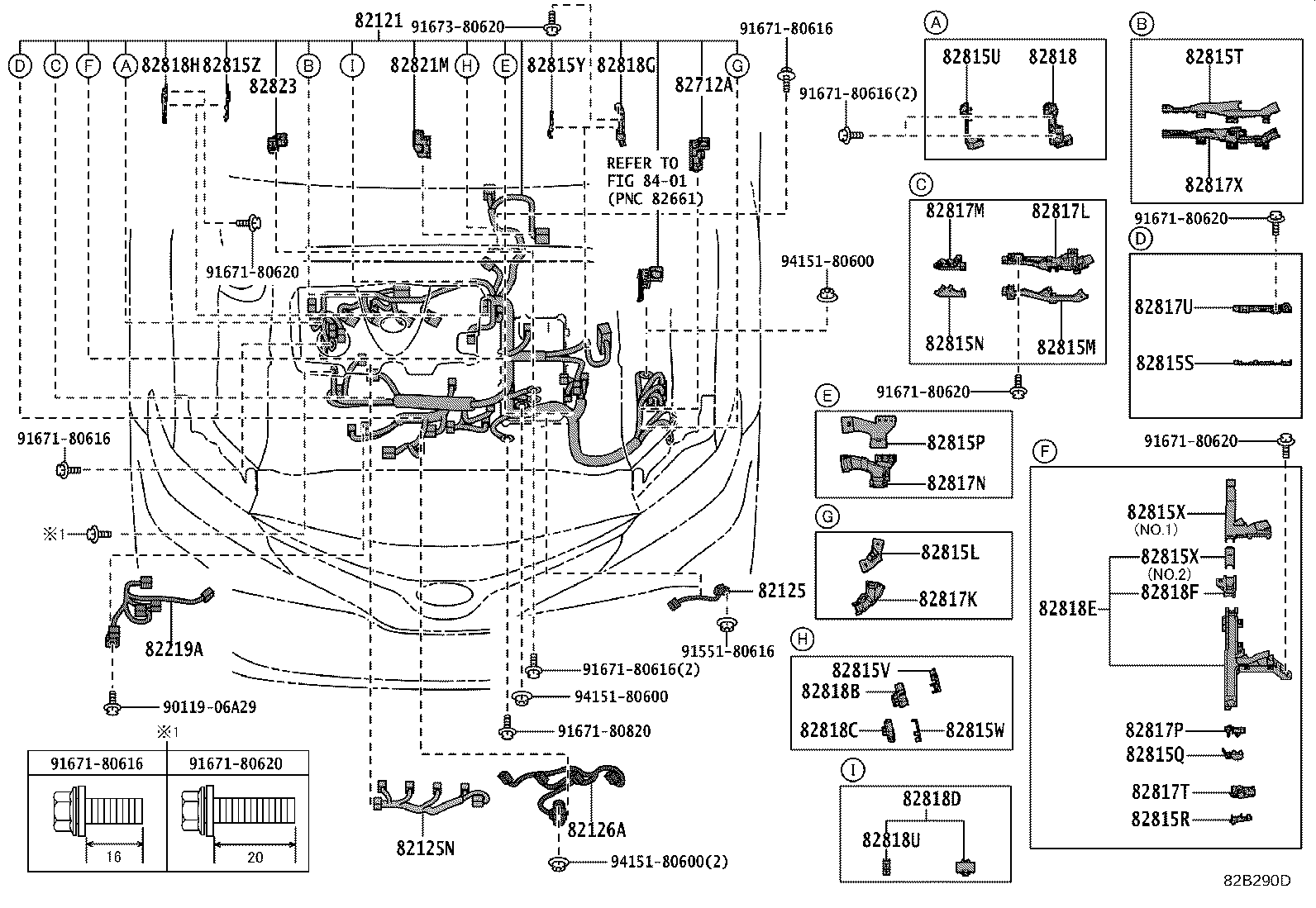

| 82111 | Wire, Engine Room Main |
| 82114 | Wire, Engine Room, NO.4 |
| 82121 | Wire, Engine |
| 82125 | Wire, Transmission |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |

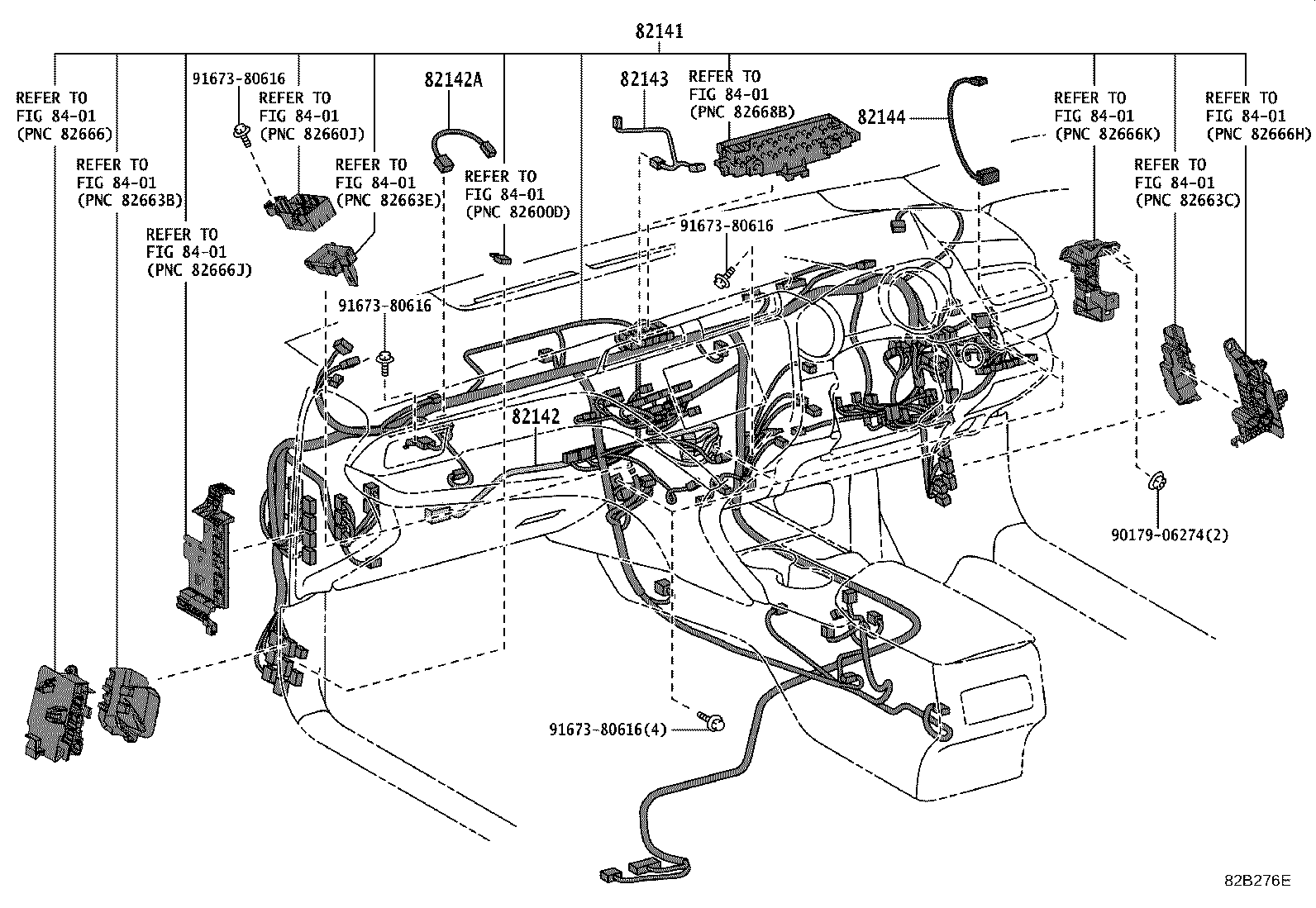

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |

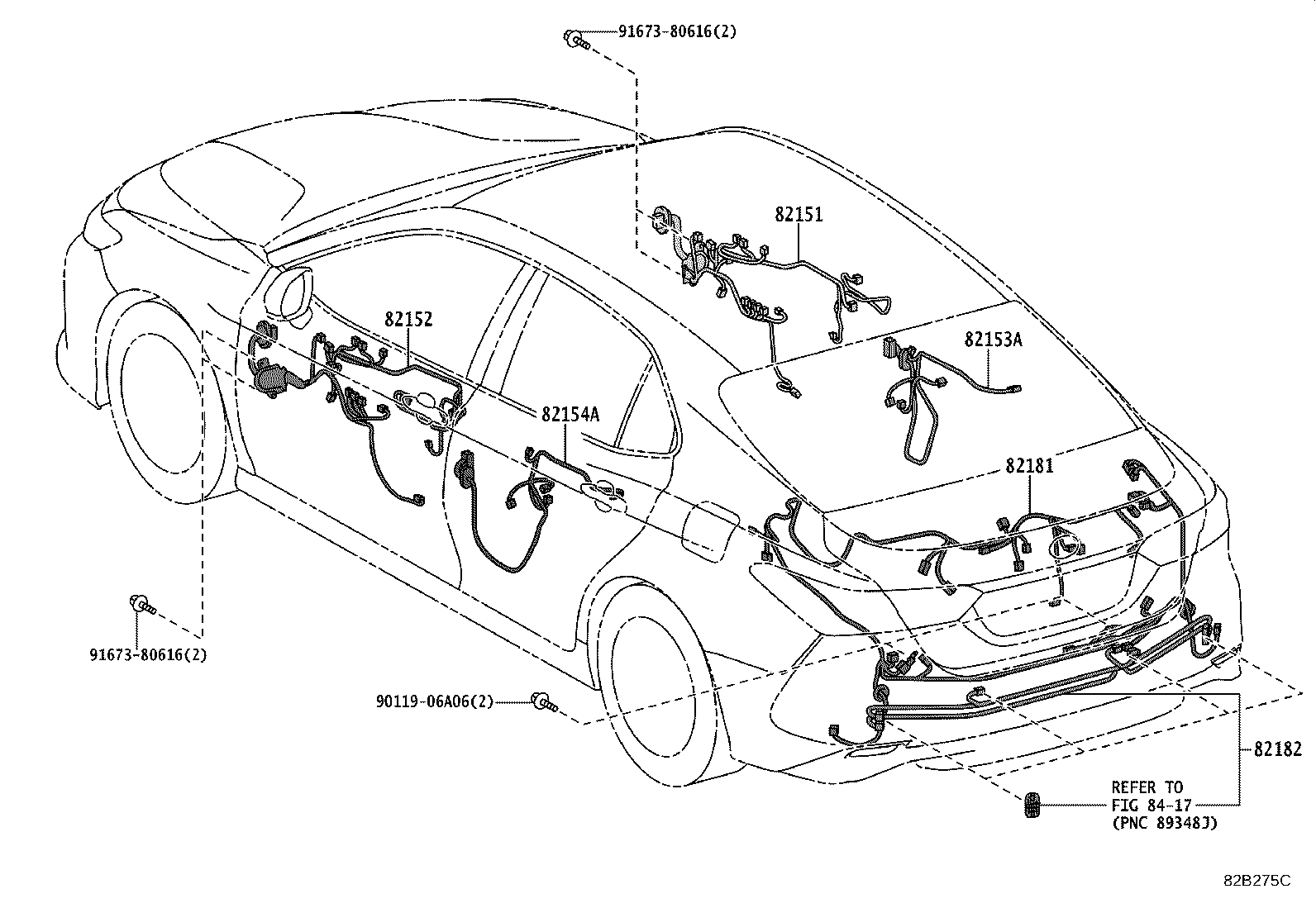

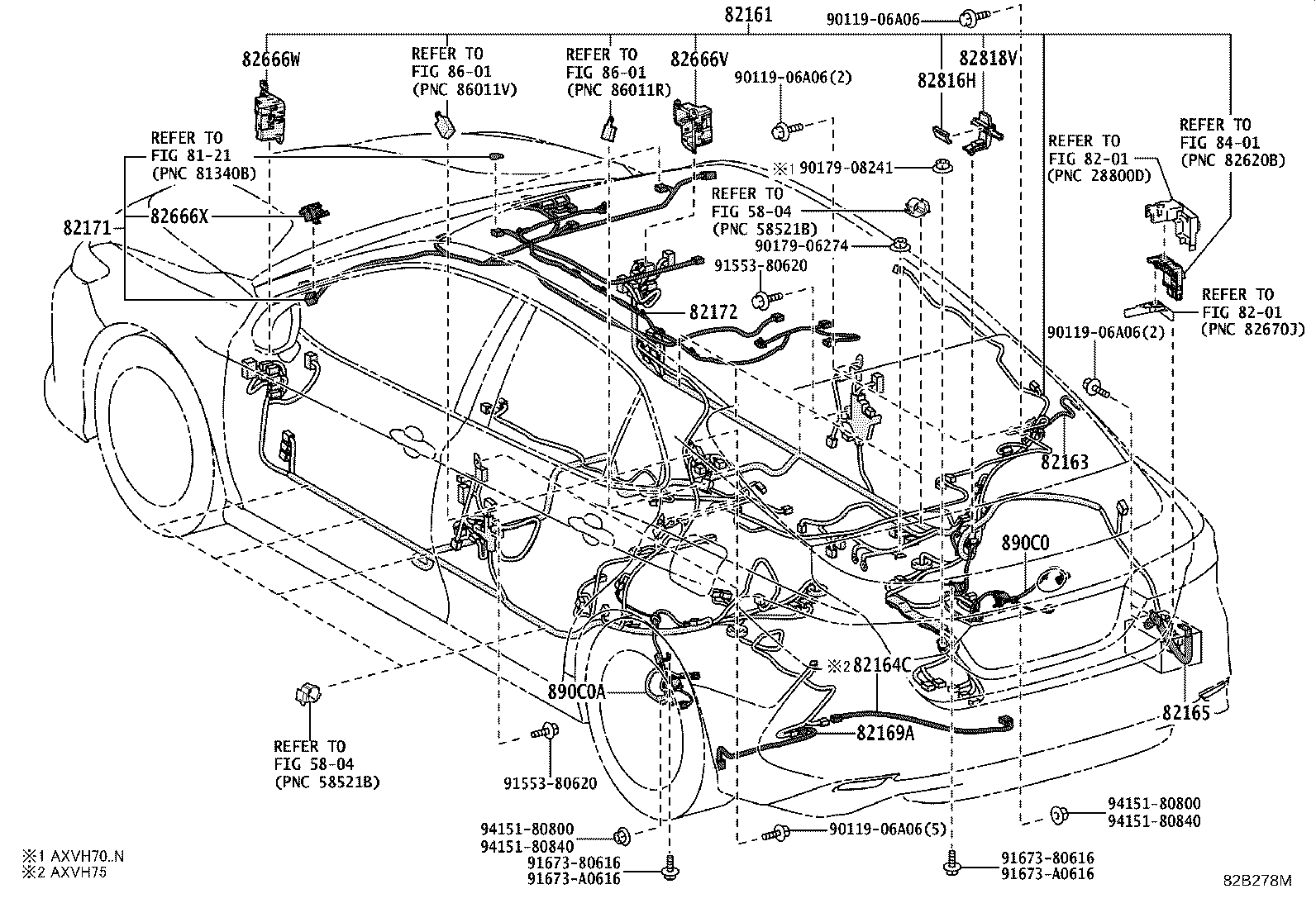

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82164C | Wire, Floor, NO.4 |
| 82165 | Wire, Frame, NO.2 |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |

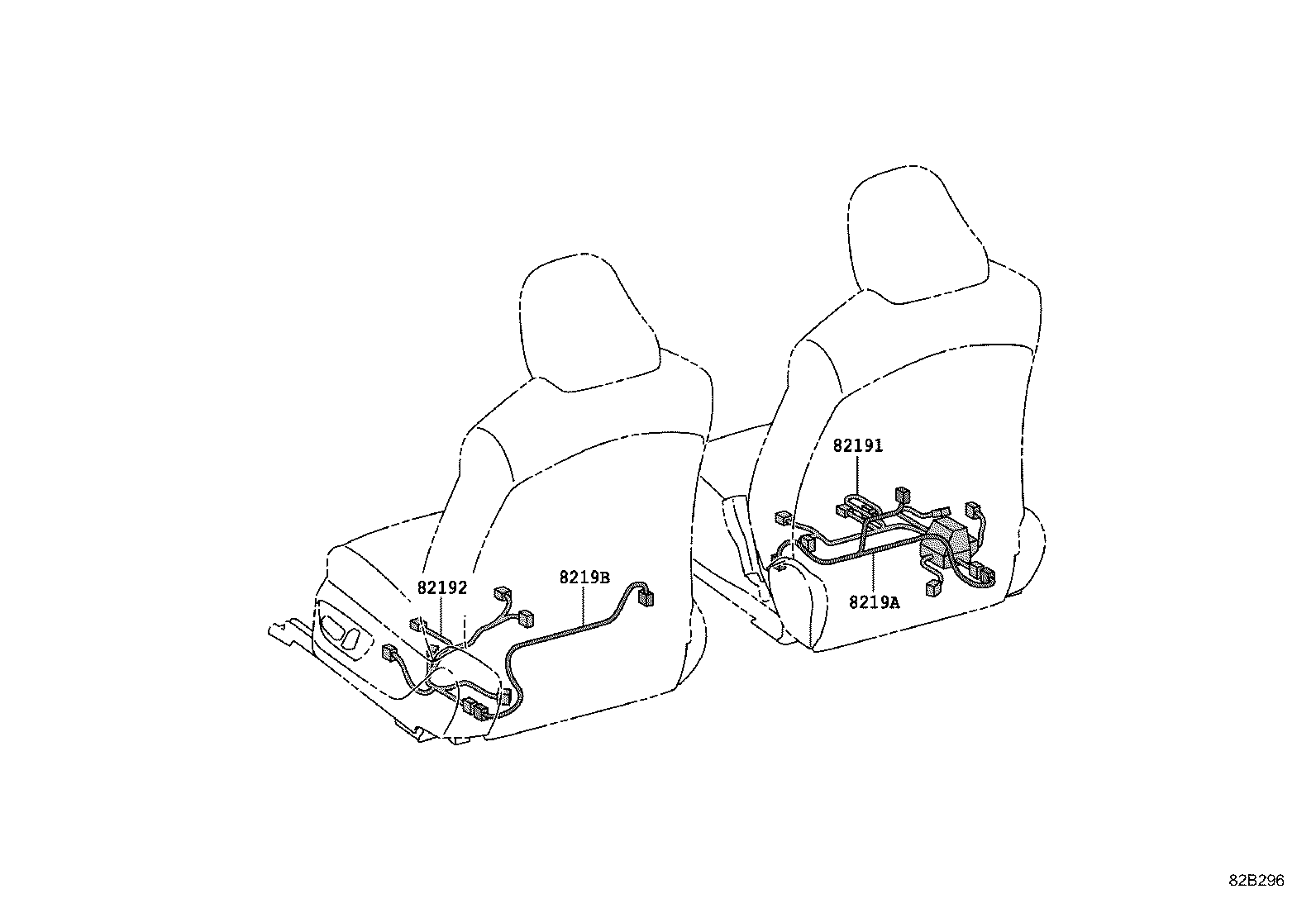

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |

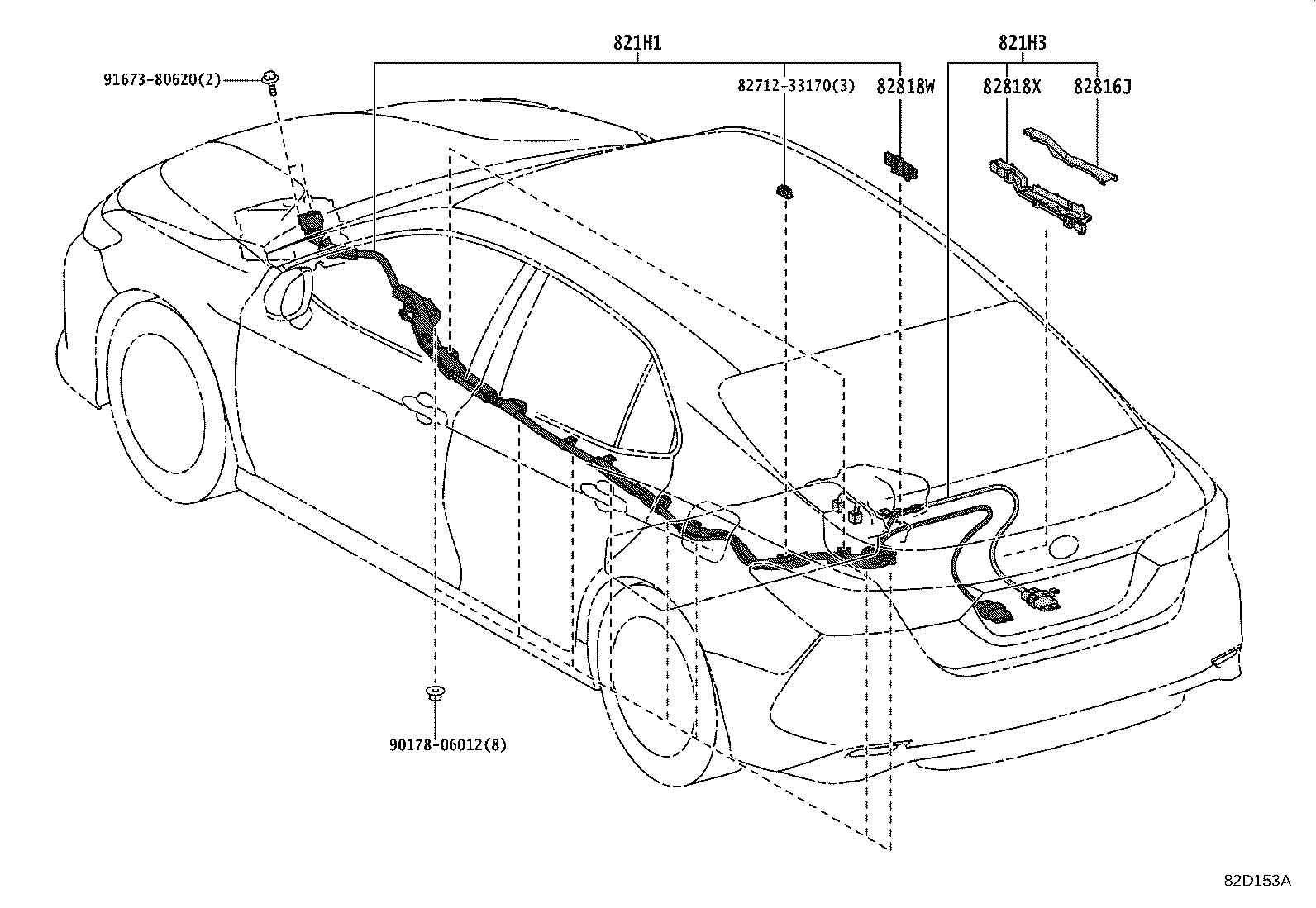

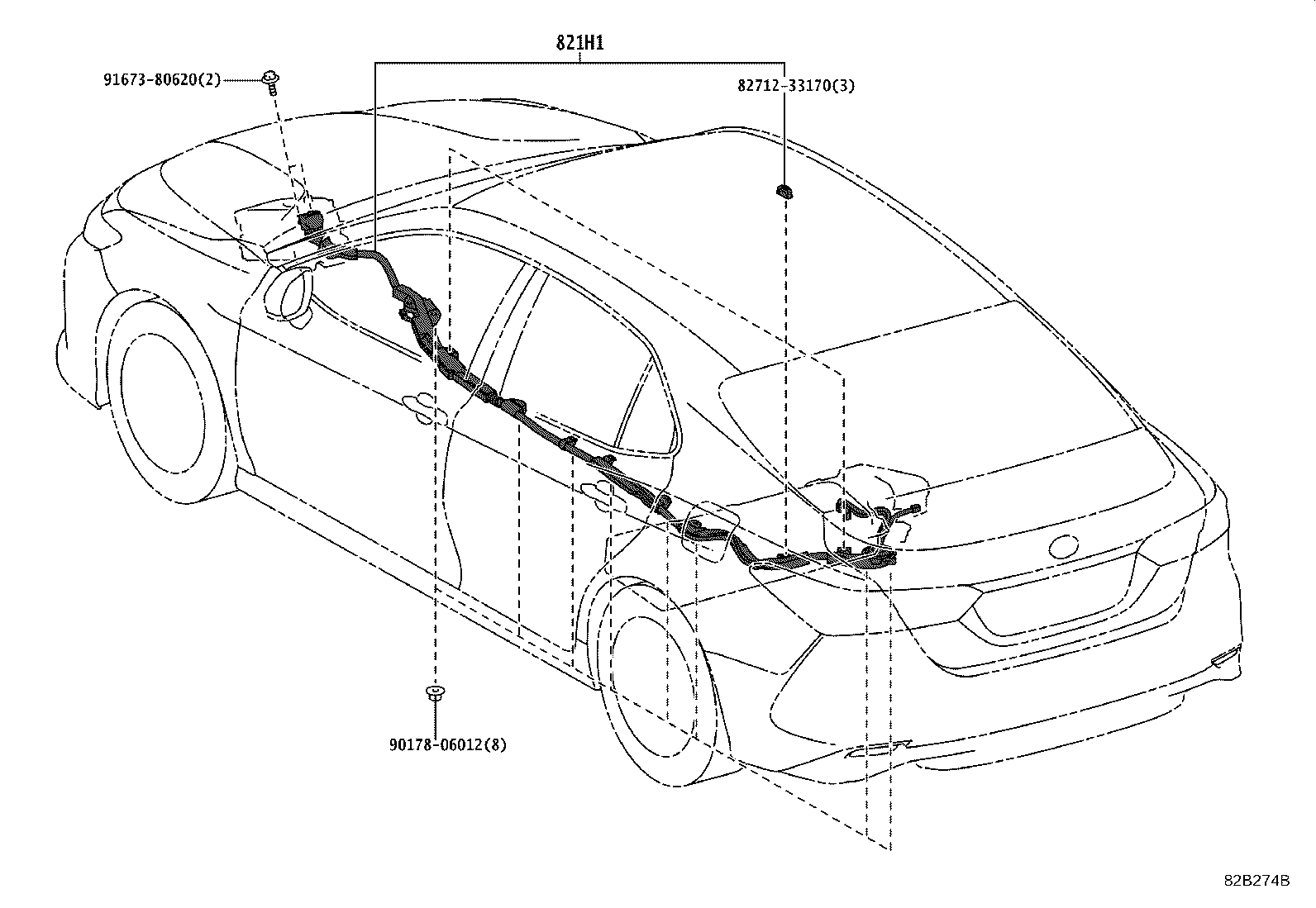

| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 821H3 | Wire, HV Battery Pack |
| 82219A | Wire, Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |

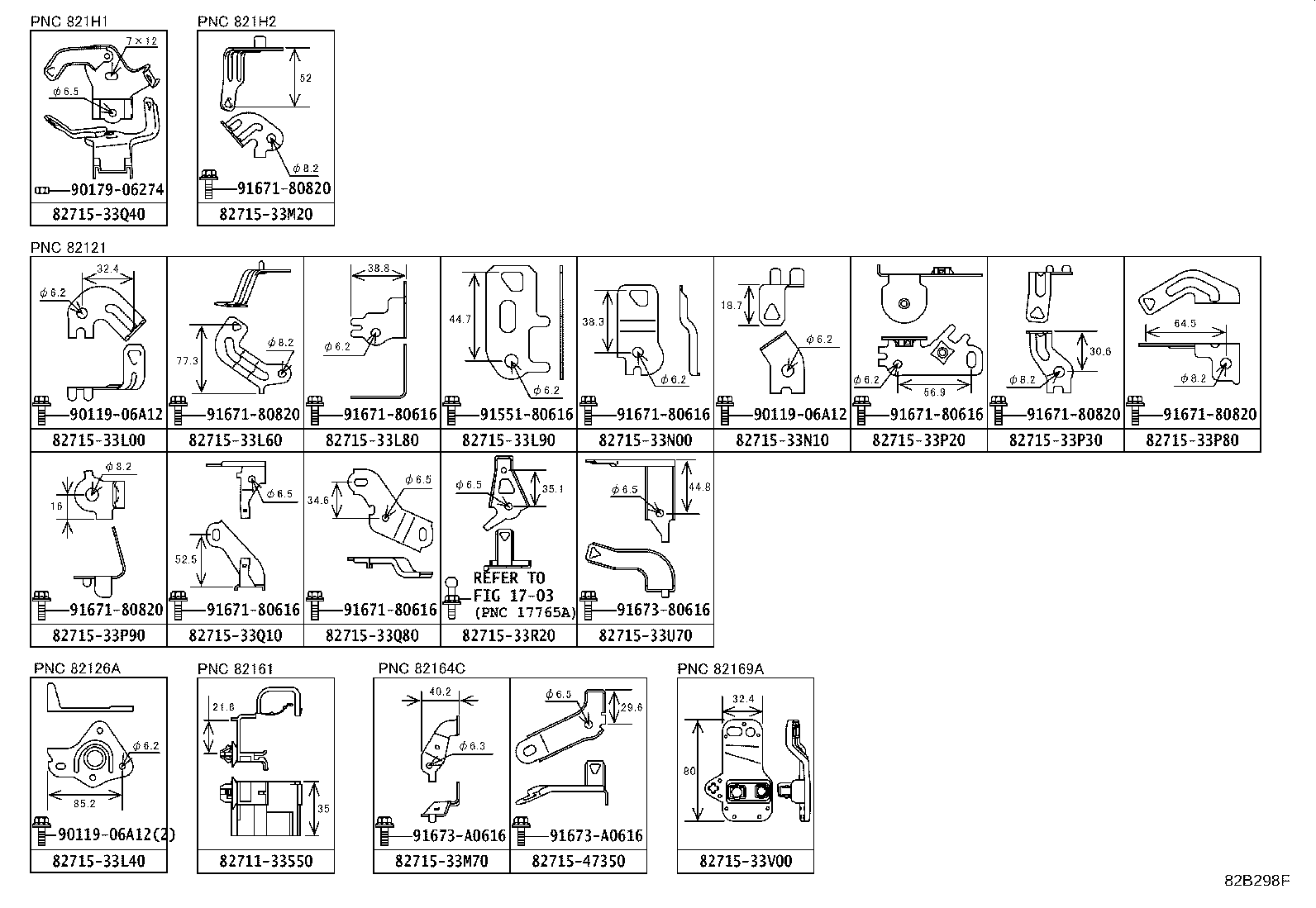

| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82816J | Cover, Wiring Harness Protector, NO.7 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82821A | Cover, Connector |
| 82821M | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
