Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

17 part groups · 7 illustrations

Illustrations

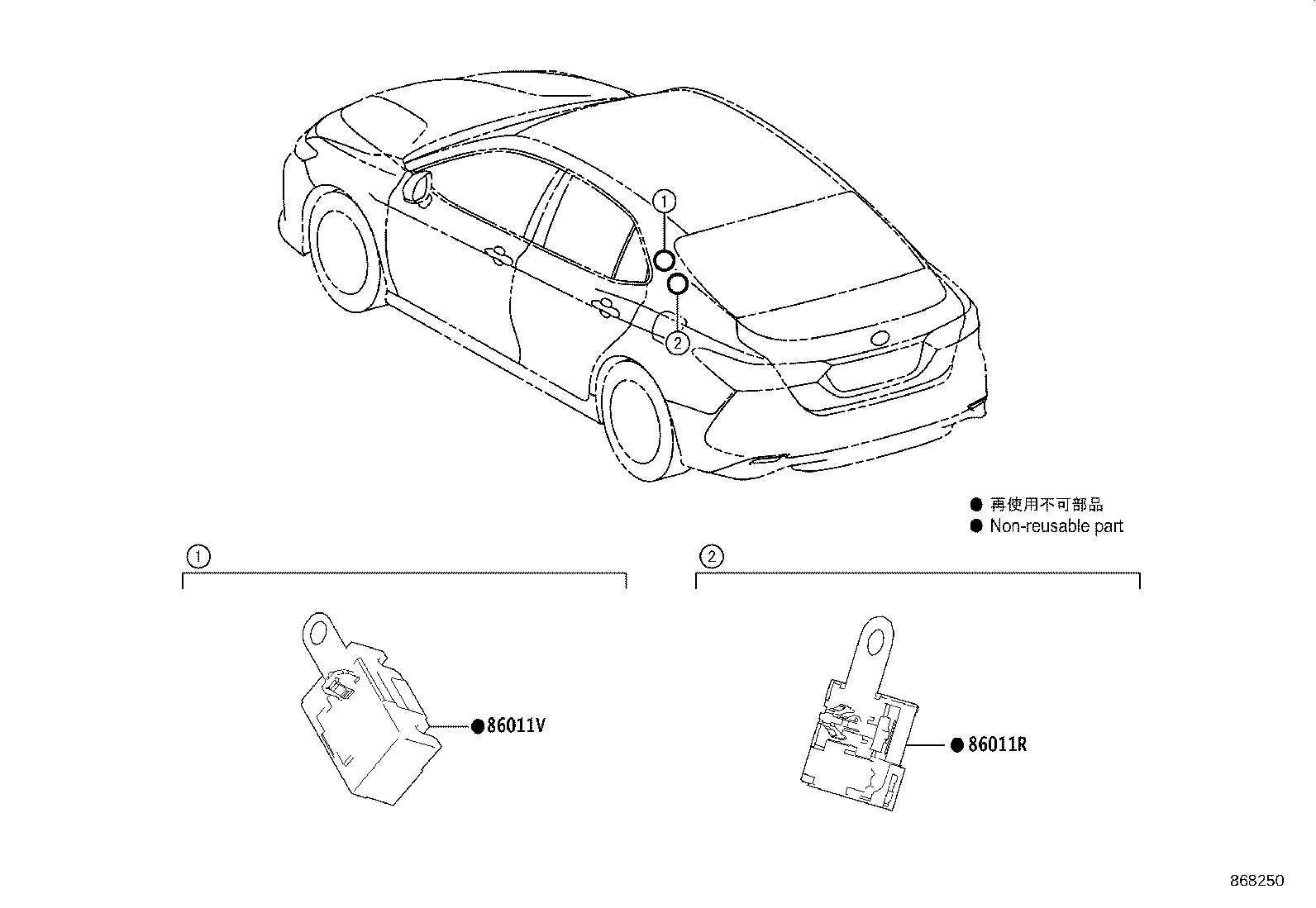

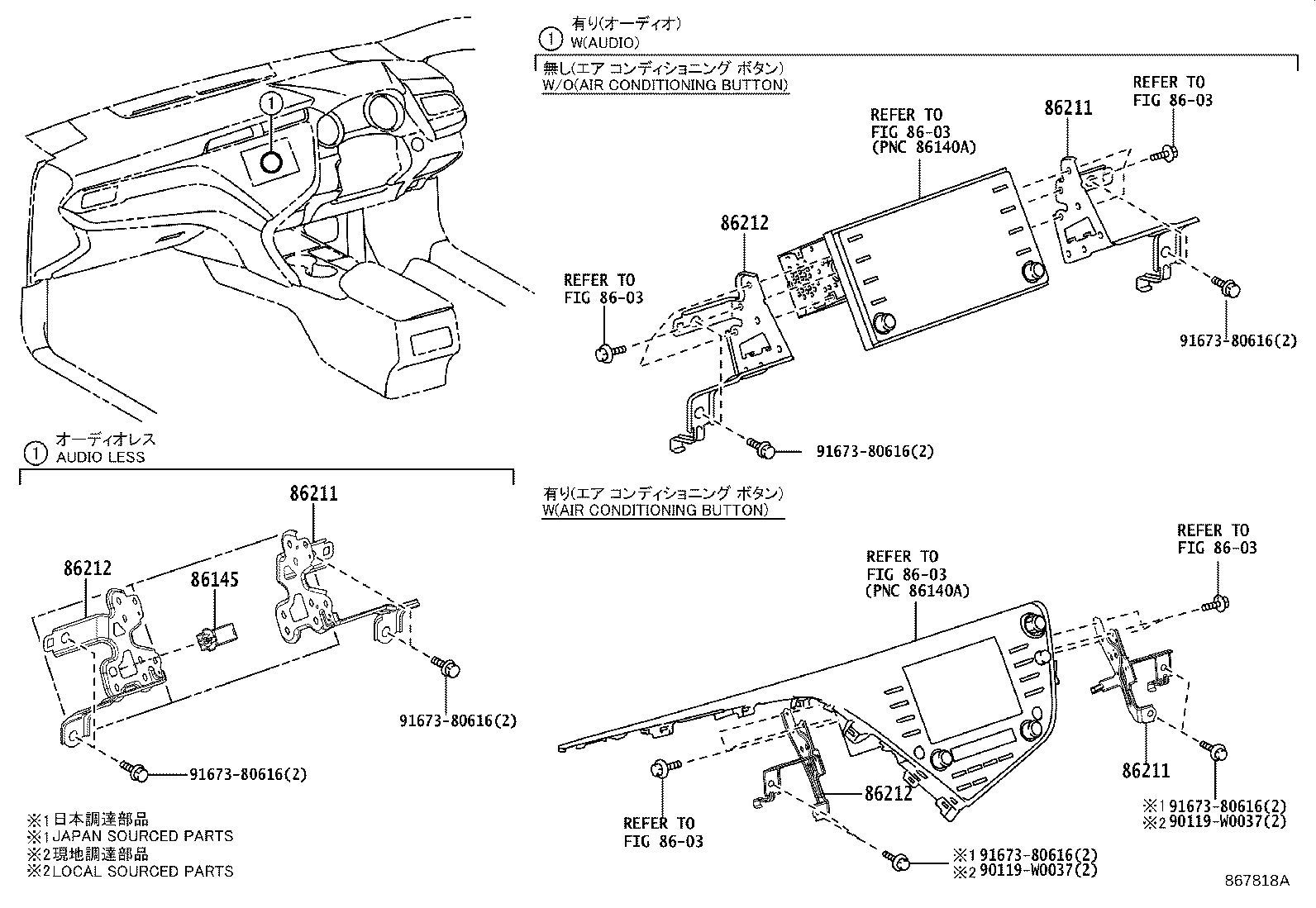

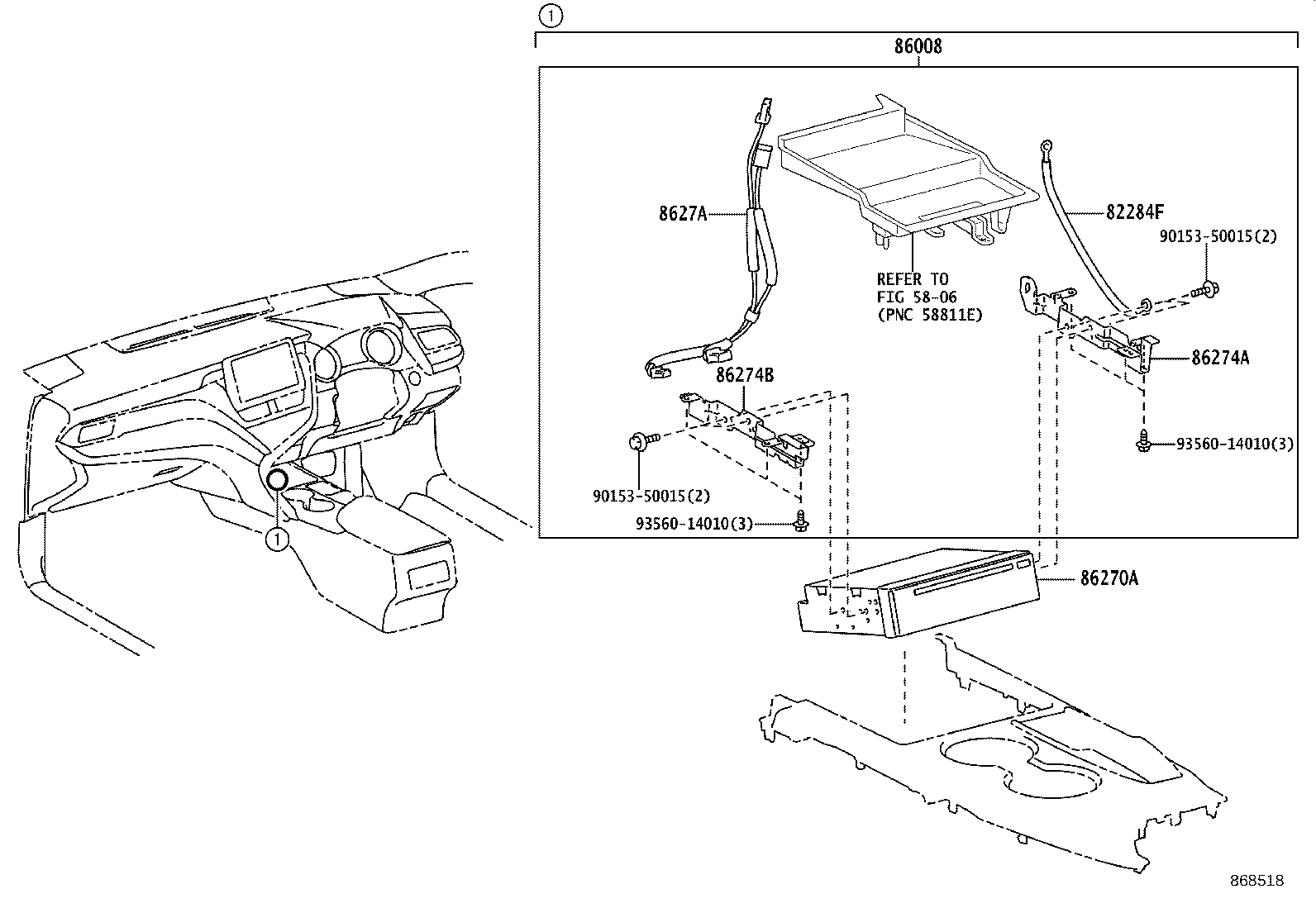

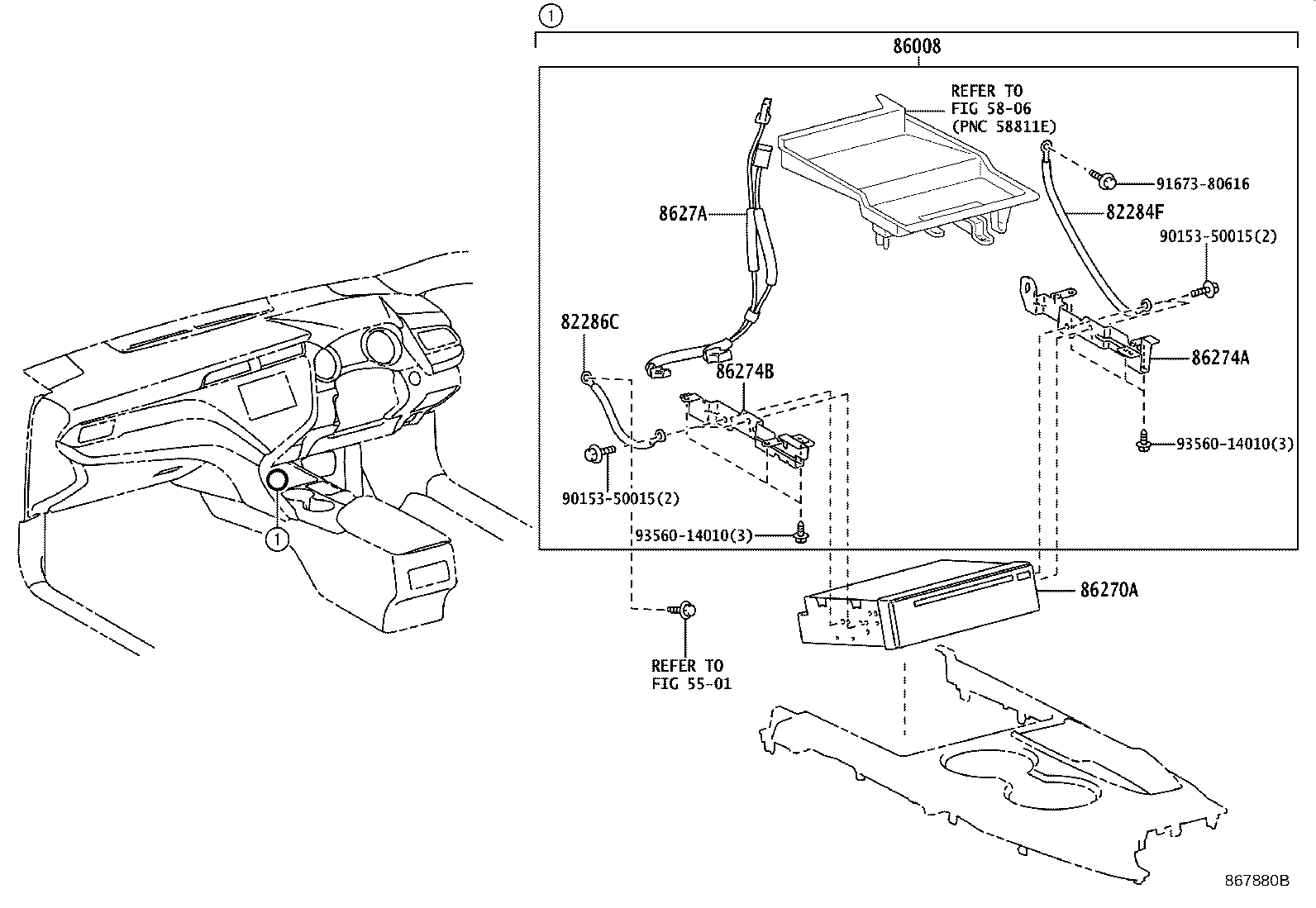

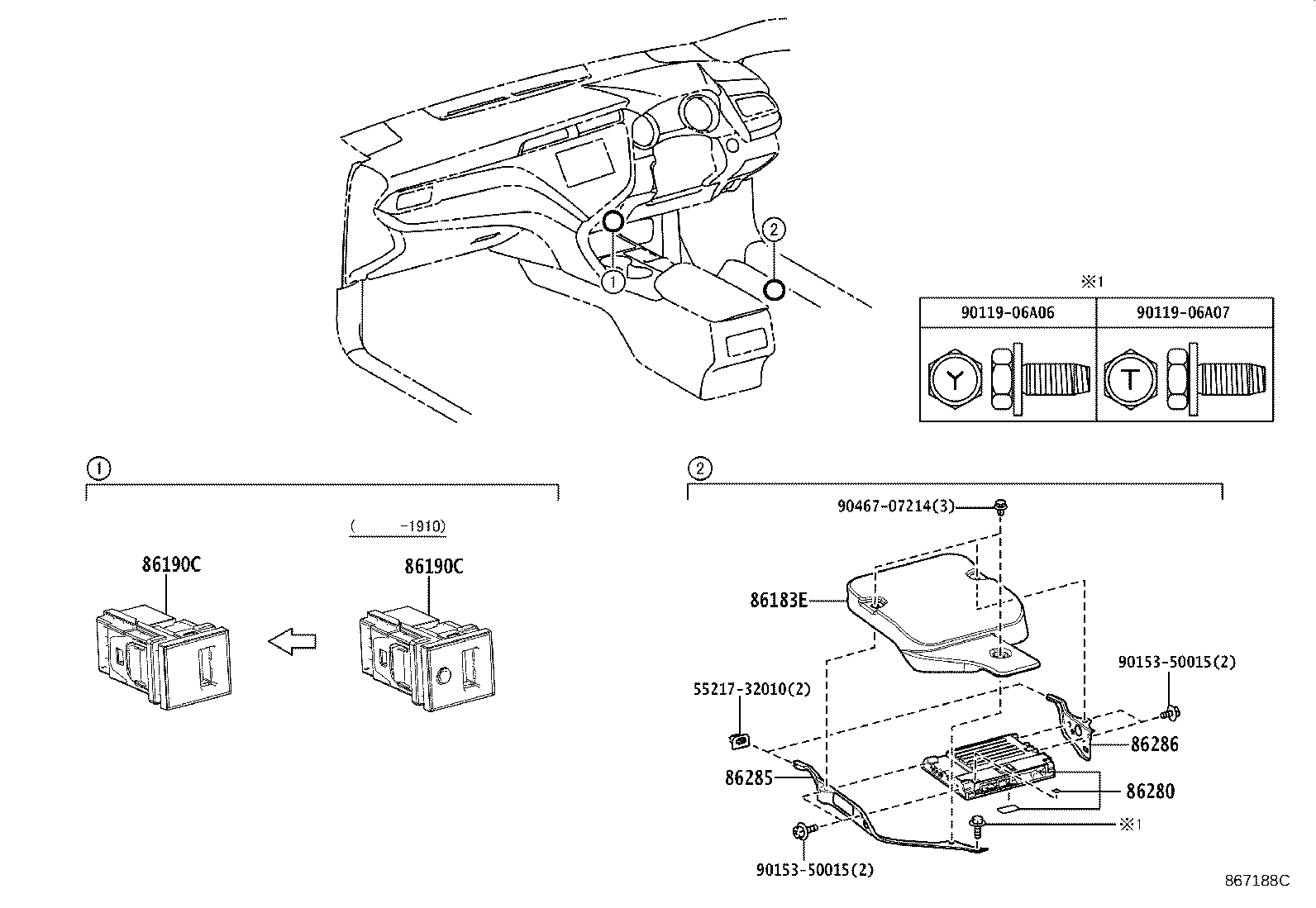

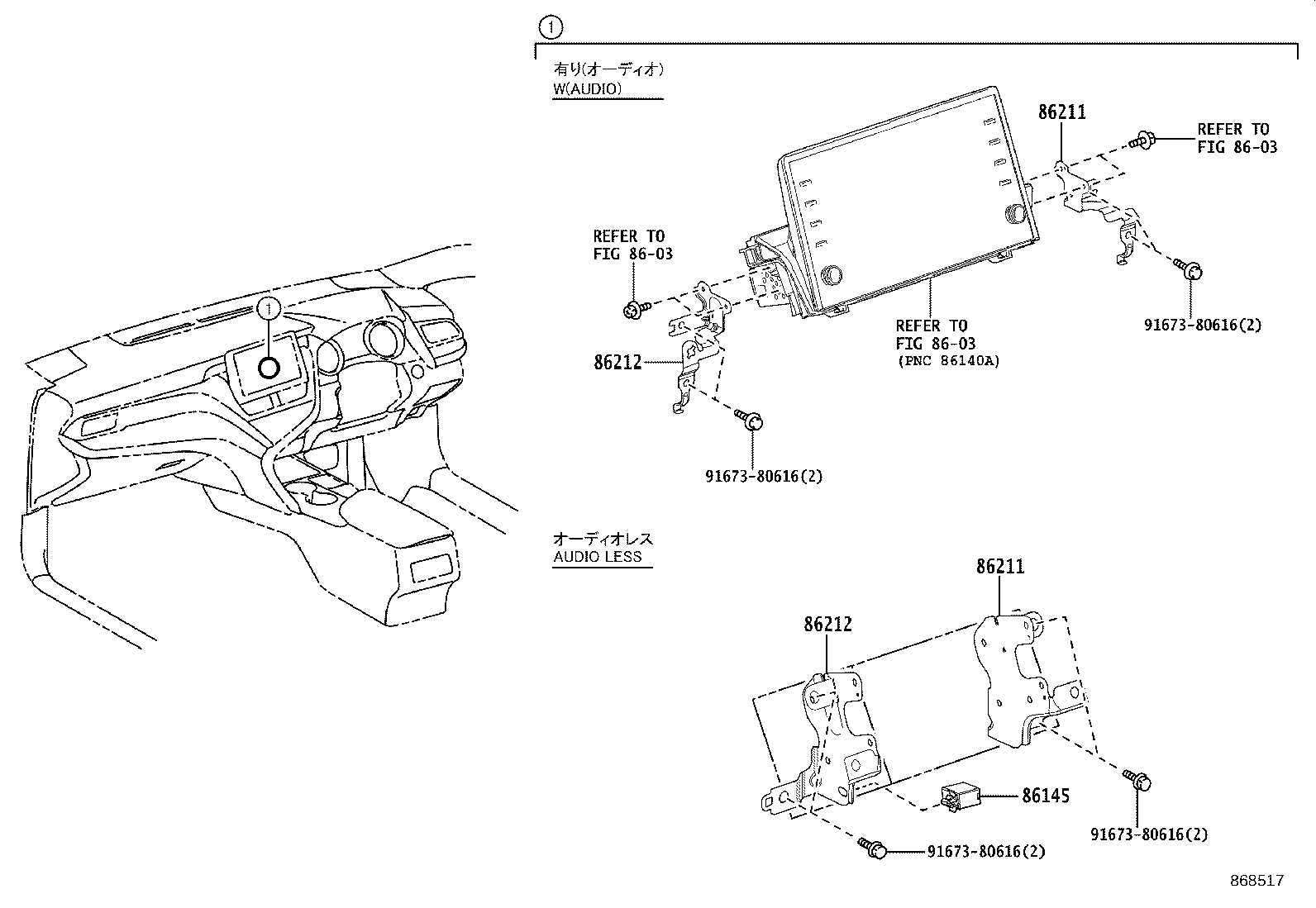

Figure 867187C 867187C 2017-06 → 2019-10 Figure 867818A 867818A 2019-10 → 2021-02 Figure 868517 868517 2021-02 → — Figure 867188C 867188C 2017-06 → — Figure 867880B 867880B 2019-10 → 2021-02 Figure 868518 868518 2021-02 → — Figure 868250 868250 2017-06 → —

Part groups

PNCDescription
82284F Wire, Earth
82286C Wire, Earth, NO.2
86008 Deck Set, Disc Player
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86145 Connector, Antenna Male
86183E Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86270A Disc Player Assy
86274A Bracket, Disc Player
86274B Bracket, Disc Player
8627A Wire, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
