Toyota Camry
2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan
Supported model
Data version 2021-02

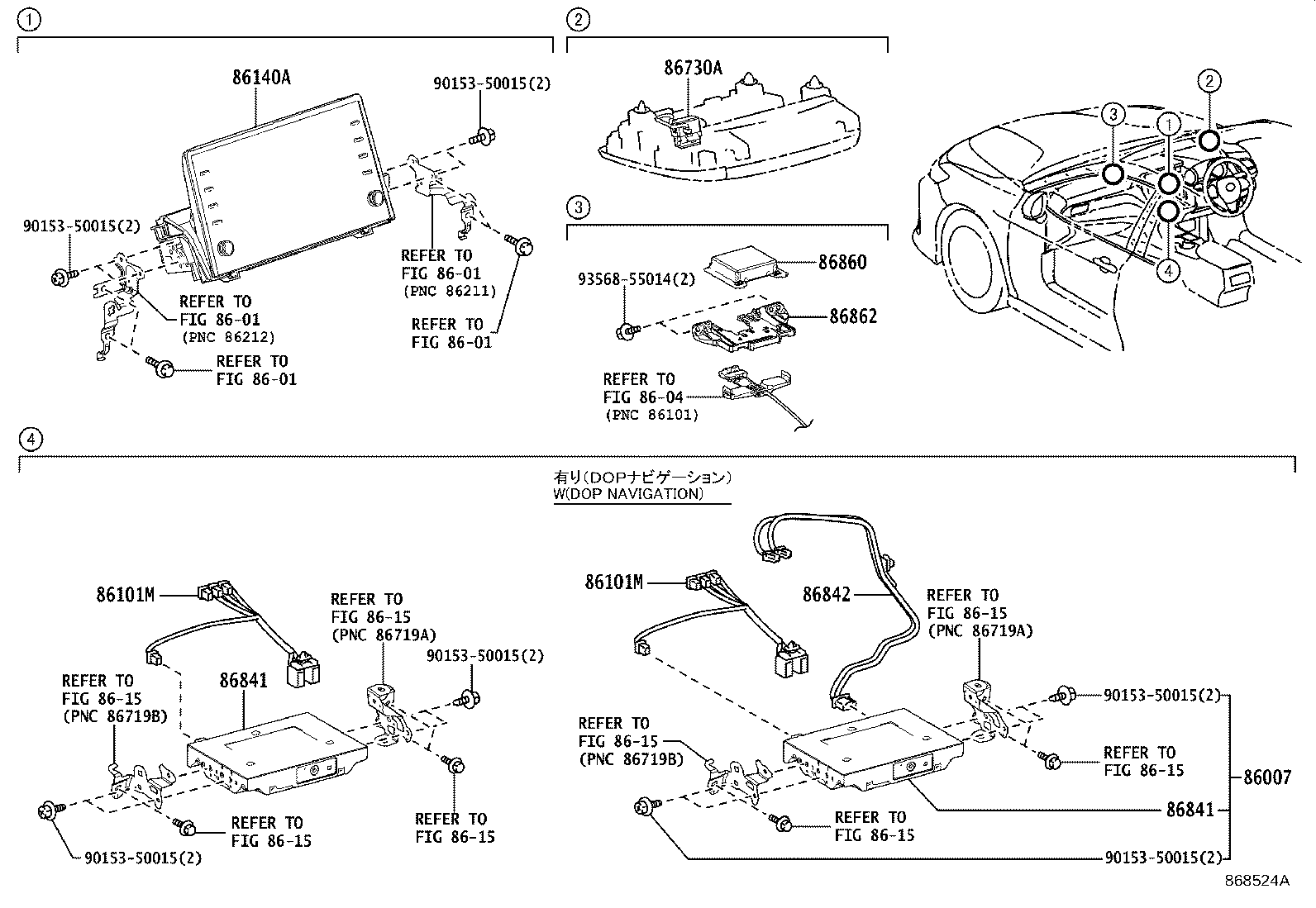

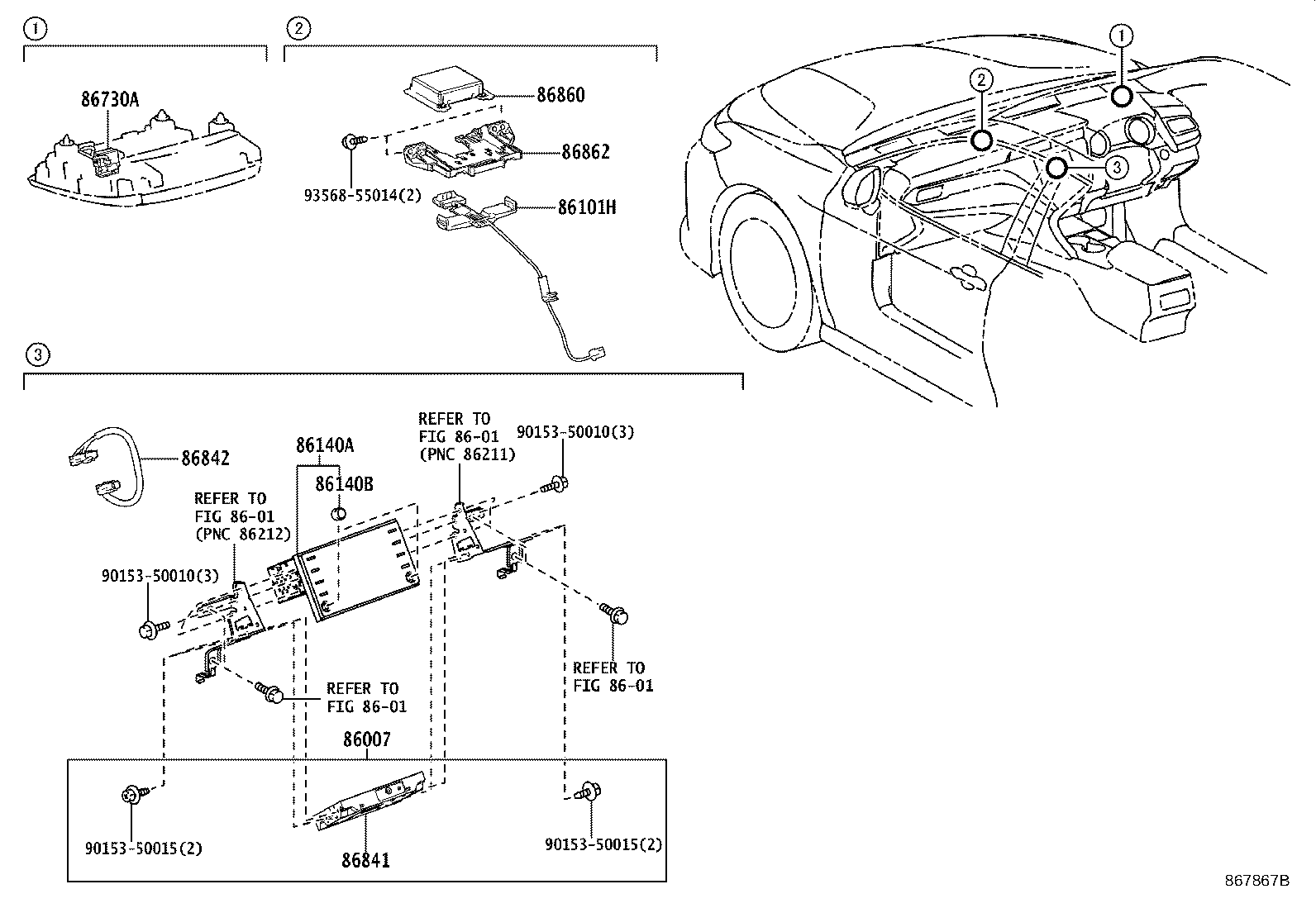

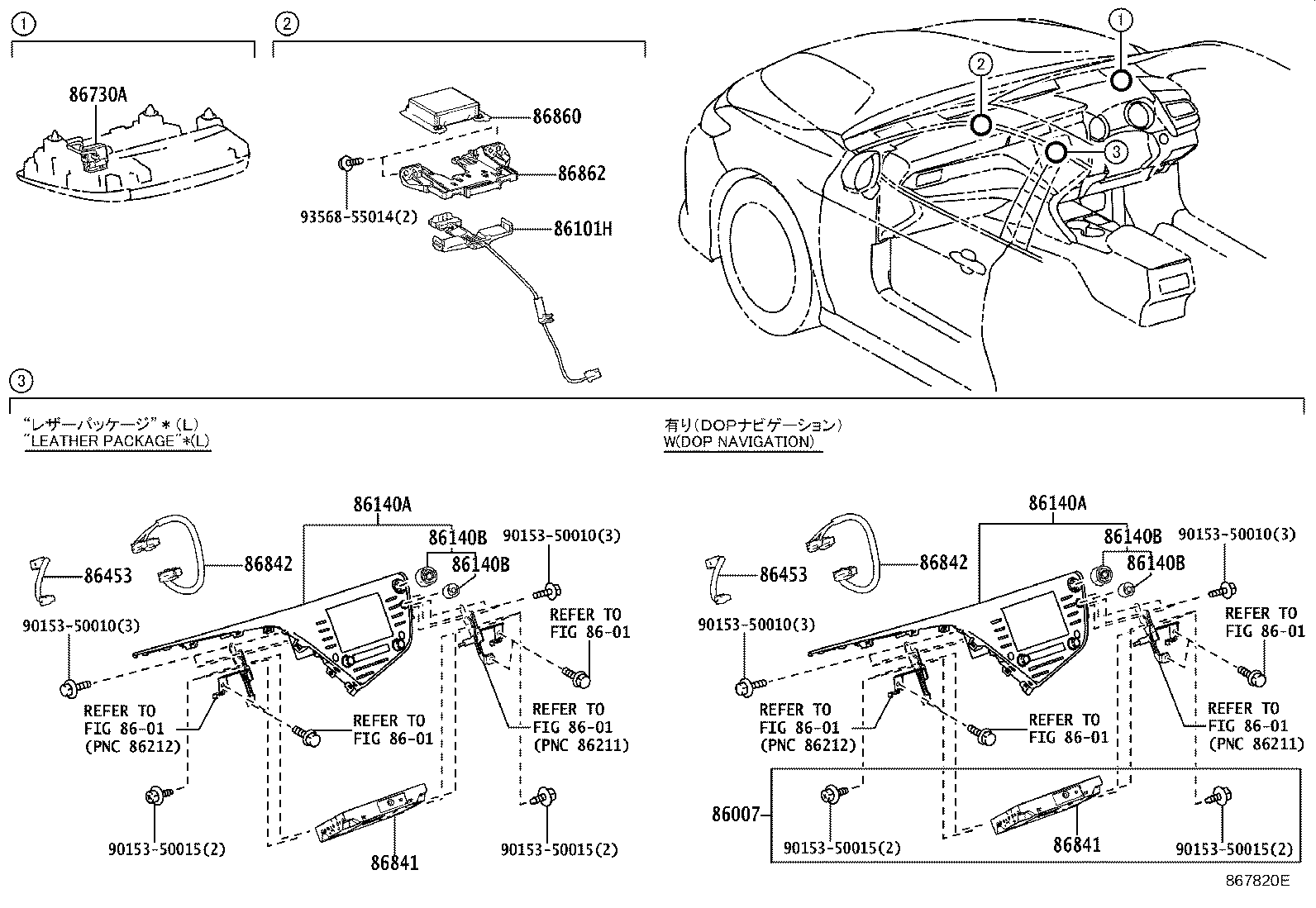

Navigation & Front Monitor Display
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86007 | Computer Set, Navigation |
| 86101H | Cord Sub-assy, Antenna |
| 86101M | Cord Sub-assy, Antenna |
| 86120L | Receiver Assy, Navigation |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86453 | Wire, Multi-media Module |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
