Toyota Camry

2017-06 → present · chassis AXVH7# · catalogue 2841A0 · Japan

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

13 part groups · 3 illustrations

Illustrations

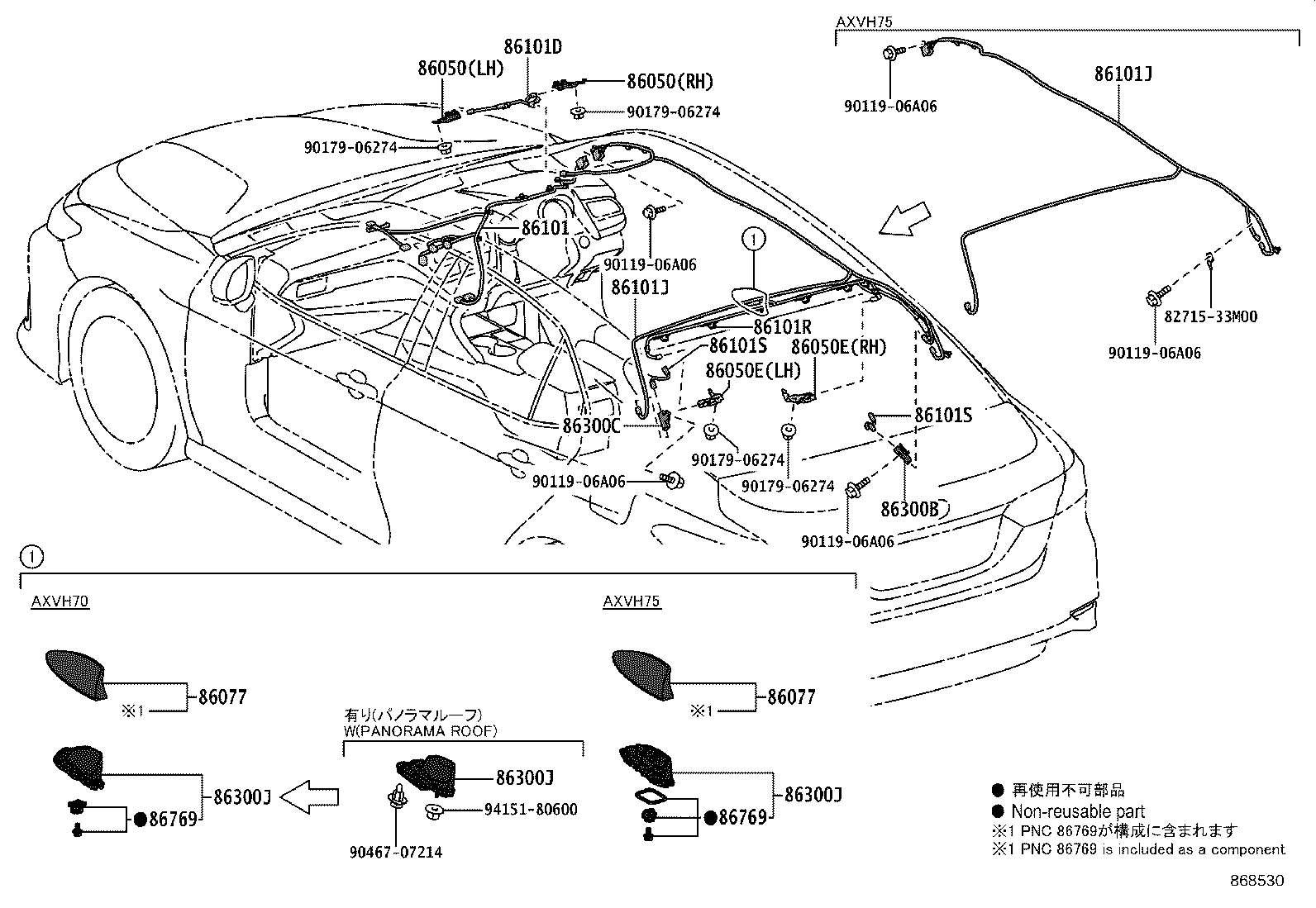

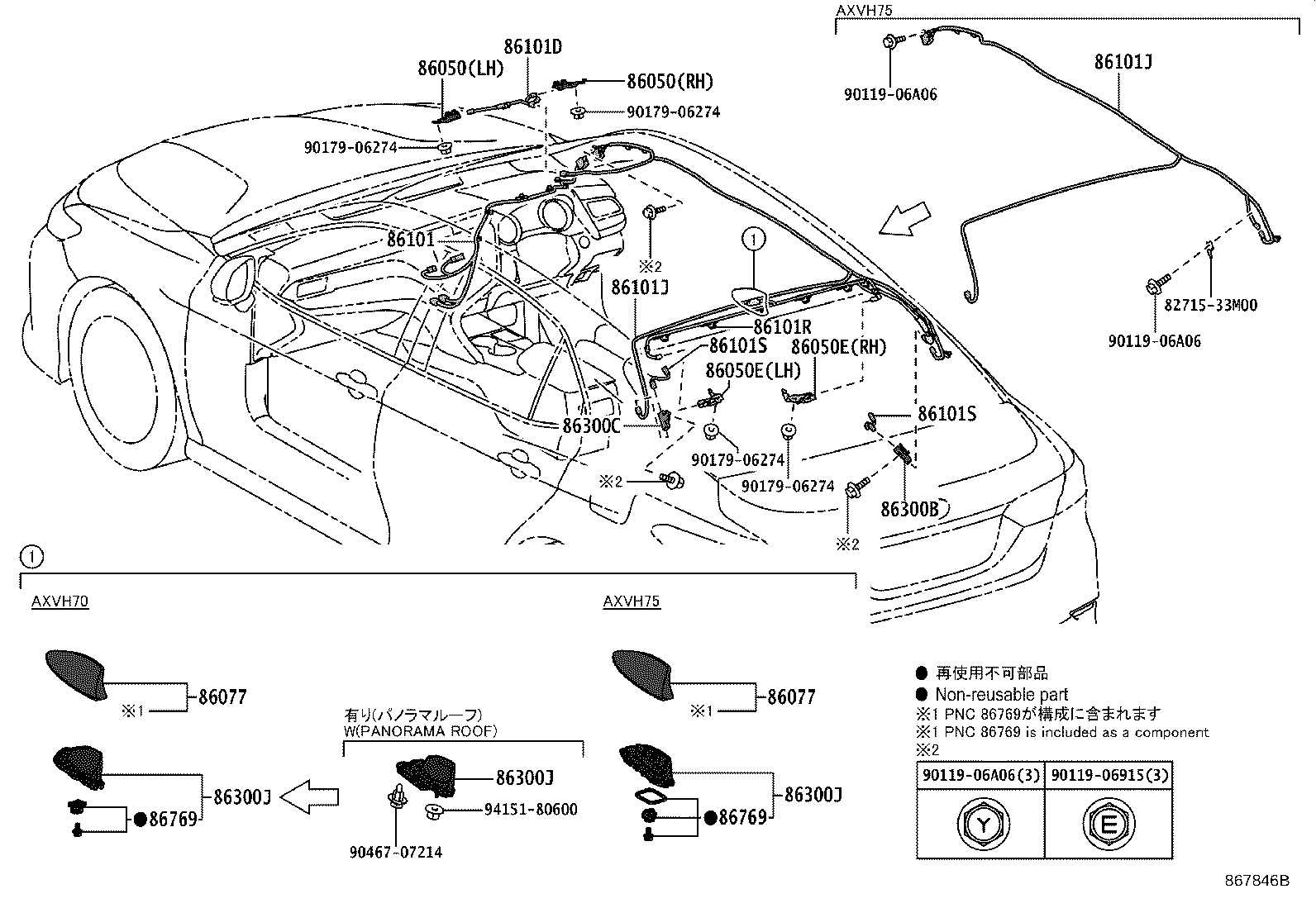

Figure 867021 867021 2017-06 → 2019-10 Figure 867846B 867846B 2019-10 → 2021-02 Figure 868530 868530 2021-02 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101S Cord Sub-assy, Antenna
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
