Toyota Mirai
2020-11 → present · chassis JPD20 · catalogue 28B120 · Japan
Supported model
Data version 2024-12

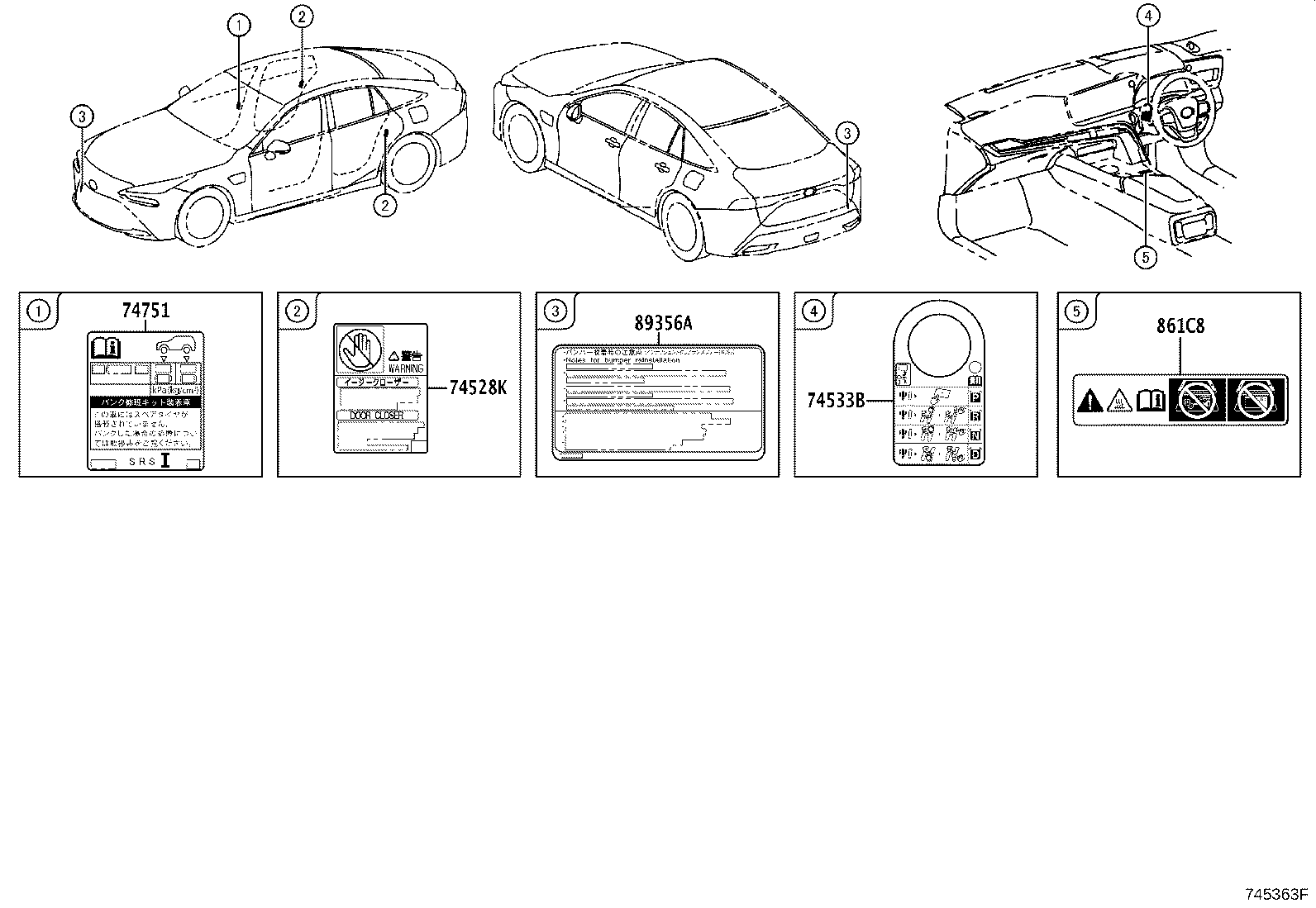

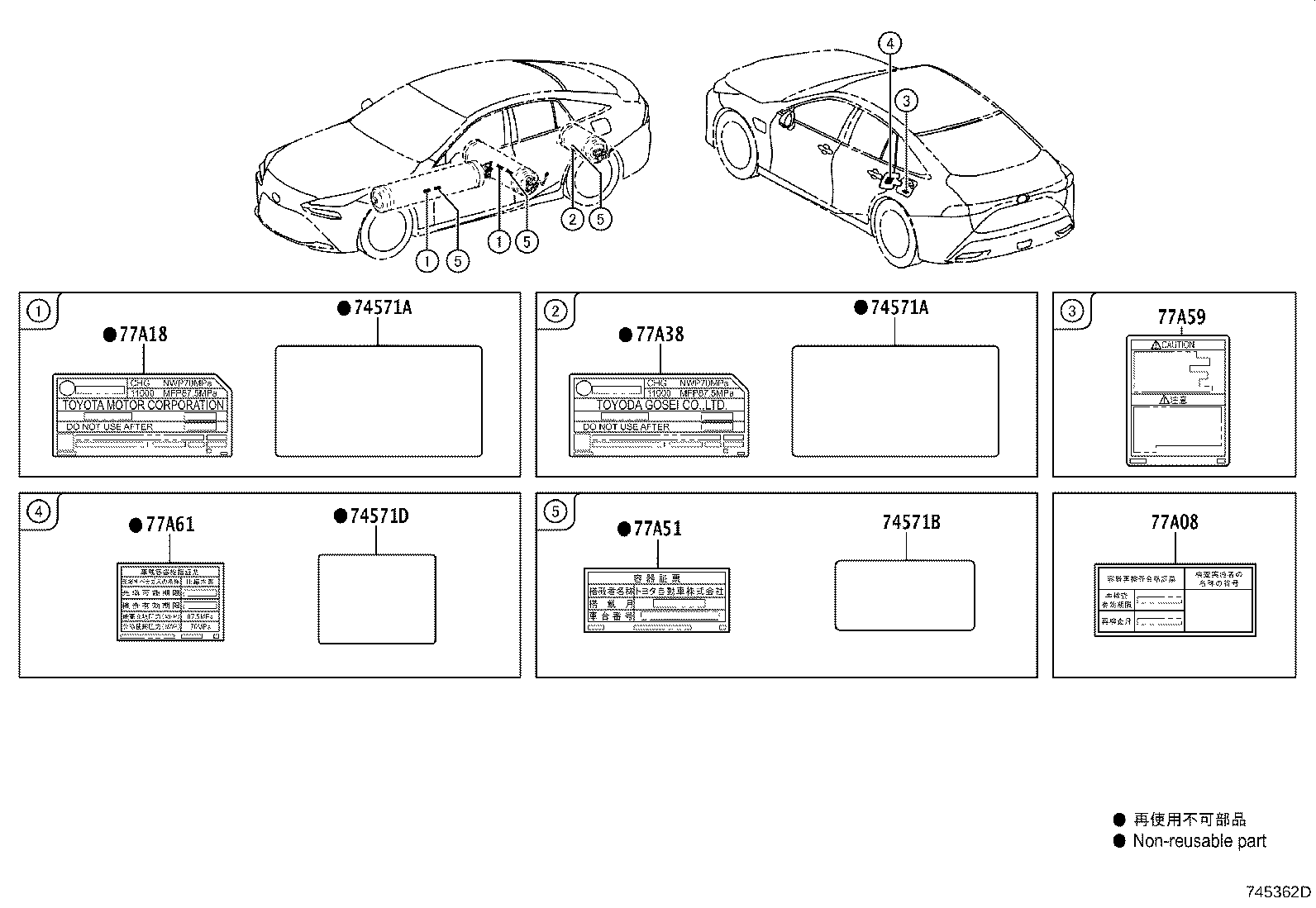

Caution Plate (EXTERIOR & INTERIOR)
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16793E | Label, Cooling Fan Caution |
| 1A1A7 | Label, FC Stack Notice |
| 288A2 | Label, Battery Location |
| 74528K | Label, Door Closer Caution |
| 74533B | Plate, Shifting Instruction |
| 74571A | Film, Label Cover |
| 74571B | Film, Label Cover |
| 74571D | Film, Label Cover |
| 74751 | Label, Tire Pressure Information |
| 77A08 | Label Set, Hydrogen Tank Reinspection |
| 77A18 | Label, Hydrogen Tank Information, NO.1 |
| 77A38 | Label, Hydrogen Tank Information, NO.2 |
| 77A51 | Label, Hydrogen Tank Identification |
| 77A59 | Label, Hydrogen Fueling Caution |
| 77A61 | Label, Hydrogen Tank Pressure Information |
| 77A62 | Label, Hydrogen Tank List Information |
| 82685D | Plate, Caution |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G92A1B | Label, EV Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
