Toyota Supra

1986-02 → 1988-08 · chassis GA70,MA70 · catalogue 291110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

20 part groups · 2 illustrations

Illustrations

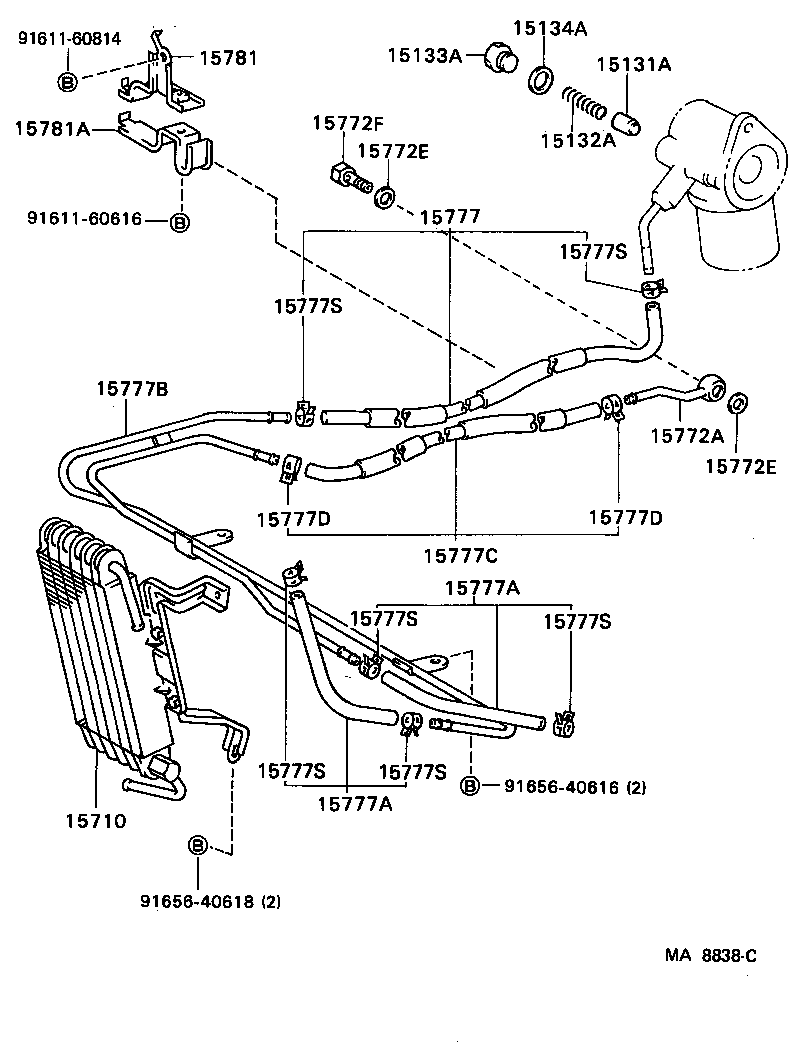

Figure MA8587A MA8587A 1986-02 → — Figure MA8838C MA8838C 1986-02 → —

Part groups

PNCDescription
15131A Valve, Oil Cooler Relief
15132A Spring, Oil Cooler Relief Valve
15133A Plug, Oil Cooler Relief Valve
15134A Gasket, Oil Cooler Relief Valve
15690 Valve Assy, Oil Cooler Relief
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15772F Bolt, Union(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777E Union
15777S Clamp OR Clip, Hose
15781 Bracket, Oil Cooler, NO.1
15781A Clamp(FOR OIL COOLER BRACKET NO.1)
15785 Gasket, Oil Cooler
