Toyota Supra
1986-02 → 1988-08 · chassis GA70,MA70 · catalogue 291110 · Japan
Discontinued model
Data version 1988-12
Meter
38 part groups · 4 illustrations
Part groups

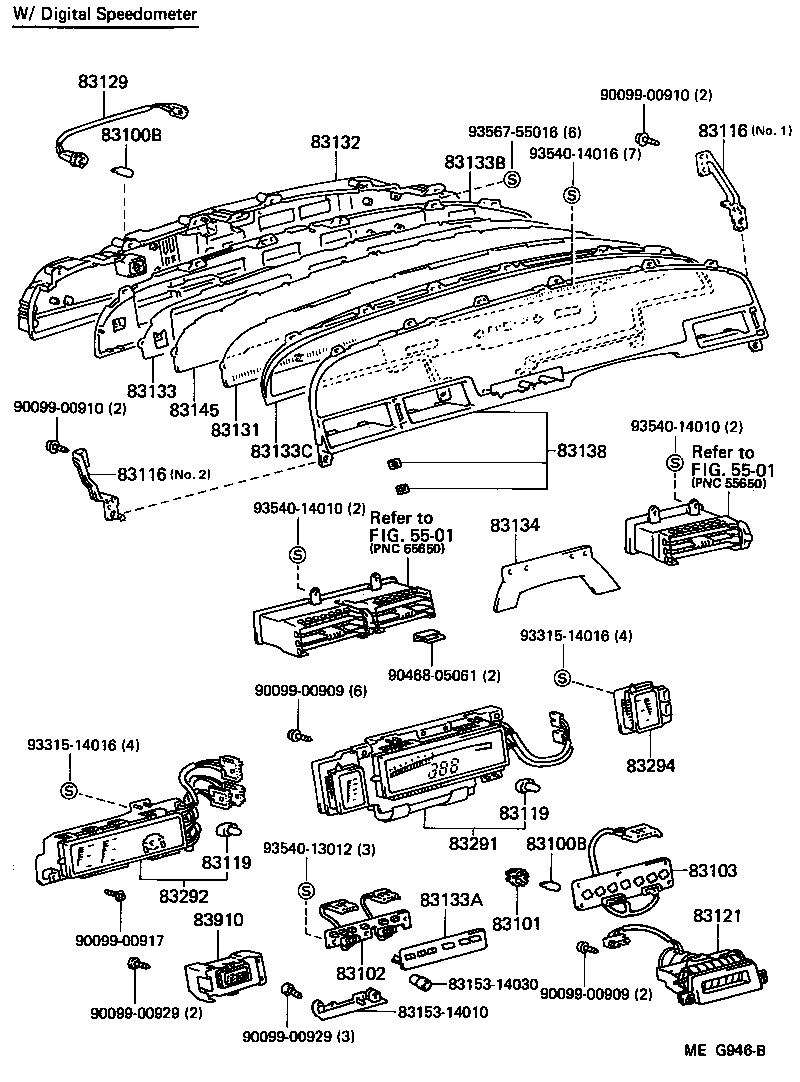

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83104 | Plate Sub-assy, Combination Meter Circuit, NO.3 |
| 83105 | Plate Sub-assy, Combination Meter Circuit, NO.4 |
| 83109 | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83121 | Counter, Total |
| 83121A | Sensor, Speed |
| 83128 | Knob, Trip Counter |
| 83129 | Wire, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133B | Plate, Combination Meter, NO.3 |
| 83133C | Plate, Combination Meter,NO.4 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83189 | Bracket, Meter |
| 83248 | Chime, Speed Warning |
| 83251 | Meter, Voltage |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83292 | Computer, Combination Gage |
| 83294 | Computer, Temperature Receiver Gage |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83510 | Gage Assy, Oil Pressure Receiver |

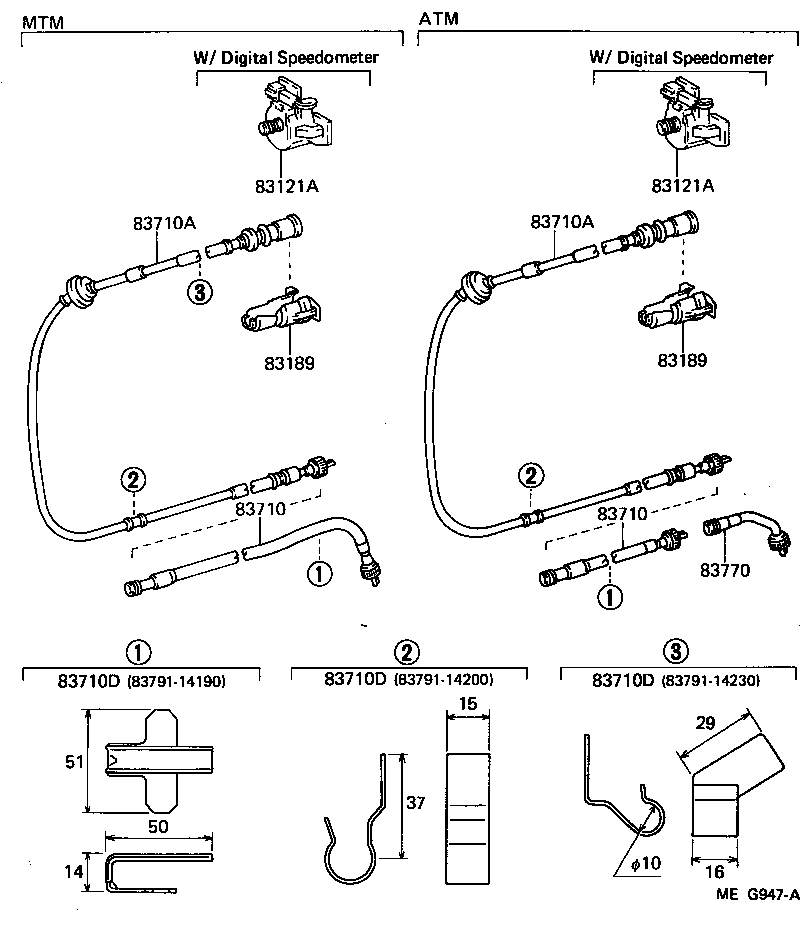

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83710D | Clamp (FOR SPEEDOMETER CABLE) |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
