Toyota Supra

1988-08 → 1993-05 · chassis GA70,JZA70,MA70 · catalogue 291120 · Japan

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

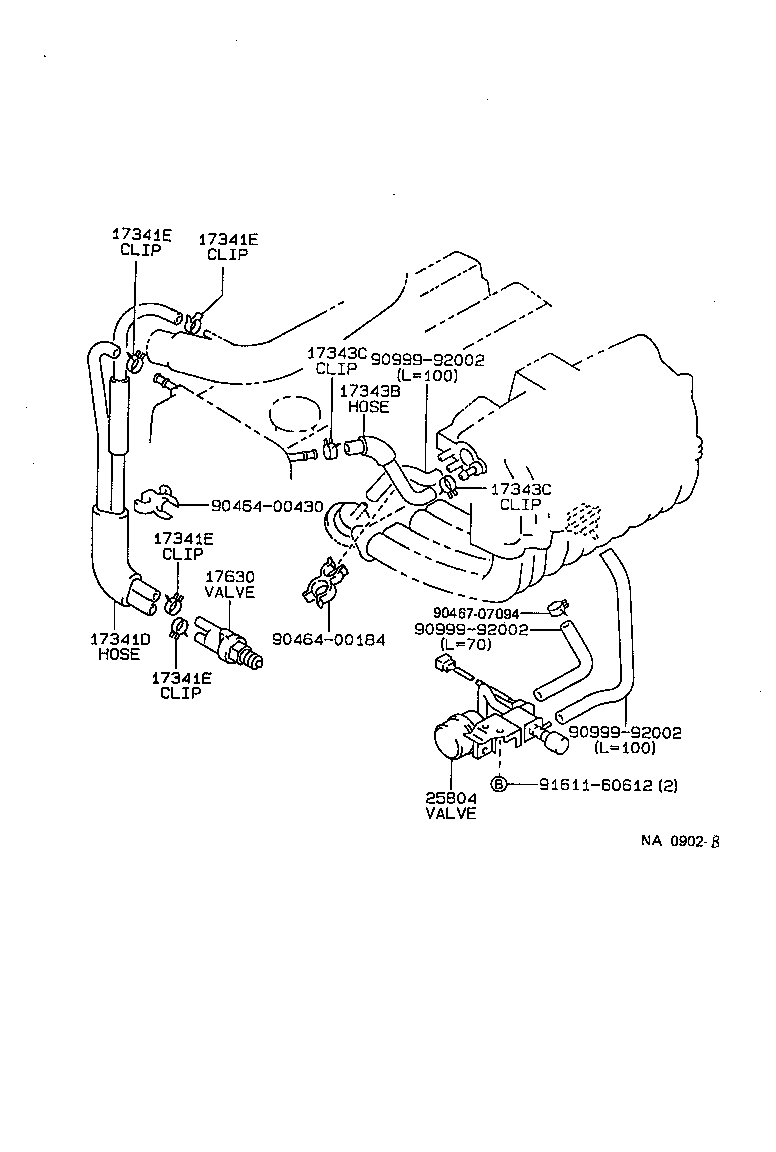

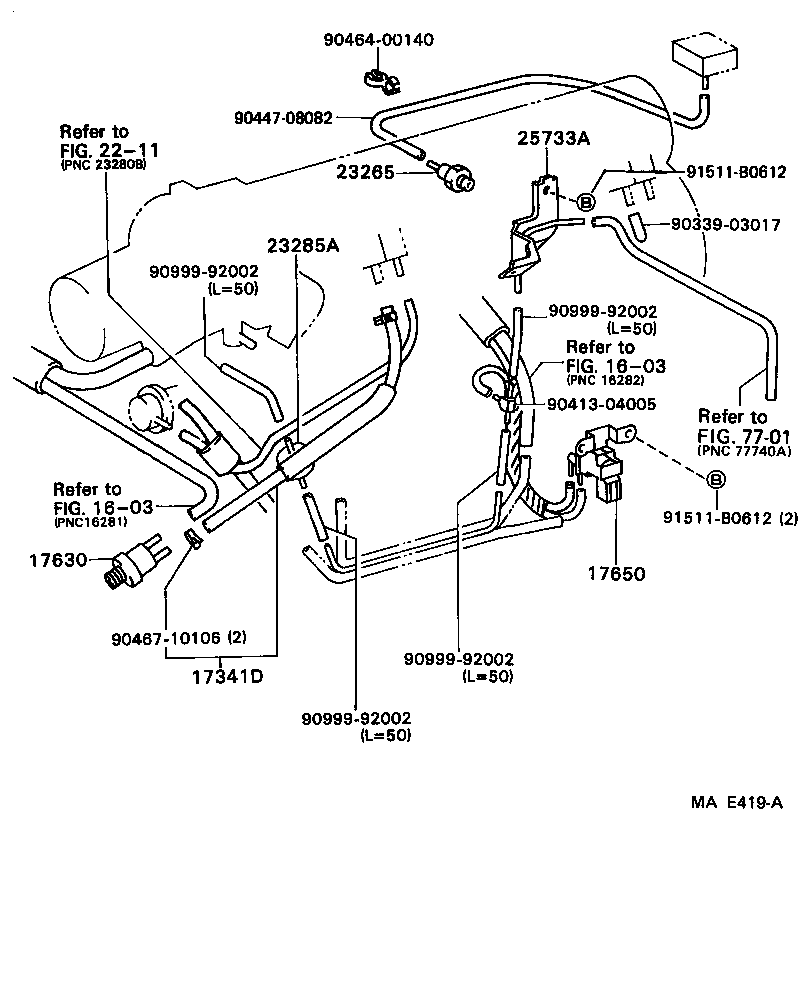

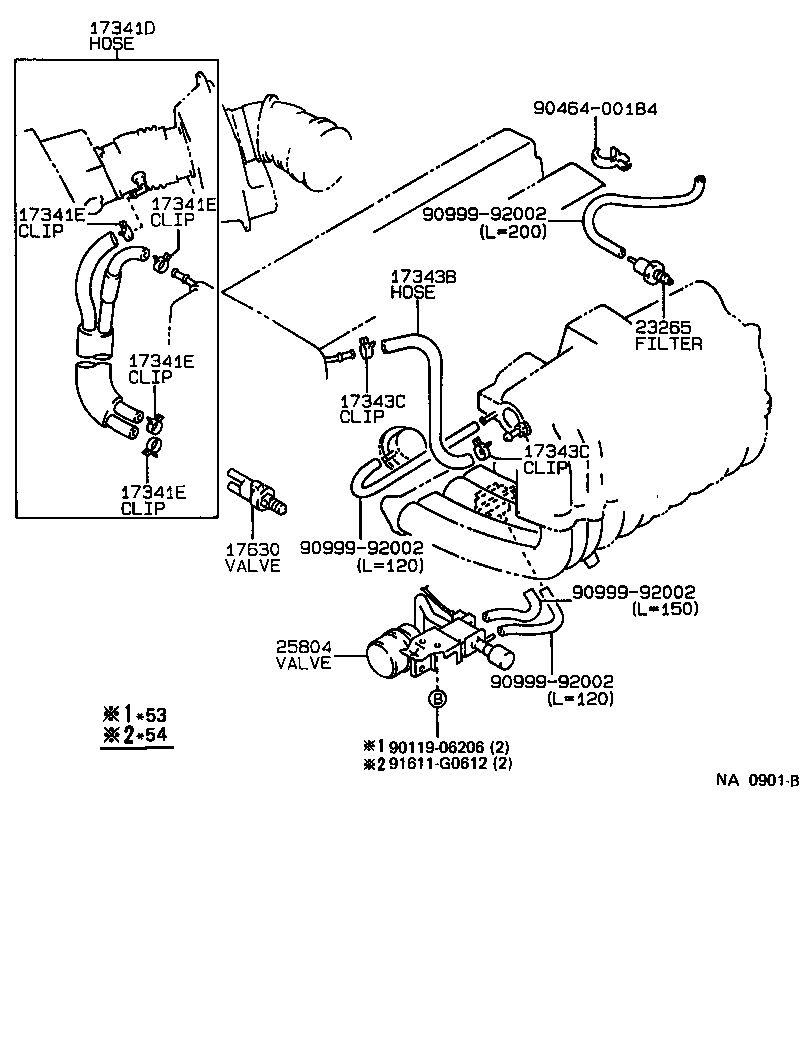

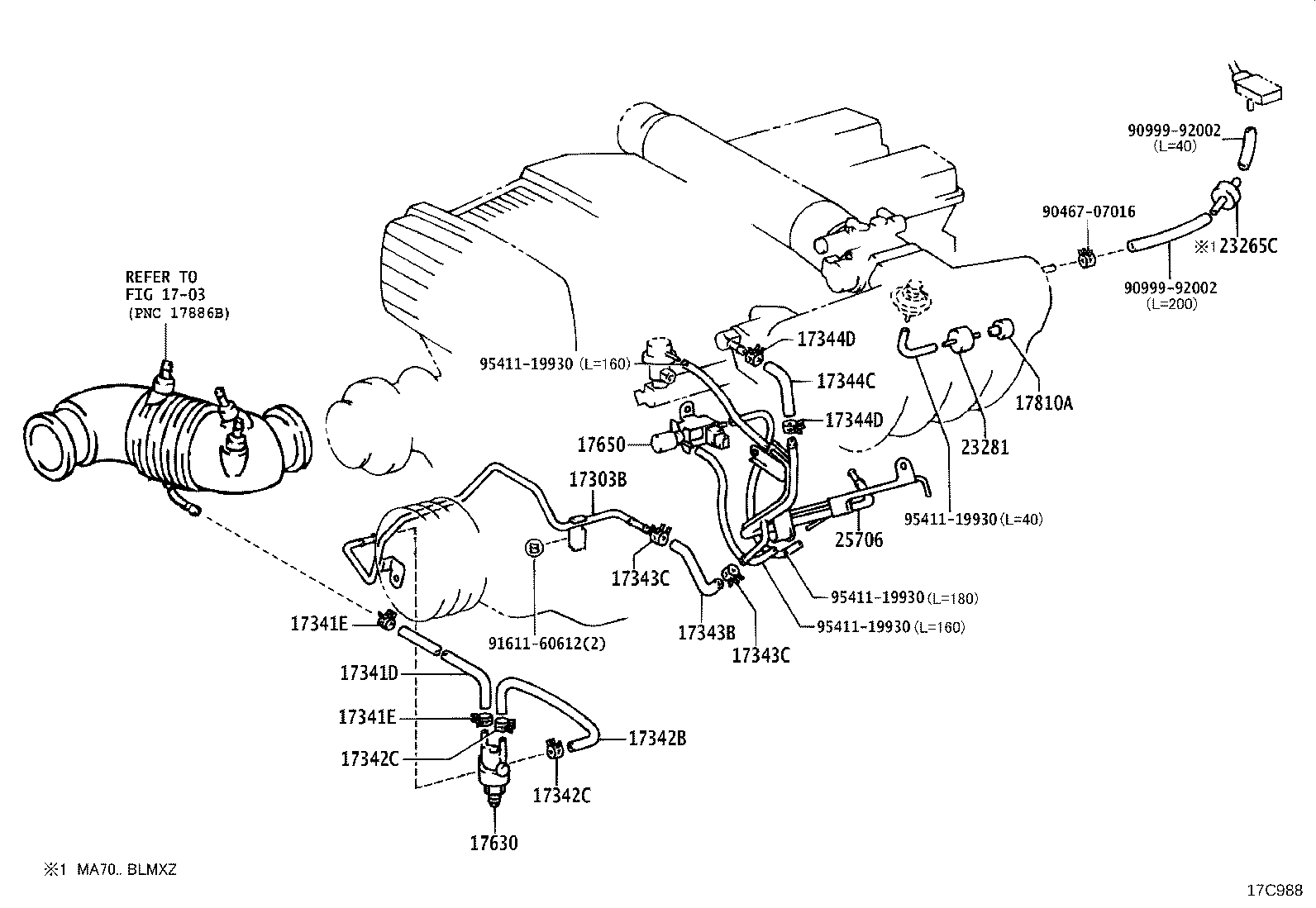

Figure MA9503A MA9503A 1988-08 → — Figure NA0825D NA0825D 1988-08 → 1990-08 Figure NA0901B NA0901B 1988-08 → — Figure NA0902B NA0902B 1988-08 → — Figure MA9503A MA9503A 1988-08 → — Figure MAE419A MAE419A 1990-08 → — Figure MA9503A MA9503A 1988-08 → — Figure 17C988 17C988 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23265C Filter, Gas
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25733A Pipe, Vacuum, NO.1
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
