Toyota Supra

1988-08 → 1993-05 · chassis GA70,JZA70,MA70 · catalogue 291120 · Japan

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 6 illustrations

Illustrations

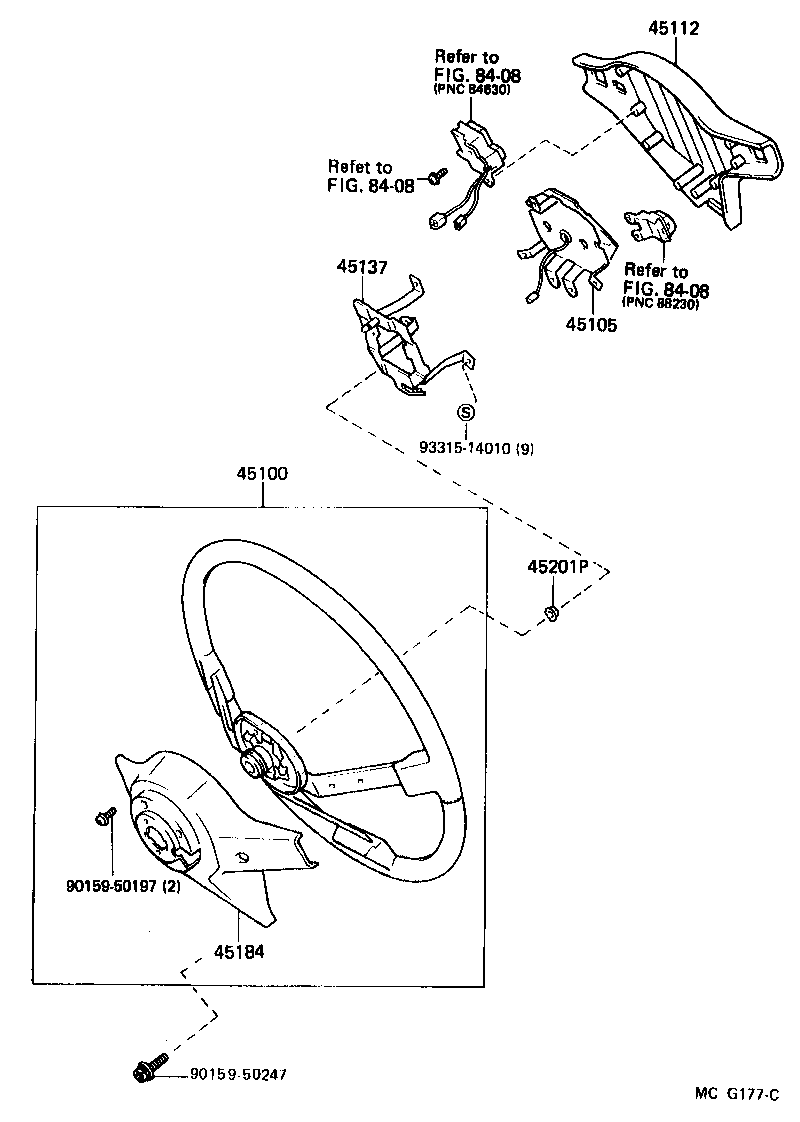

Figure MCG175D MCG175D 1988-08 → — Figure MCG177C MCG177C 1988-08 → — Figure MCG180A MCG180A 1988-08 → 1988-09 Figure MCG180A MCG180A 1989-02 → 1989-03 Figure MCG180A MCG180A 1990-08 → — Figure MCK982B MCK982B 1990-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45103 Hub Sub-assy, Steering Wheel
45105 Plate Sub-assy, Horn Button Contact, NO.1
45111 Wheel, Steering
45112 Pad, Steering Wheel
45130 Button Assy, Horn
45137 Plate, Horn Button Stop
45137A Plate, Horn Button Contact, NO.2
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
