Toyota Supra

1988-08 → 1993-05 · chassis GA70,JZA70,MA70 · catalogue 291120 · Japan

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

10 part groups · 3 illustrations

Illustrations

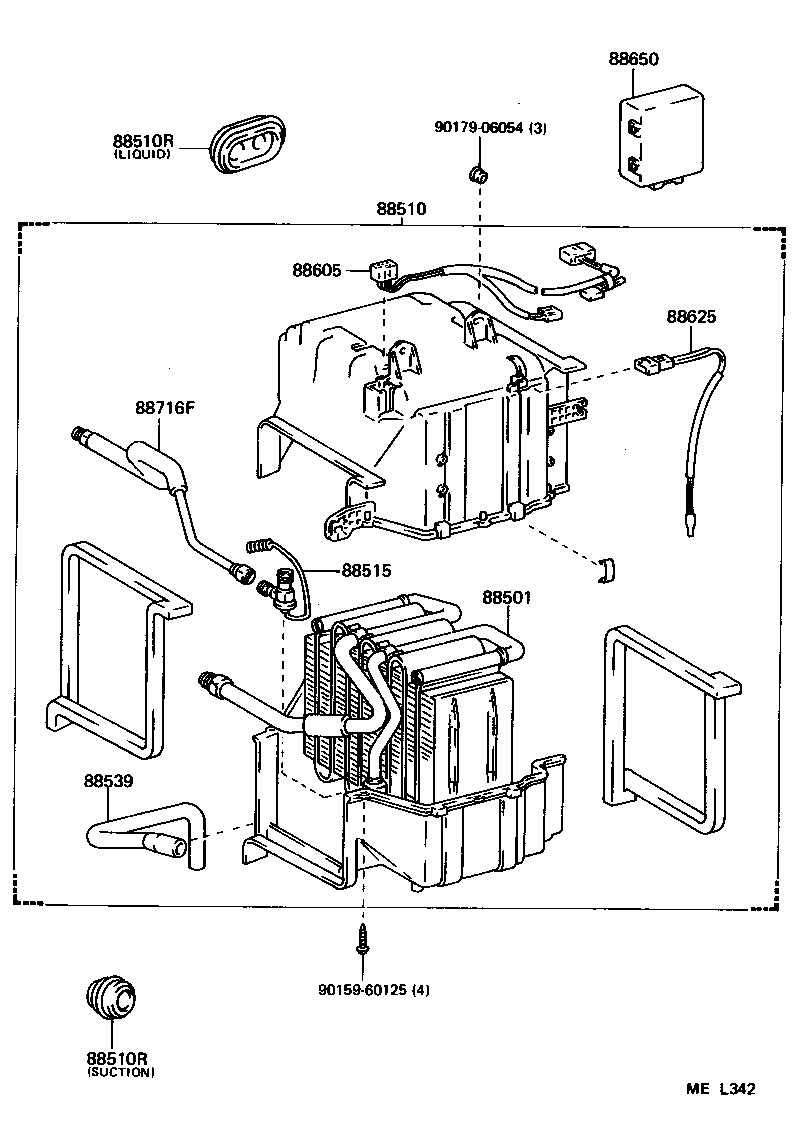

Figure MEM130B MEM130B 1988-08 → 1989-08 Figure MEM130B MEM130B 1989-08 → — Figure MEL342 MEL342 1989-08 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
