Toyota Supra
1988-08 → 1993-05 · chassis GA70,JZA70,MA70 · catalogue 291120 · Japan
Discontinued model
Data version 1993-11

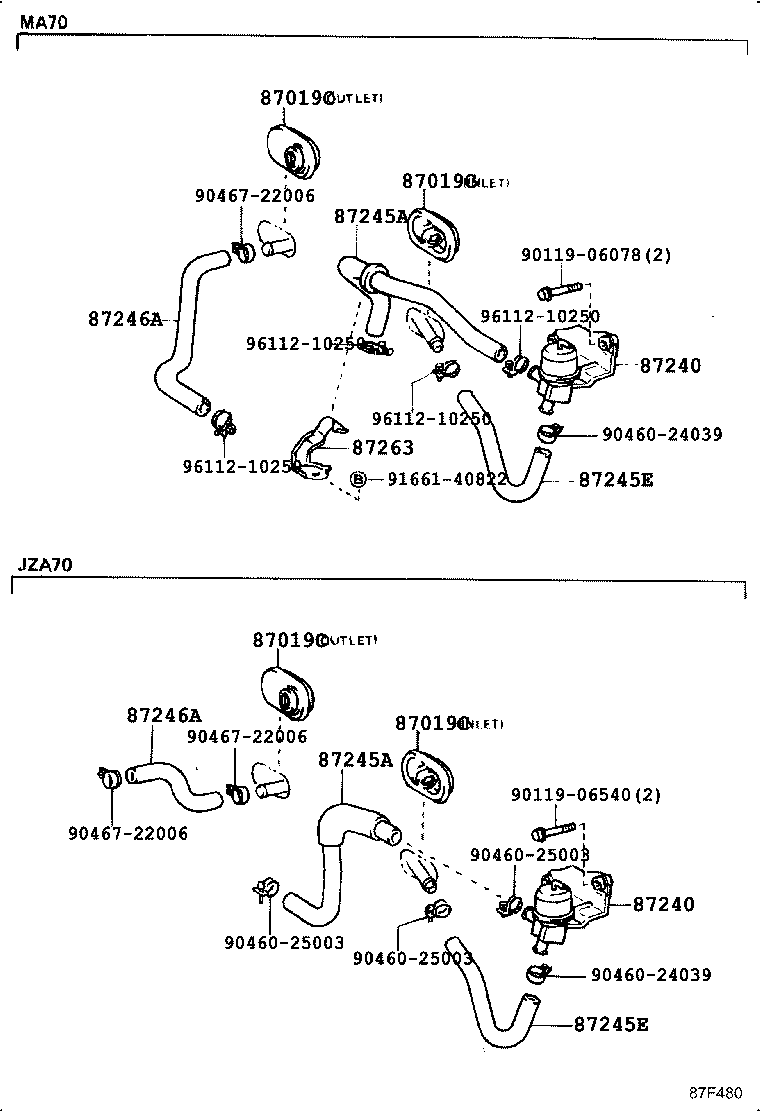

Heating & Air Conditioning - Water Piping
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019C | Grommet, Heater Hose |
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246E | Hose, Heater Water, Outlet E |
| 87249A | Pipe, Heater Water Outlet, A |
| 87263 | Bracket, Heater Water Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
