Toyota Supra
1988-08 → 1993-05 · chassis GA70,JZA70,MA70 · catalogue 291120 · Japan
Discontinued model
Data version 1993-11

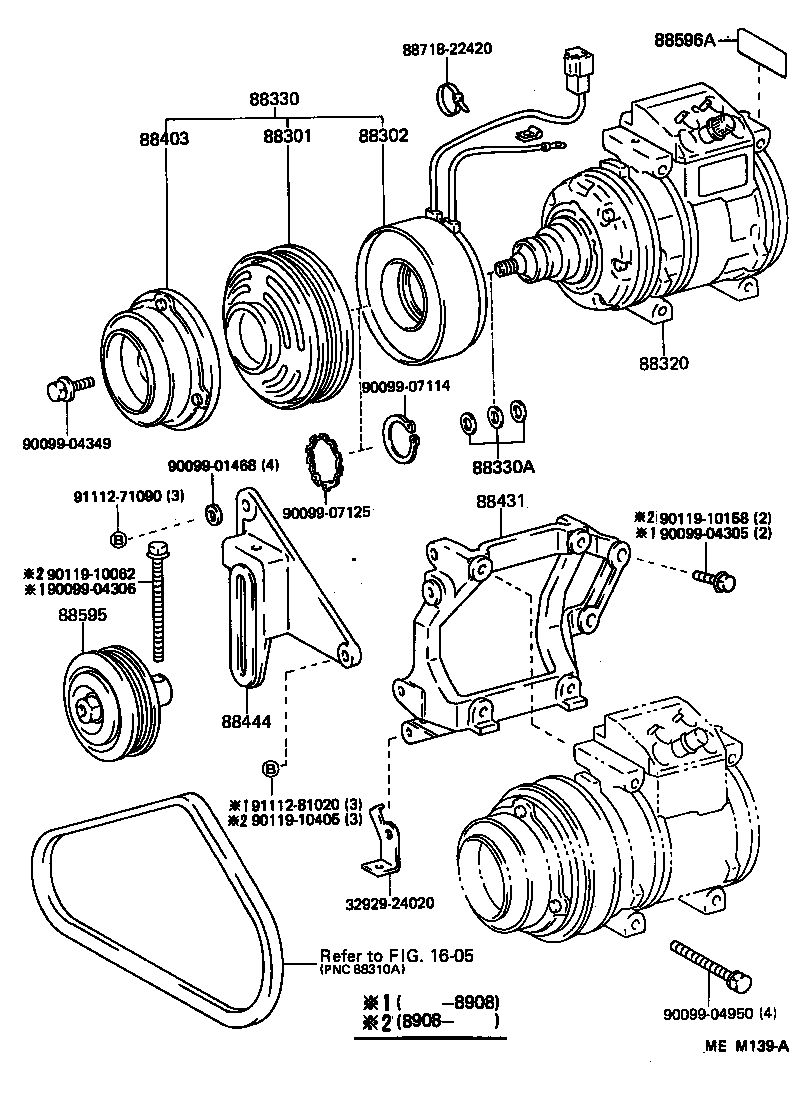

Heating & Air Conditioning - Compressor
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330 | Clutch Assy, Magnet |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596A | Plate, Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
