Toyota Supra

1993-05 → 2002-08 · chassis JZA80 · catalogue 291130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 4 illustrations

Illustrations

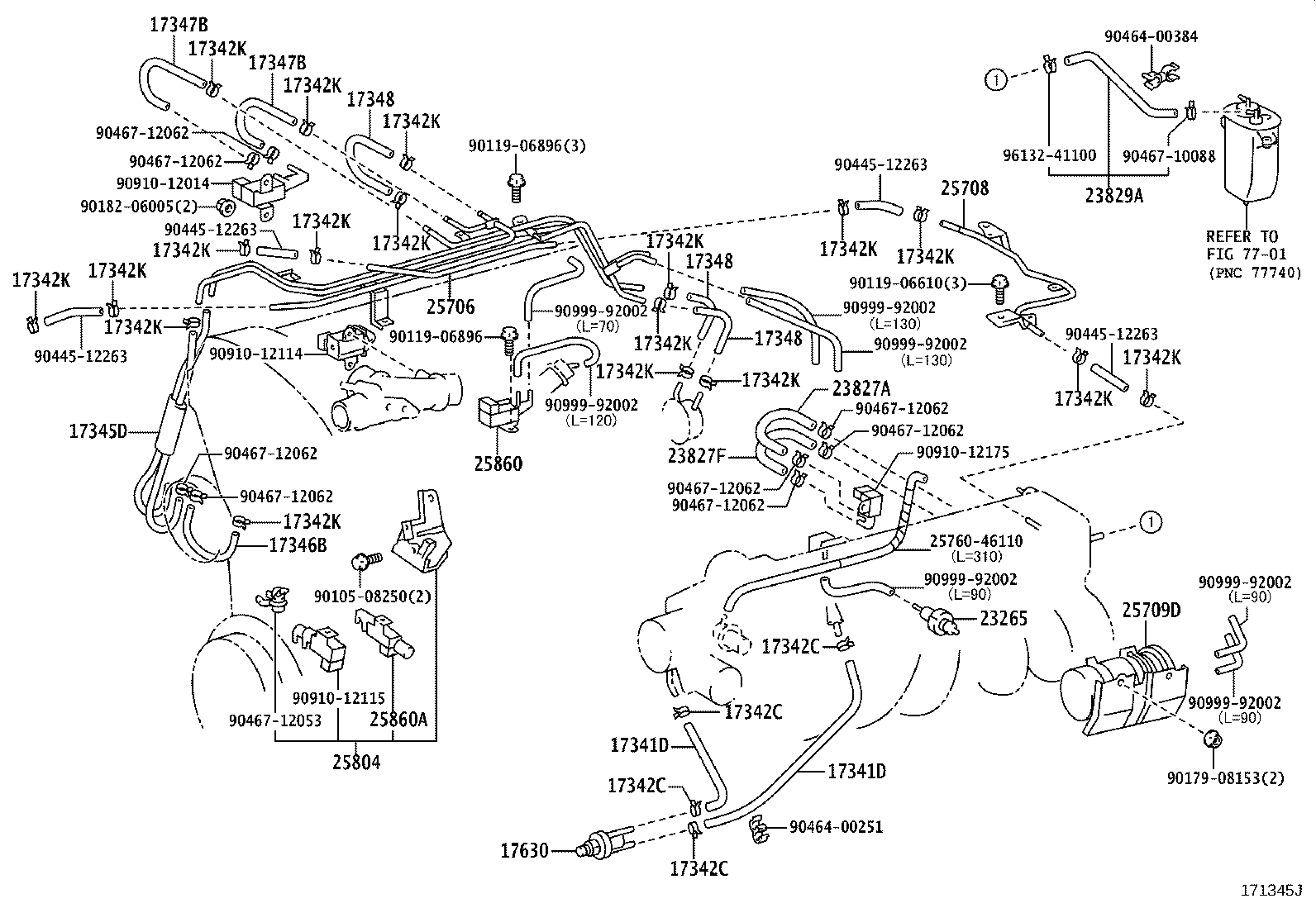

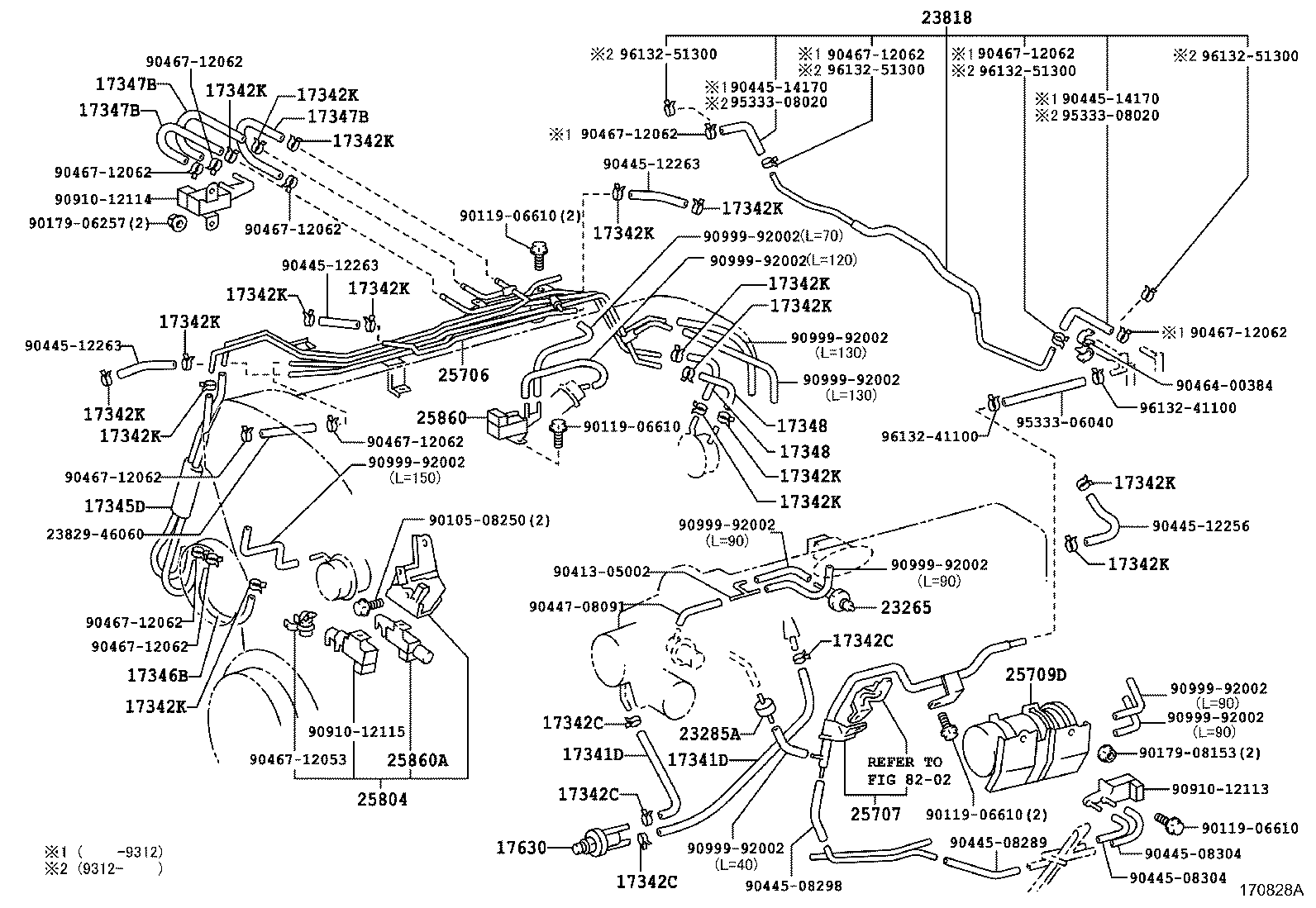

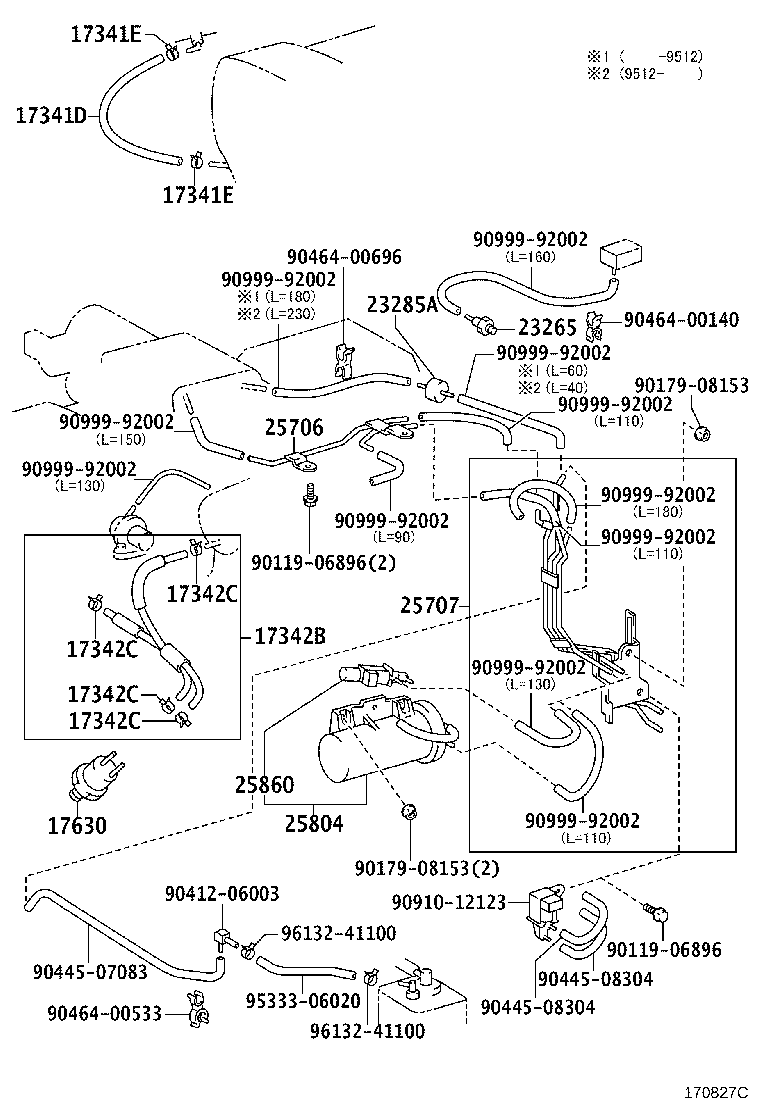

Figure 170020 170020 1993-05 → — Figure 170827C 170827C 1993-05 → — Figure 170828A 170828A 1993-05 → 1997-09 Figure 171345J 171345J 1997-09 → —

Part groups

PNCDescription
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342K Clip(FOR VACUUM HOSE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17348 Hose, Air, NO.8
17630 Valve Assy, Air Control
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709D Tank Sub-assy, Pressure Surge
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
