Toyota Supra
1993-05 → 2002-08 · chassis JZA80 · catalogue 291130 · Japan
Discontinued model
Data version 2003-01
Indicator

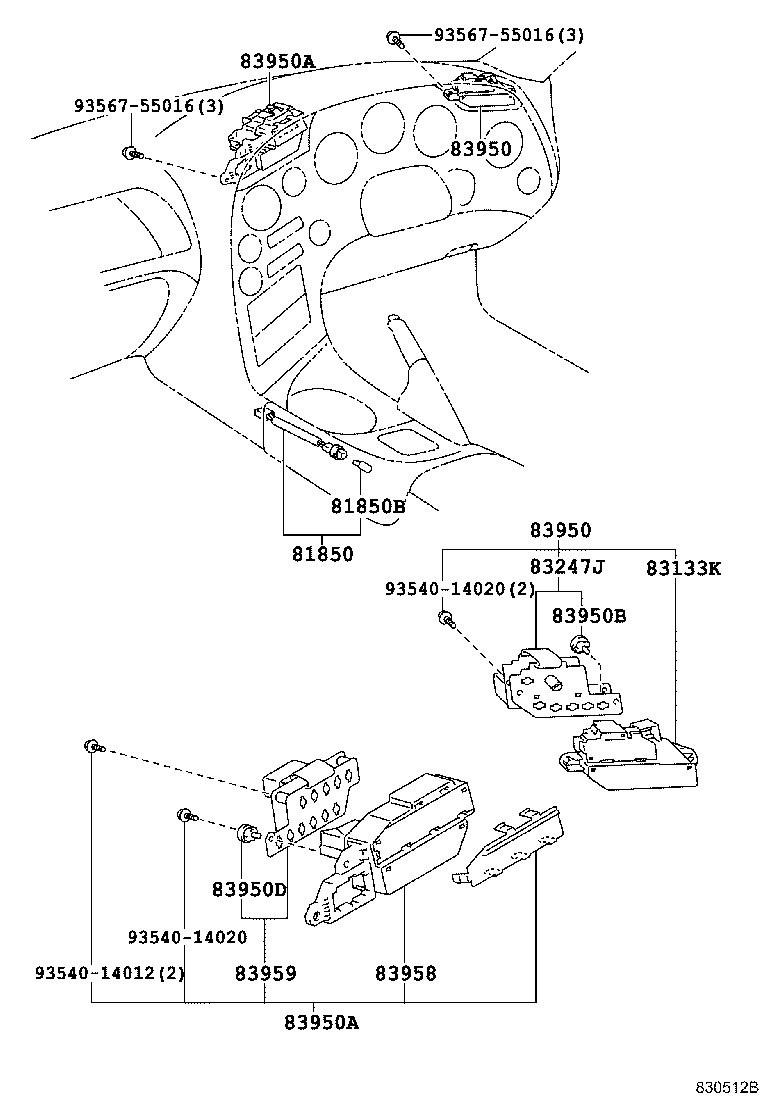

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850 | Lamp Assy, Indicator |
| 81850B | Bulb, Indicator Lamp |
| 83132C | Case, Telltale Lamp |
| 83133K | Plate, Telltale Lamp |
| 83133L | Plate Sub-assy, Telltale Lamp |
| 83138K | Glass, Telltale Lamp |
| 83247J | Circuit Sub-assy, Telltale Lamp |
| 83291A | Computer, Combination Meter |
| 83950 | Lamp Assy, Telltale |
| 83950A | Lamp Assy, Telltale |
| 83950B | Bulb, Telltale Lamp |
| 83950D | Bulb, Telltale Lamp |
| 83950E | Socket, Telltale Lamp |
| 83958 | Case, Telltale Lamp |
| 83959 | Plate, Telltale Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
