Toyota Supra

1993-05 → 2002-08 · chassis JZA80 · catalogue 291130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Traction Control

10 part groups · 2 illustrations

Illustrations

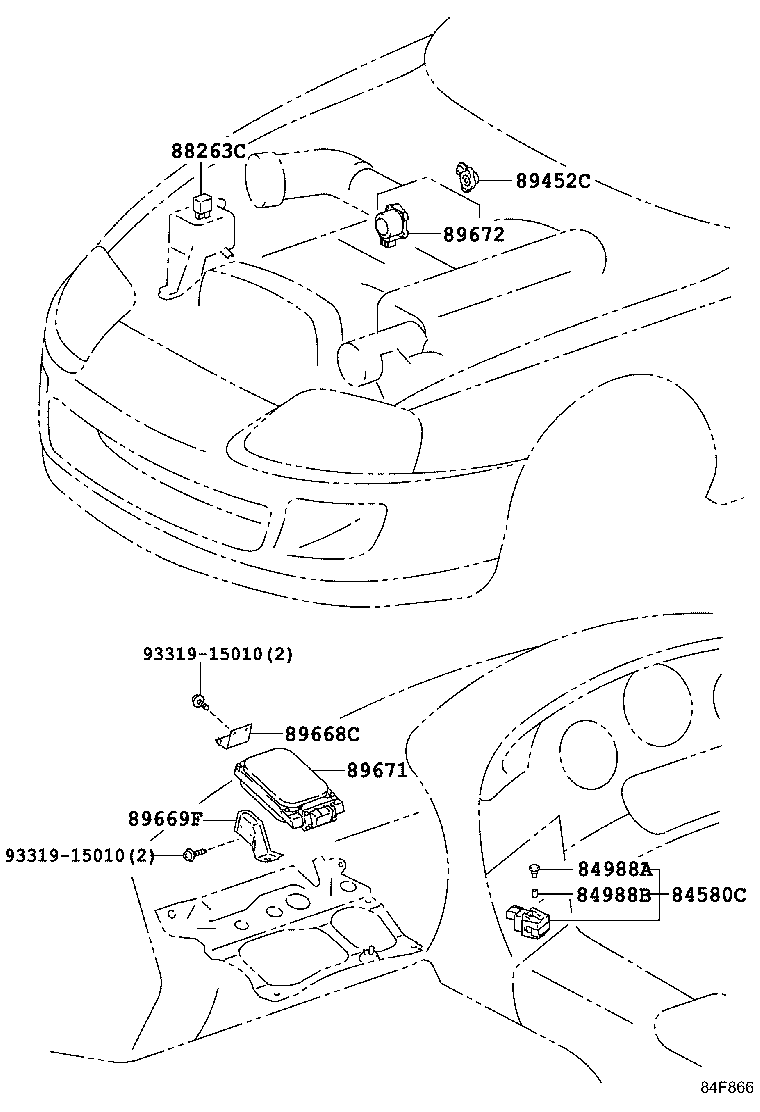

Figure 84F865 84F865 1993-05 → 1996-05 Figure 84F866 84F866 1996-05 → —

Part groups

PNCDescription
84580C Switch Assy, Throttle Position
84580D Bulb, Throttle Position Switch
84988A Bulb, Traction Control Switch
84988B Cap, Traction Control Swich Bulb
88263C Relay, Slip Control
89452C Sensor, Throttle Position
89668C Bracket, Slip Control Computer, NO.2
89669F Bracket, Slip Control Computer, NO.3
89671 Computer, Throttle Control
89672 Motor, Throttle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
