Roof Headlining & Silencer Pad

5 part groups · 4 illustrations

Illustrations

Figure 644550A

644550A 2019-03 → —

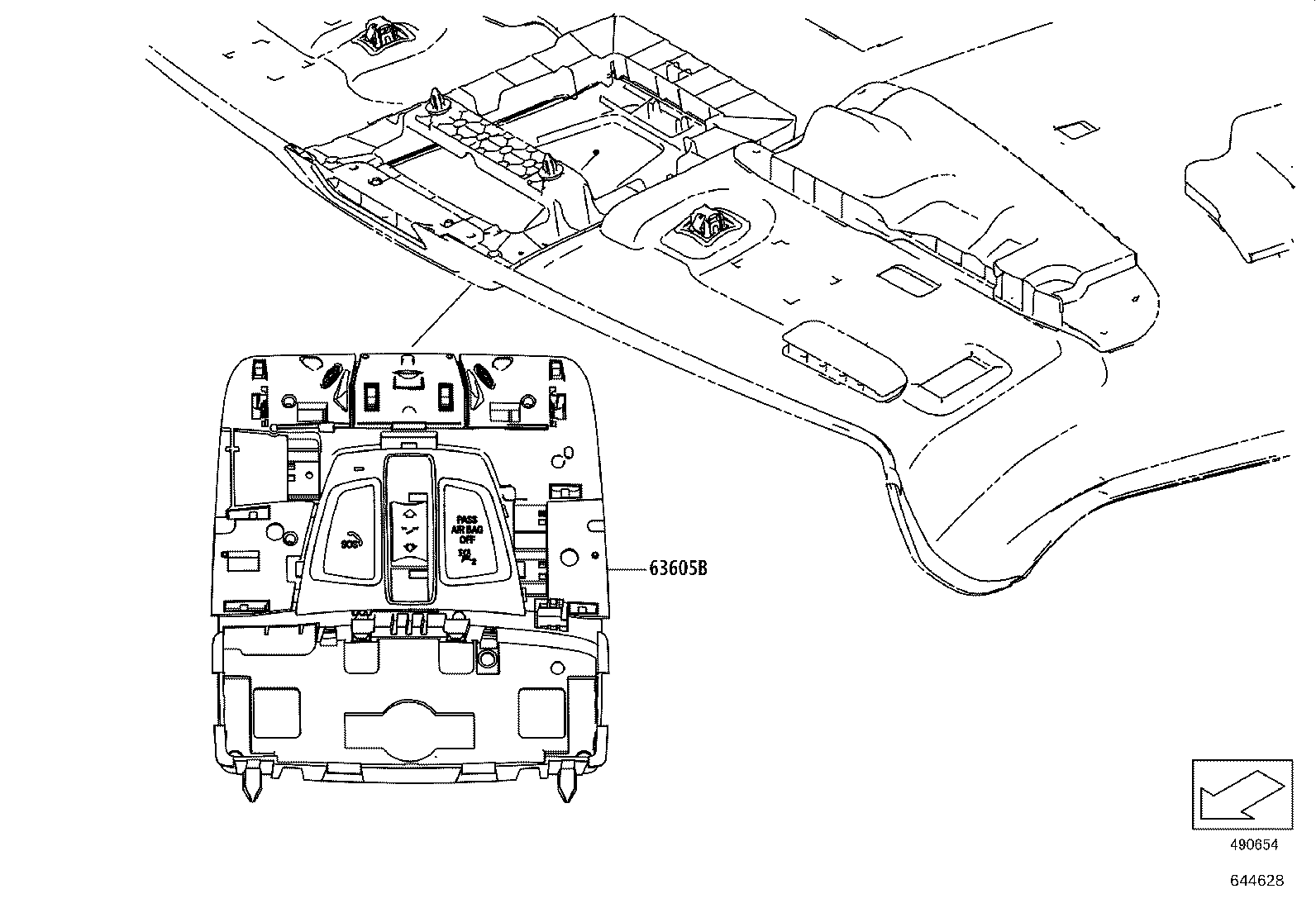

644628 2019-03 → —

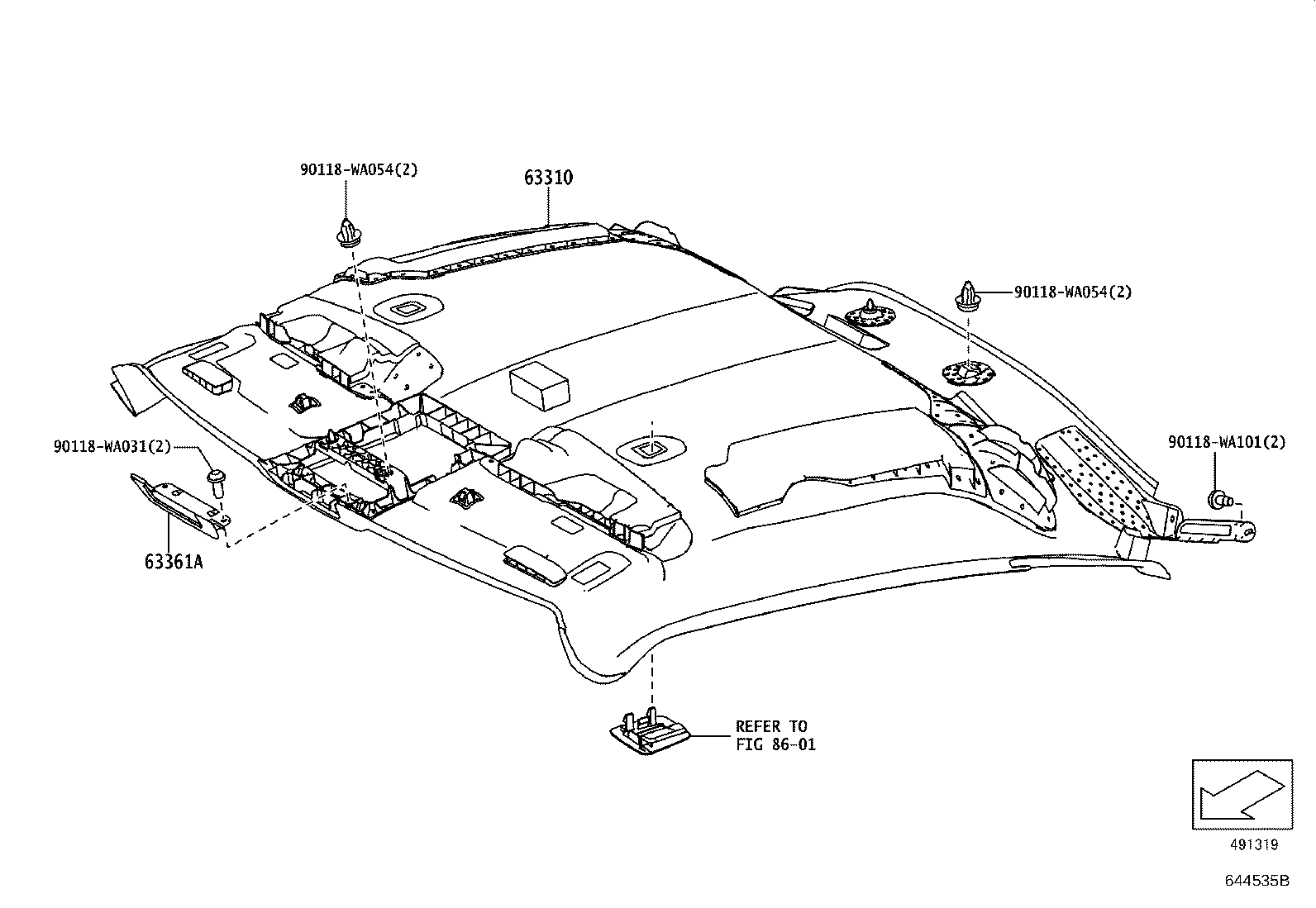

Figure 644535A

644535A 2019-03 → —

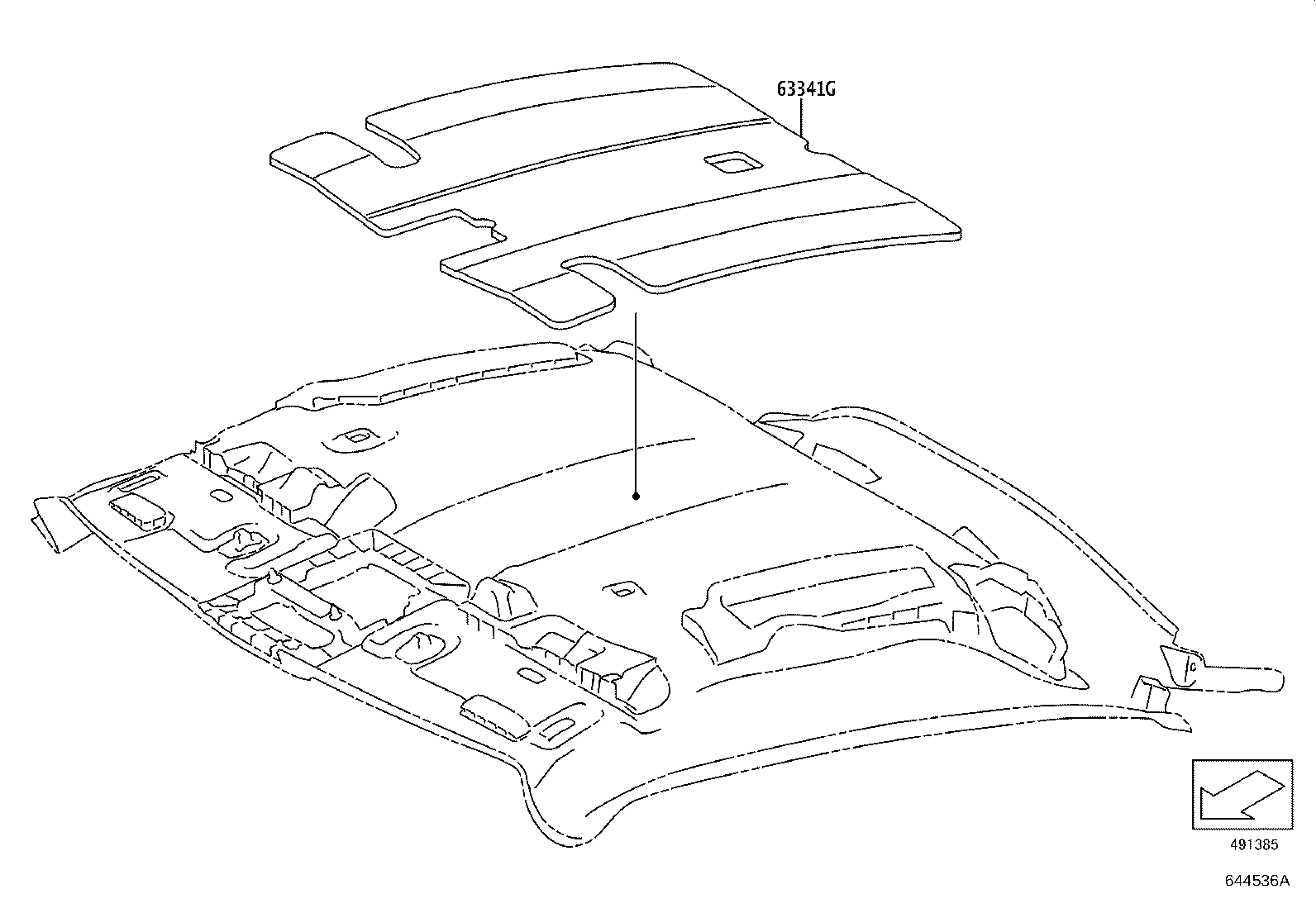

Figure 644536A

644536A 2019-03 → —

Part groups

PNC	Description
63310	Headlining Assy, Roof
63341G	Pad, Roof Silencer
63361A	Support, Roof Headlining
63605B	Box Sub-assy, Roof Console
81261G	Cover, Roof Console Box

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
