Toyota Supra

2019-03 → present · chassis DB02,22,42,82 · catalogue 291140 · Japan

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

12 part groups · 3 illustrations

Illustrations

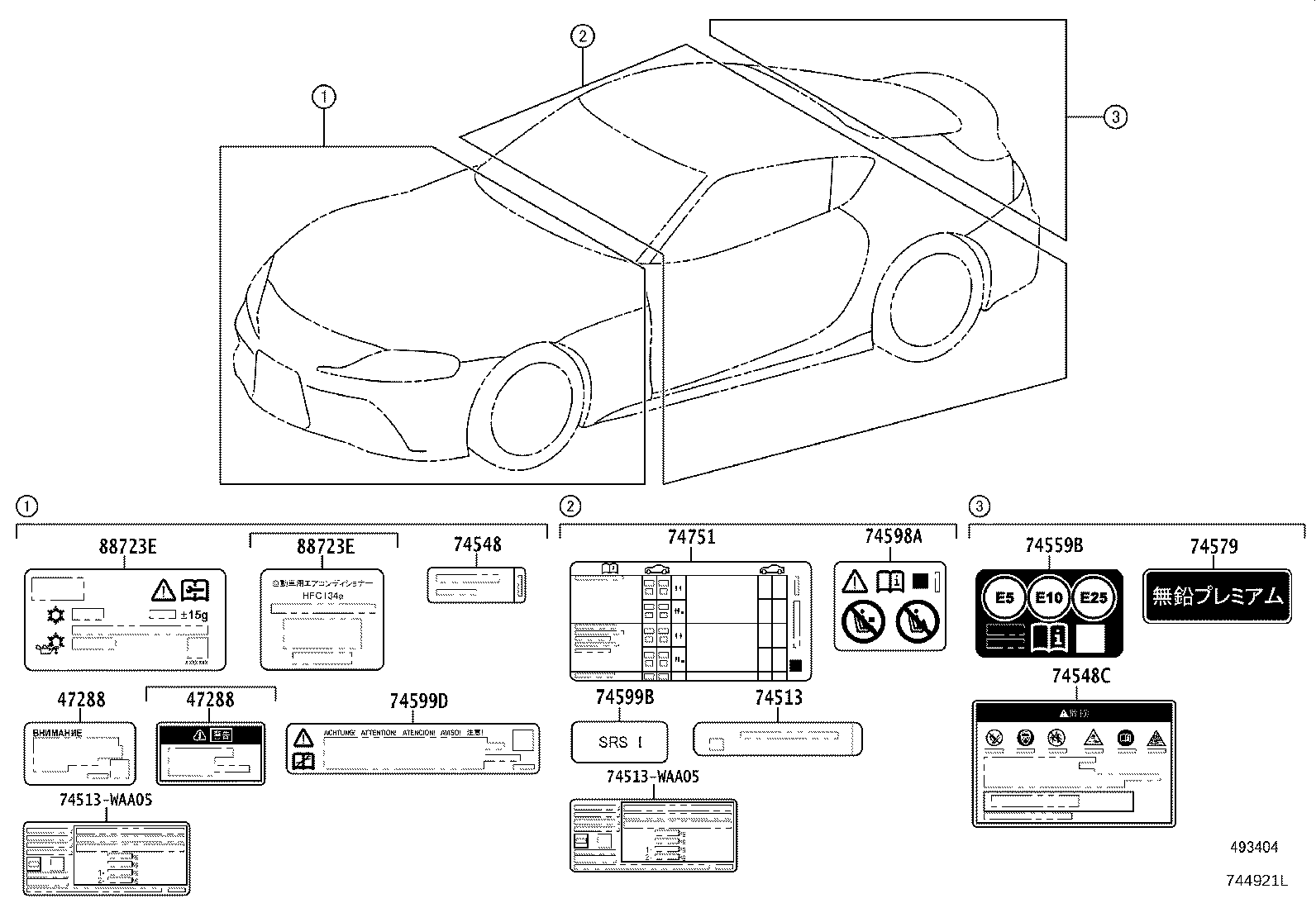

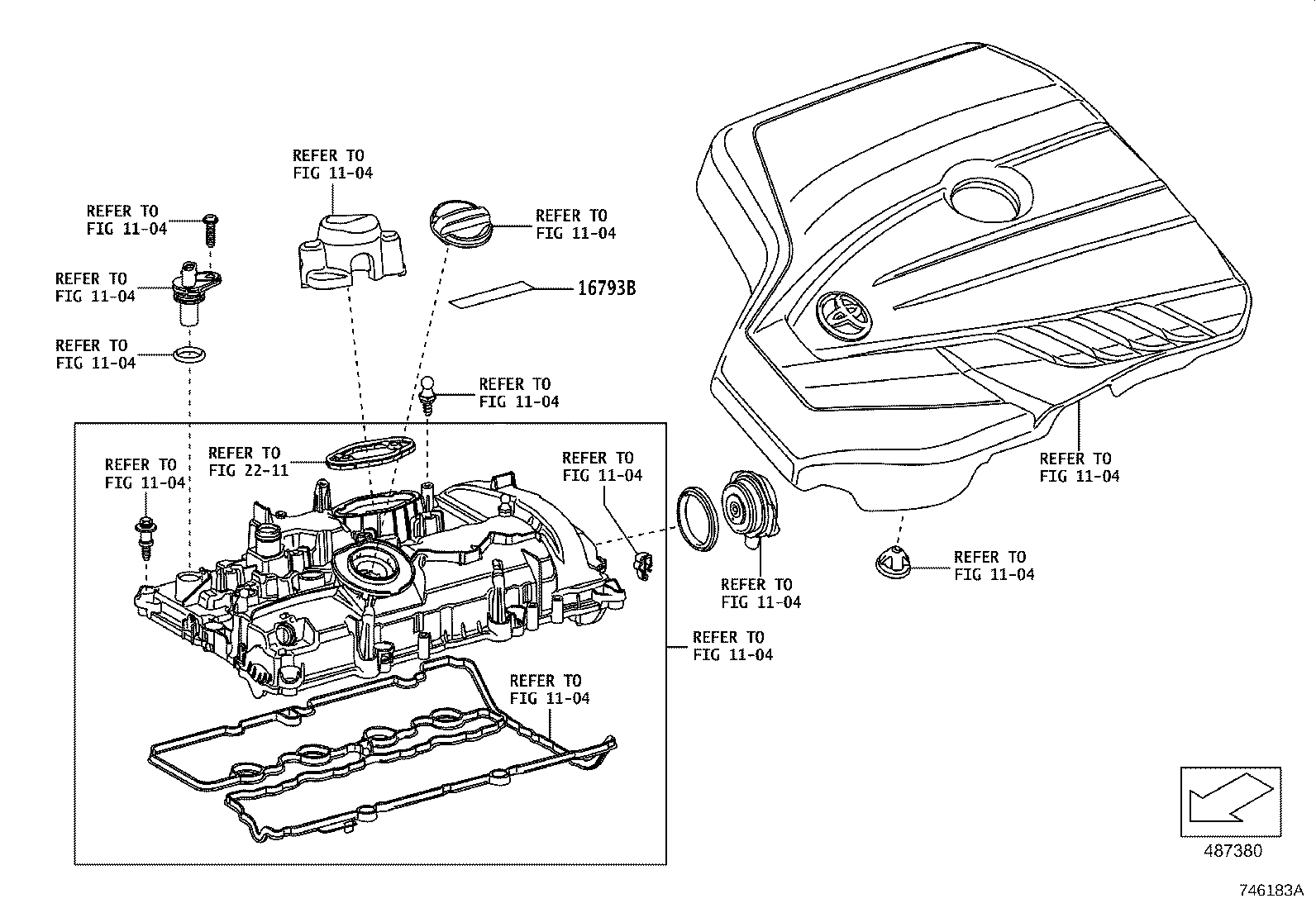

Figure 746182A 746182A 2019-03 → — Figure 746183A 746183A 2019-03 → — Figure 744921L 744921L 2019-03 → —

Part groups

PNCDescription
16793B Label, Cooling Fan Information
47288 Label, Brake Fluid Notice
74513 Label, Identification Number Information
74548 Plate, Body Caution
74548C Label, Battery Cover Caution
74559B Label, Fuel Information
74579 Plate, Unleaded Fuel Caution
74598A Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74599D Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
