Toyota Supra
2019-03 → present · chassis DB02,22,42,82 · catalogue 291140 · Japan
Supported model
Data version 2020-07
Windshield Wiper
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

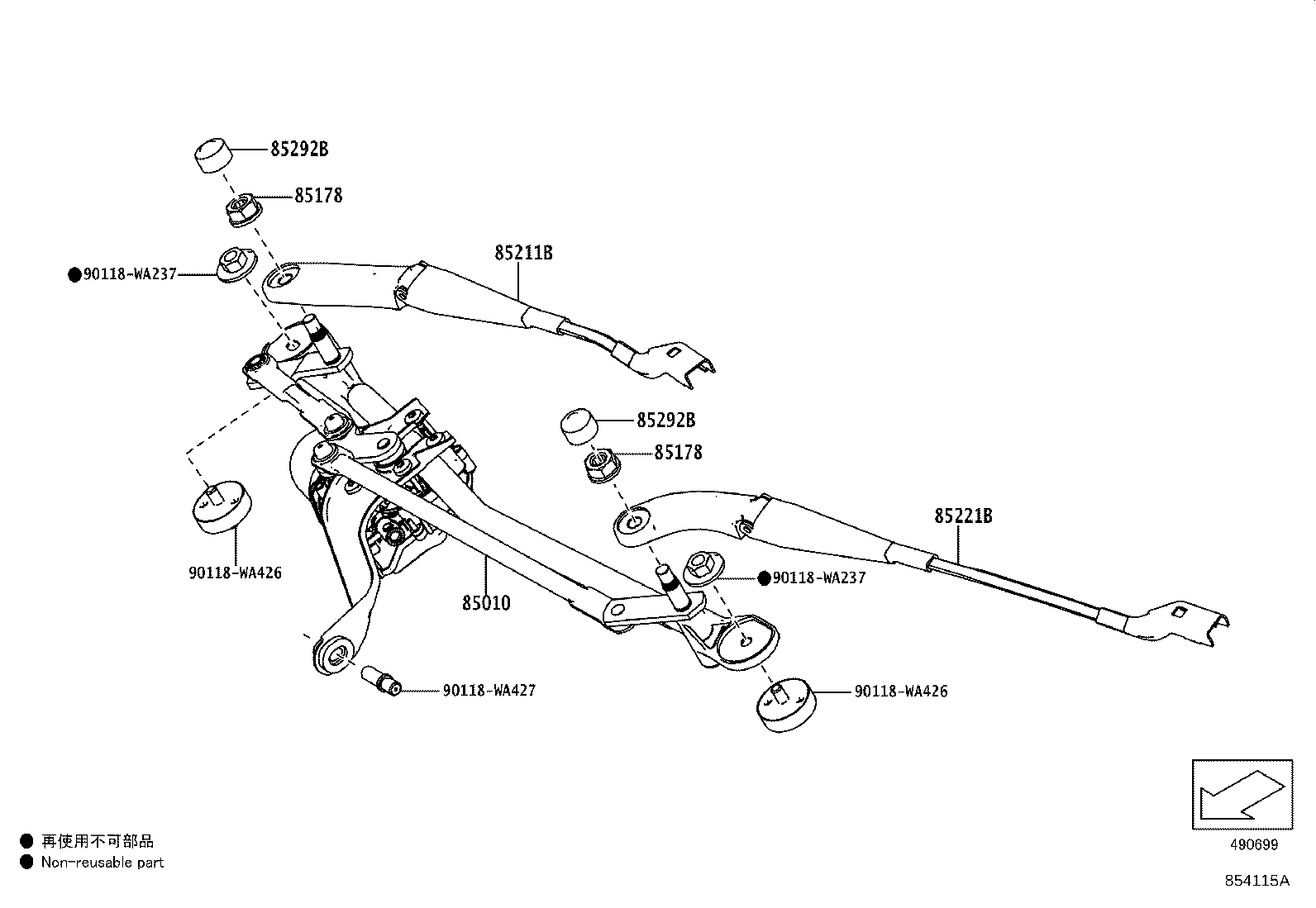

| 85010 | Motor & Link Assy, FR Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85201A | Blade Set, Wiper, Winter |
| 85211B | Arm, Front Wiper, RH |
| 85220 | Blade Assy, Windshield Wiper |
| 85221B | Arm, Front Wiper, LH |
| 85292B | Cap, Front Wiper Arm Head |

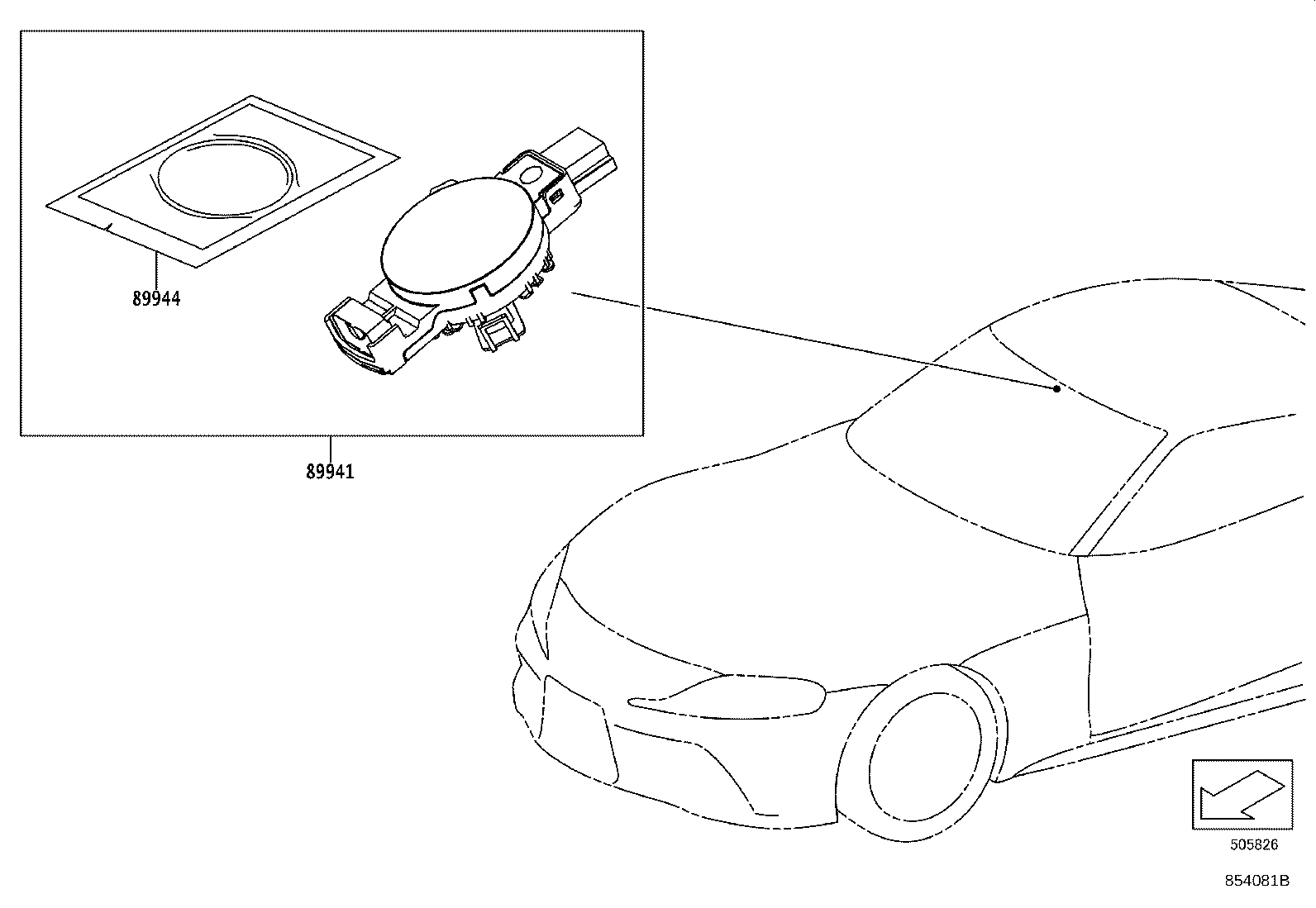

| 89941 | Sensor, Rain |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
