Toyota Supra

2022-07 → present · chassis DB06,26,86 · catalogue 291150 · Japan

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

5 part groups · 4 illustrations

Illustrations

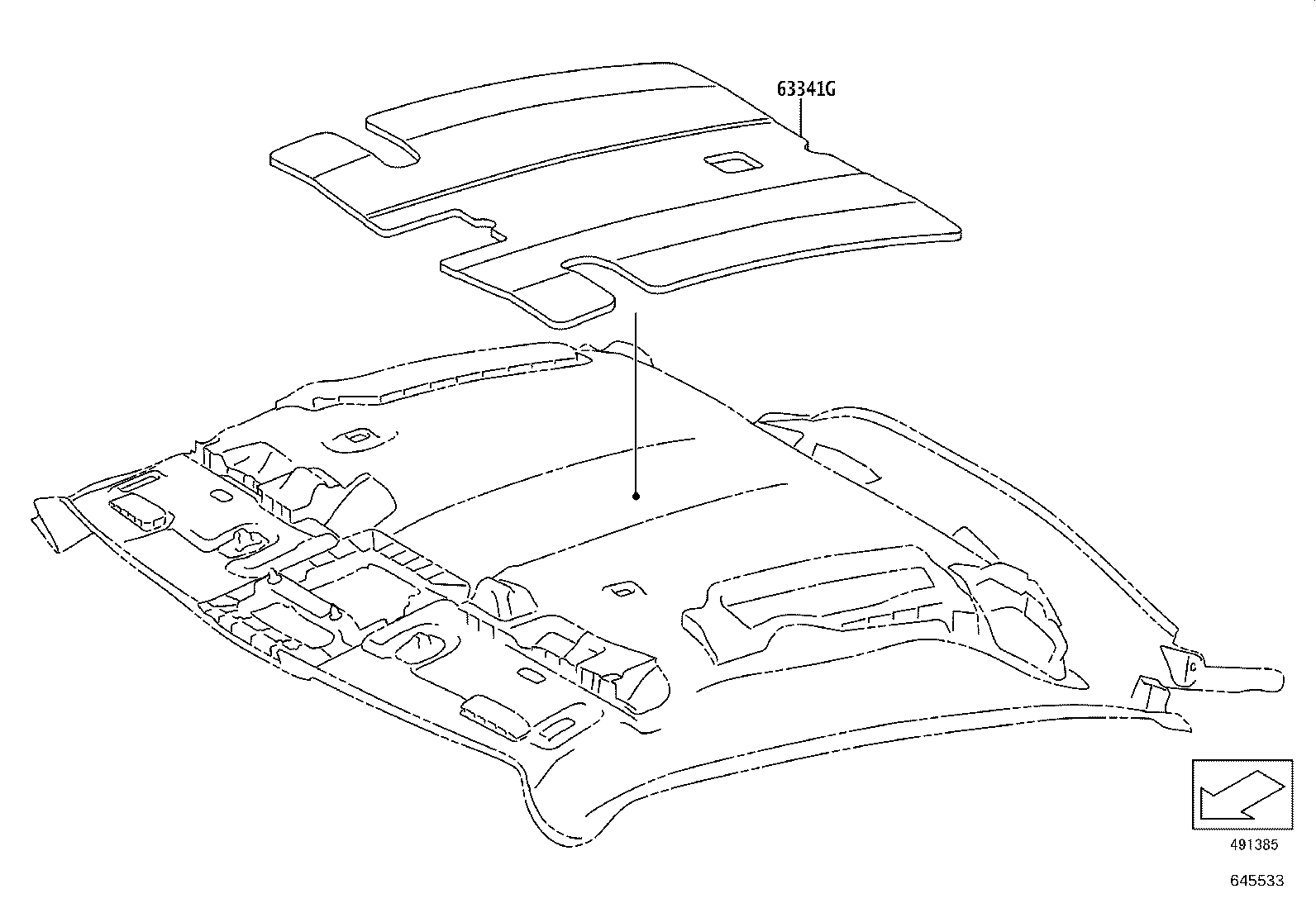

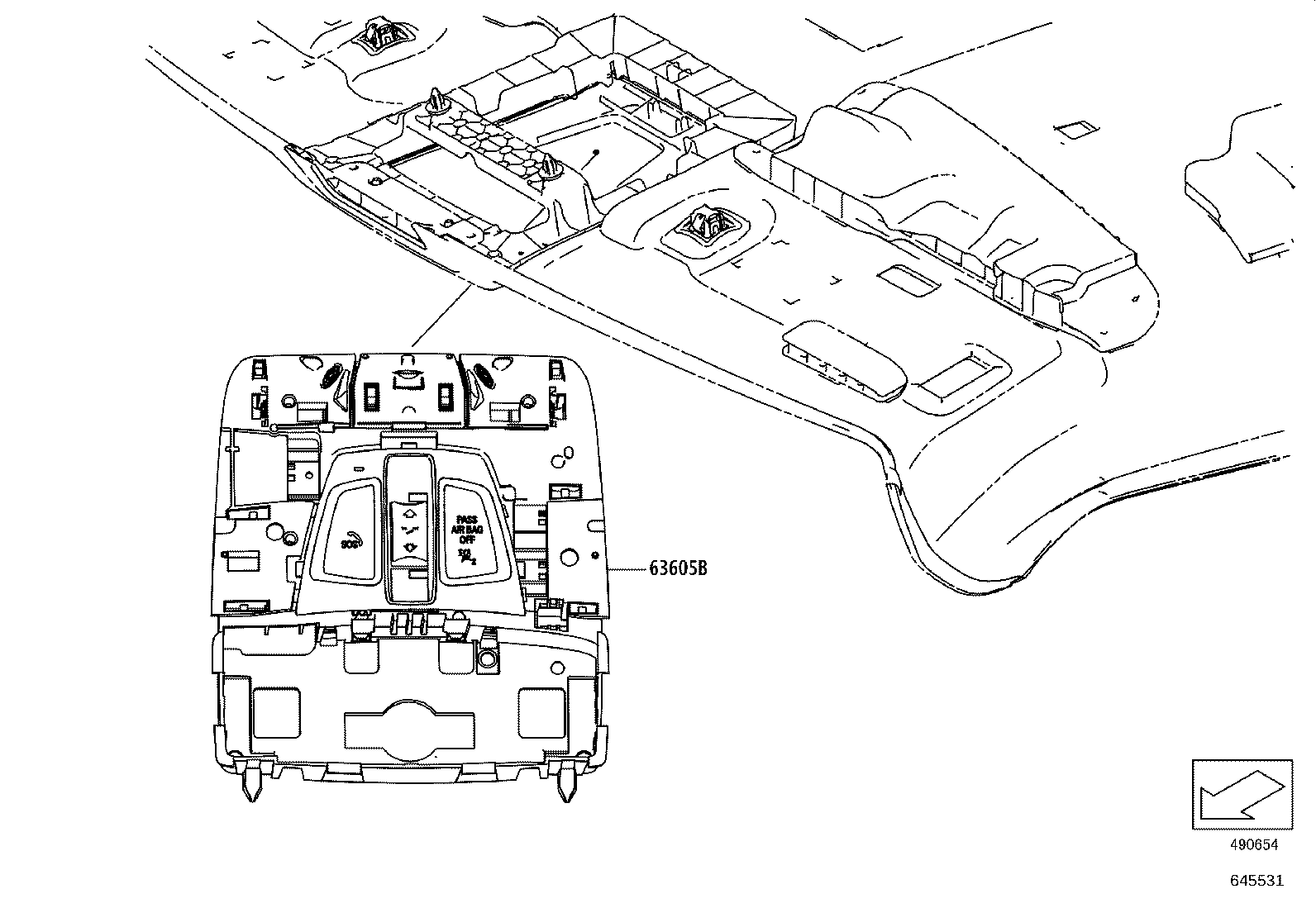

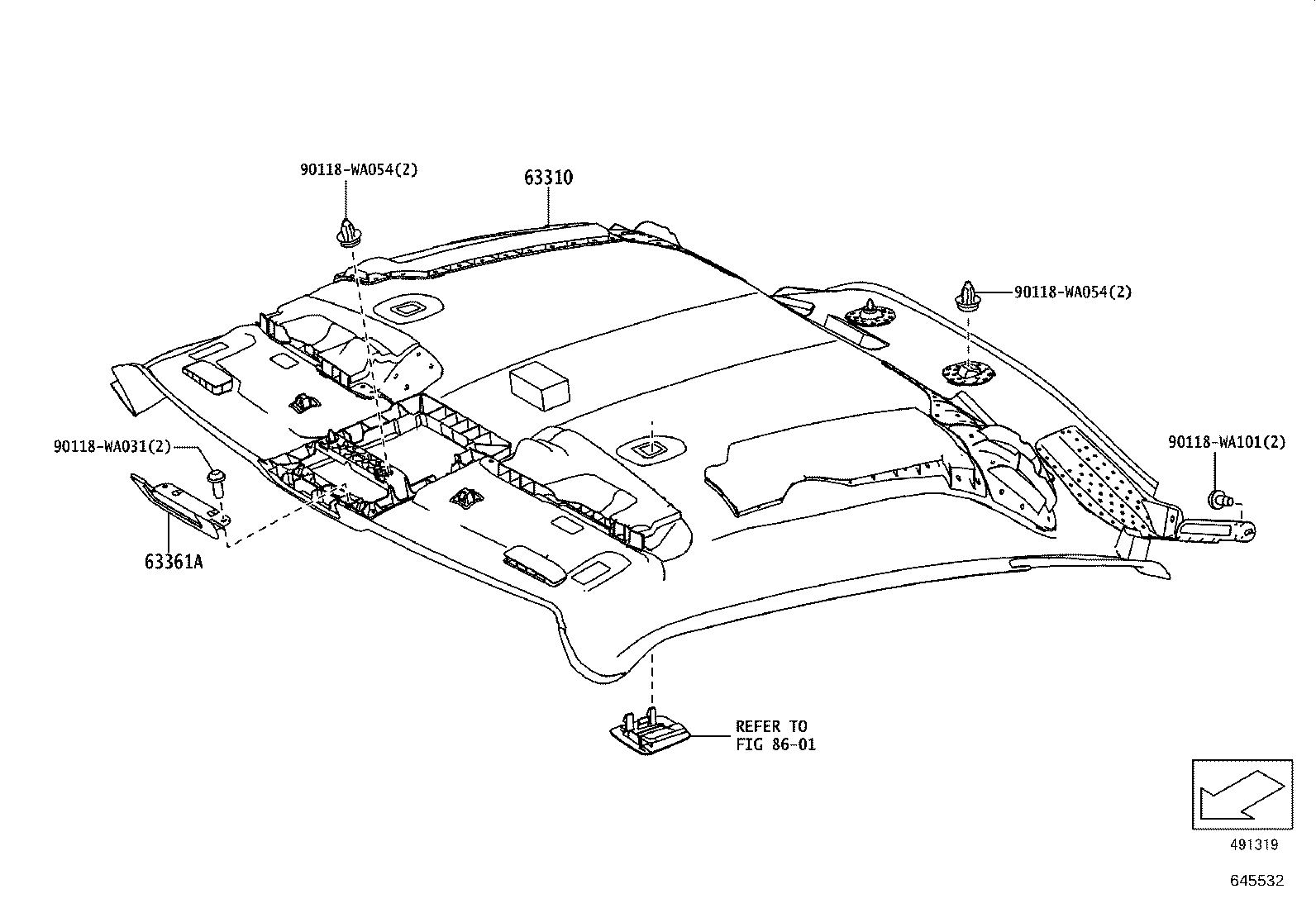

Figure 645530 645530 2022-07 → — Figure 645531 645531 2022-07 → — Figure 645532 645532 2022-07 → — Figure 645533 645533 2022-07 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341G Pad, Roof Silencer
63361A Support, Roof Headlining
63605B Box Sub-assy, Roof Console
81261G Cover, Roof Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
