Toyota Supra

2022-07 → present · chassis DB06,26,86 · catalogue 291150 · Japan

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 3 illustrations

Illustrations

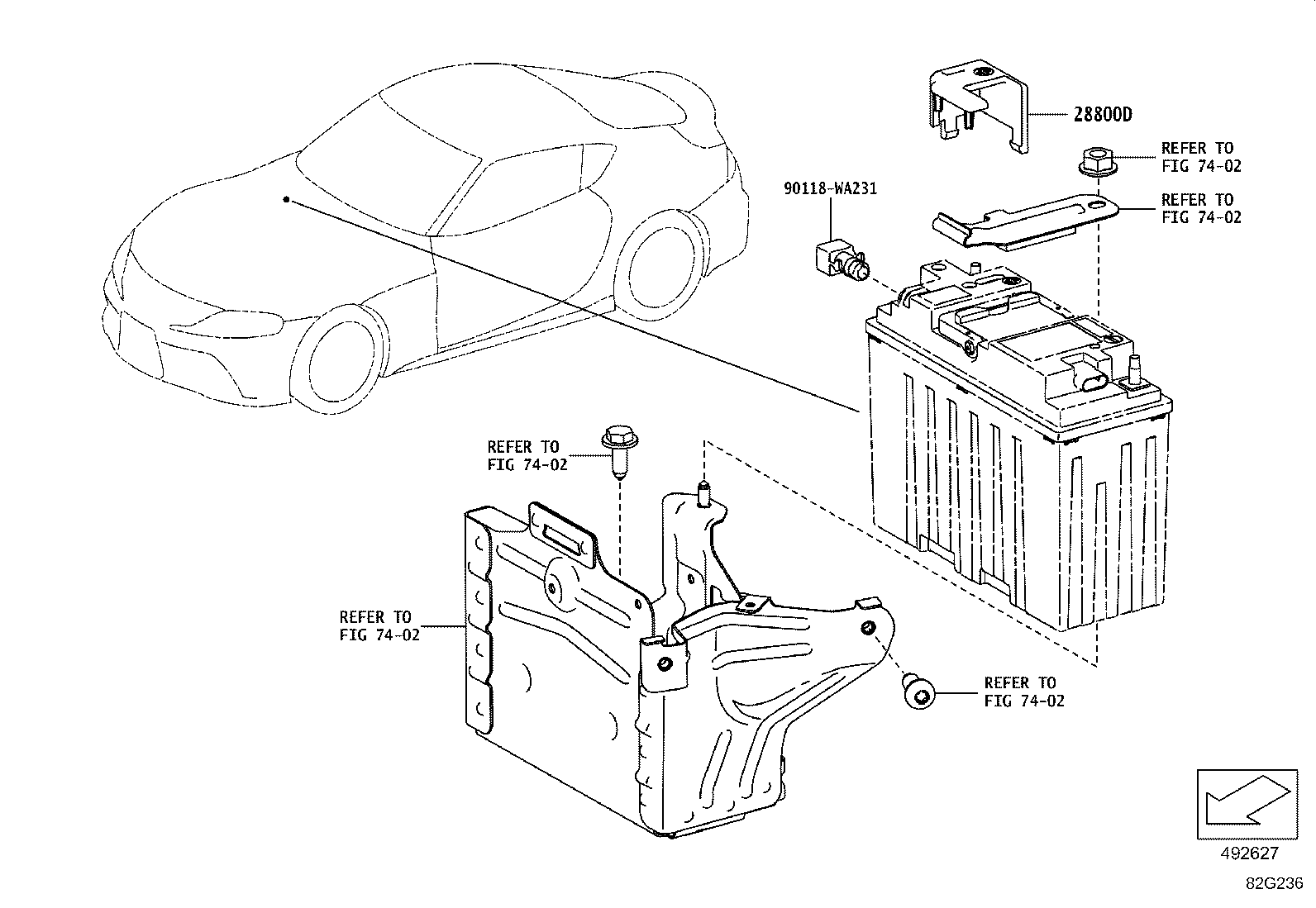

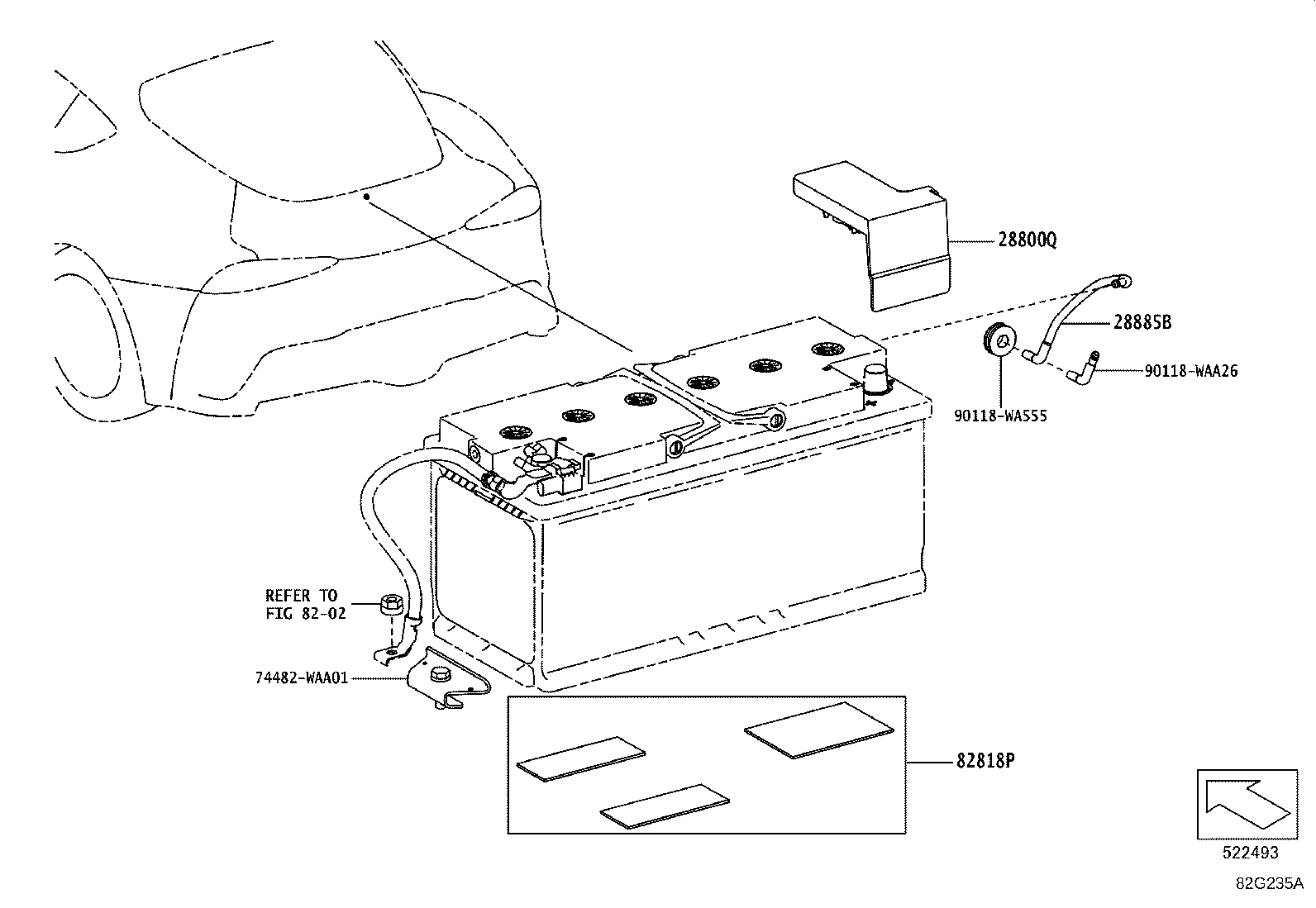

Figure 82G234 82G234 2022-07 → — Figure 82G235A 82G235A 2022-07 → — Figure 82G236 82G236 2022-07 → —

Part groups

PNCDescription
28800 Battery
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800Q Cover, Connector(FOR BATTERY)
28885B Hose, Battery
82818P Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
