Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 2 illustrations

Illustrations

Figure 533048G

533048G 2009-07 → 2013-01

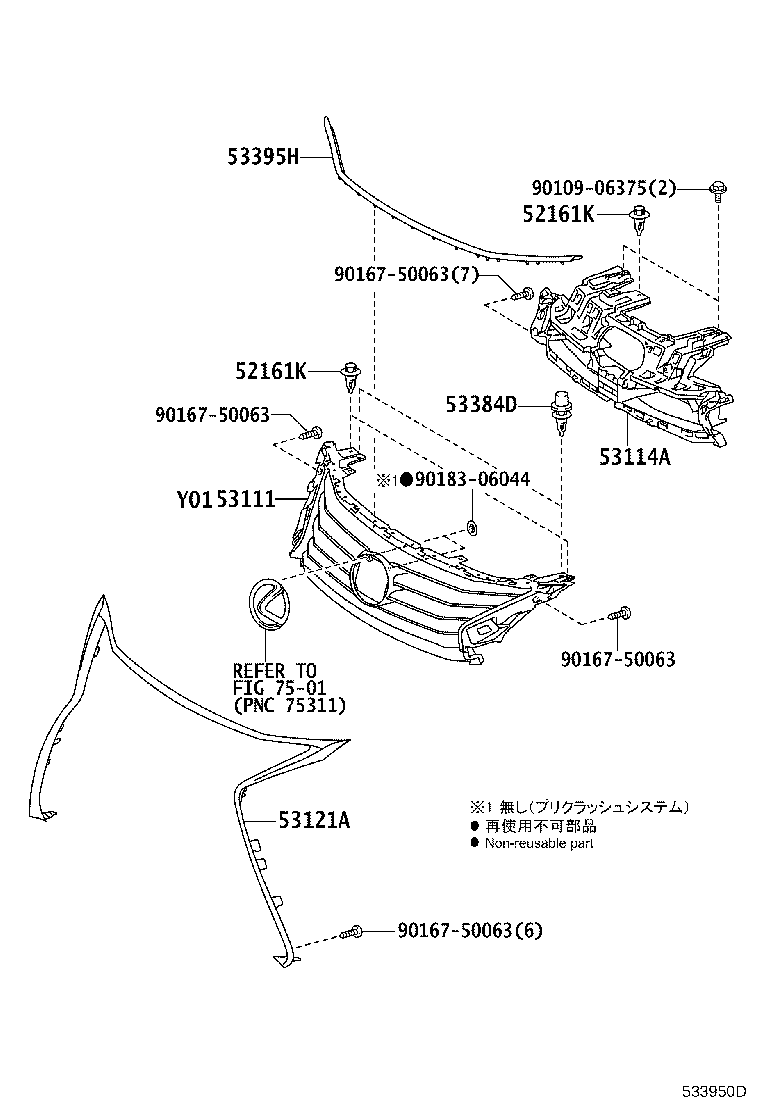

Figure 533950D

533950D 2013-01 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
52161R	Piece, Front Bumper
53111	Grille, Radiator
53112F	Grille, Radiator, Inside
53114A	Grille, Radiator, Inner
53121A	Moulding, Radiator Grille
53384D	Cushion, Hood, Center
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
