Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

12 part groups · 2 illustrations

Illustrations

Figure 816500A

816500A 2009-07 → 2013-01

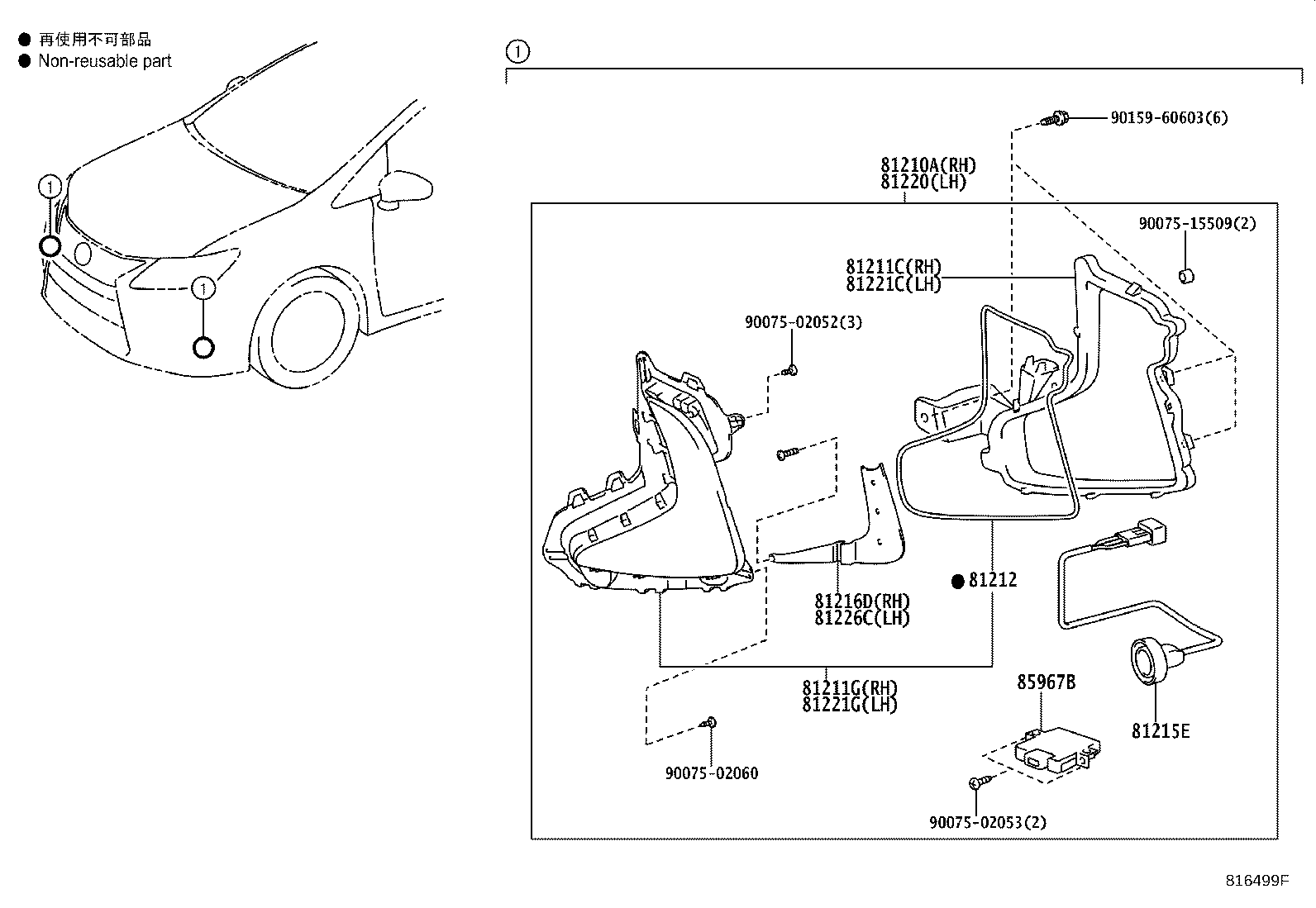

Figure 816499F

816499F 2013-01 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81211G	Lens, Fog Lamp, RH
81212	Gasket, Fog Lamp Lens
81215E	Cord, Fog Lamp
81216D	Accessory, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81221G	Lens, Fog Lamp, LH
81226C	Accessory, Fog Lamp, LH
85967B	Computer, Light Control Led

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
