Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

21 part groups · 2 illustrations

Illustrations

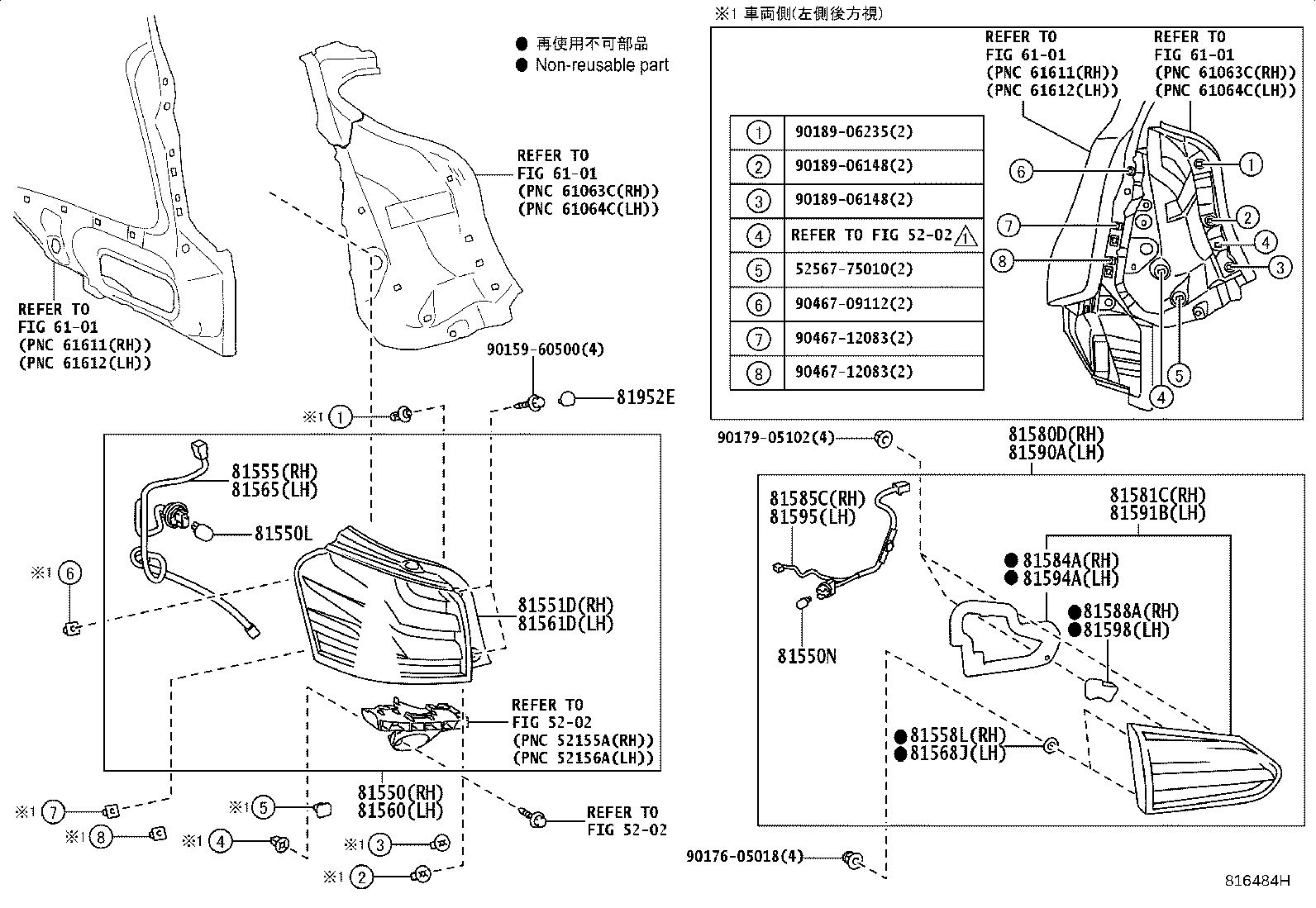

Figure 815069M 815069M 2009-07 → 2013-01 Figure 816484H 816484H 2013-01 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558L Protector, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568J Protector, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81585C Socket & Wire, Rear Lamp, RH
81588A Protector, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
81598 Protector, Rear Lamp, LH
81952E Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
