Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

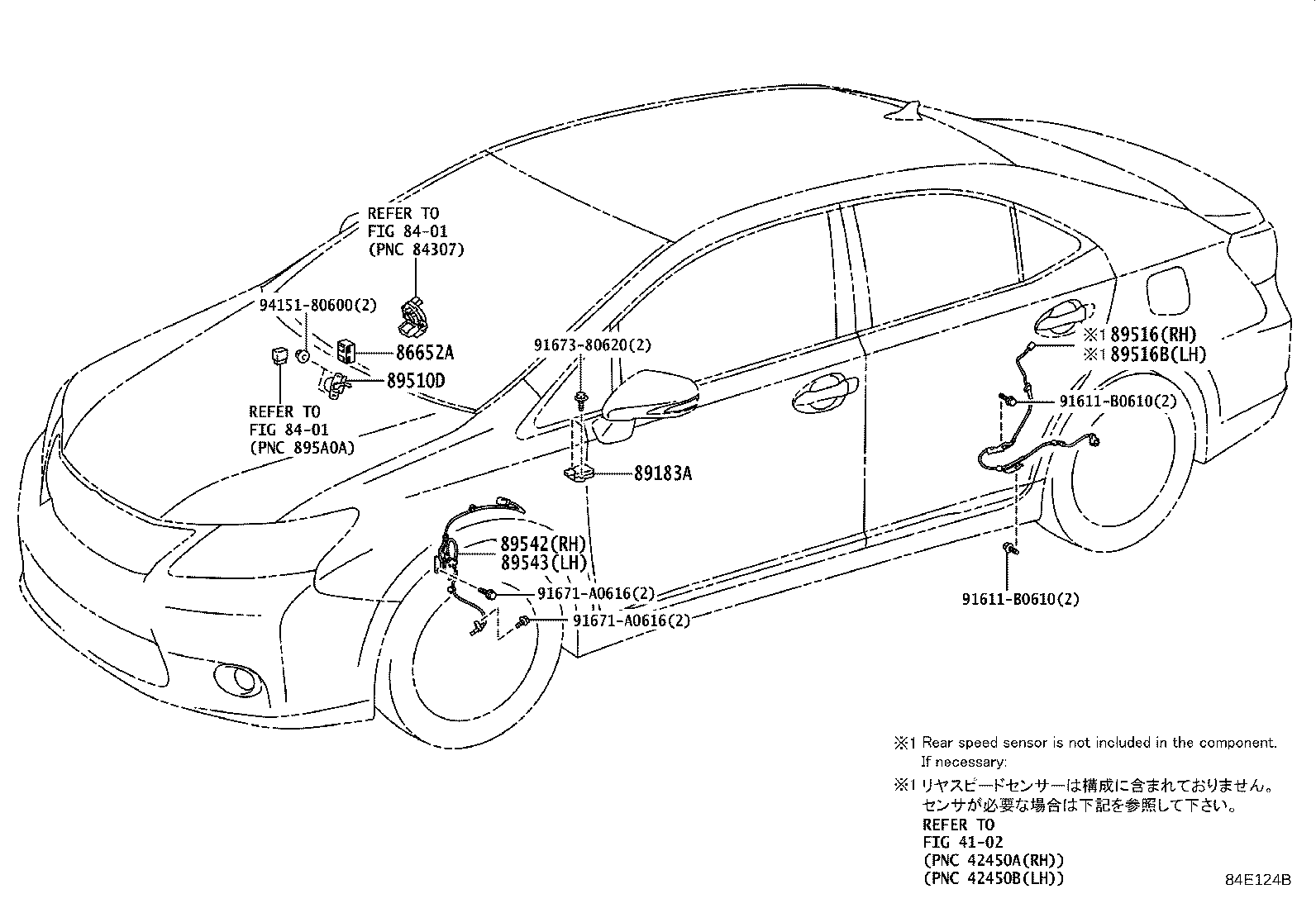

Figure 84A768D 84A768D 2009-07 → 2013-01 Figure 84E124B 84E124B 2013-01 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
89183A Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
