Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

17 part groups · 6 illustrations

Illustrations

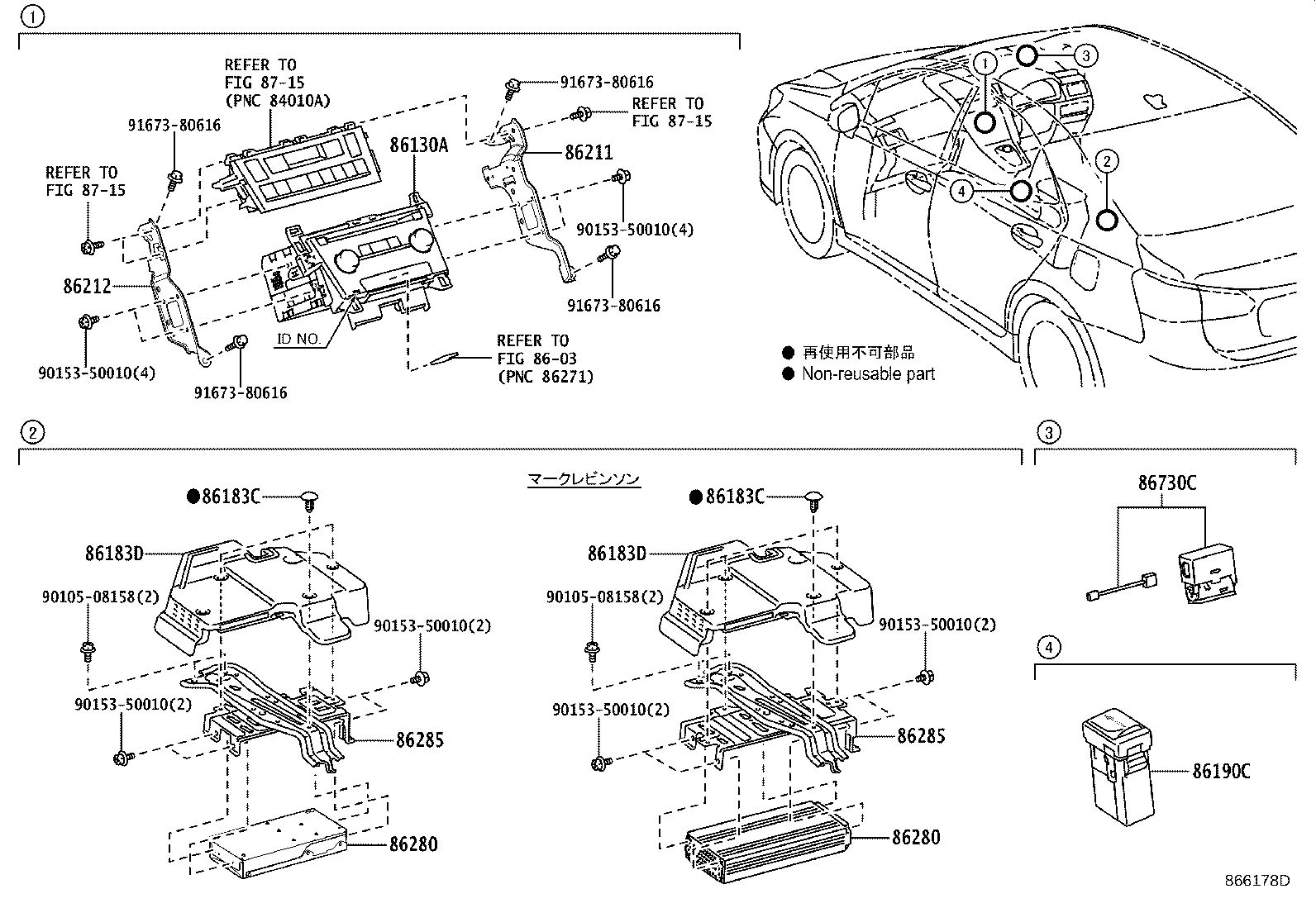

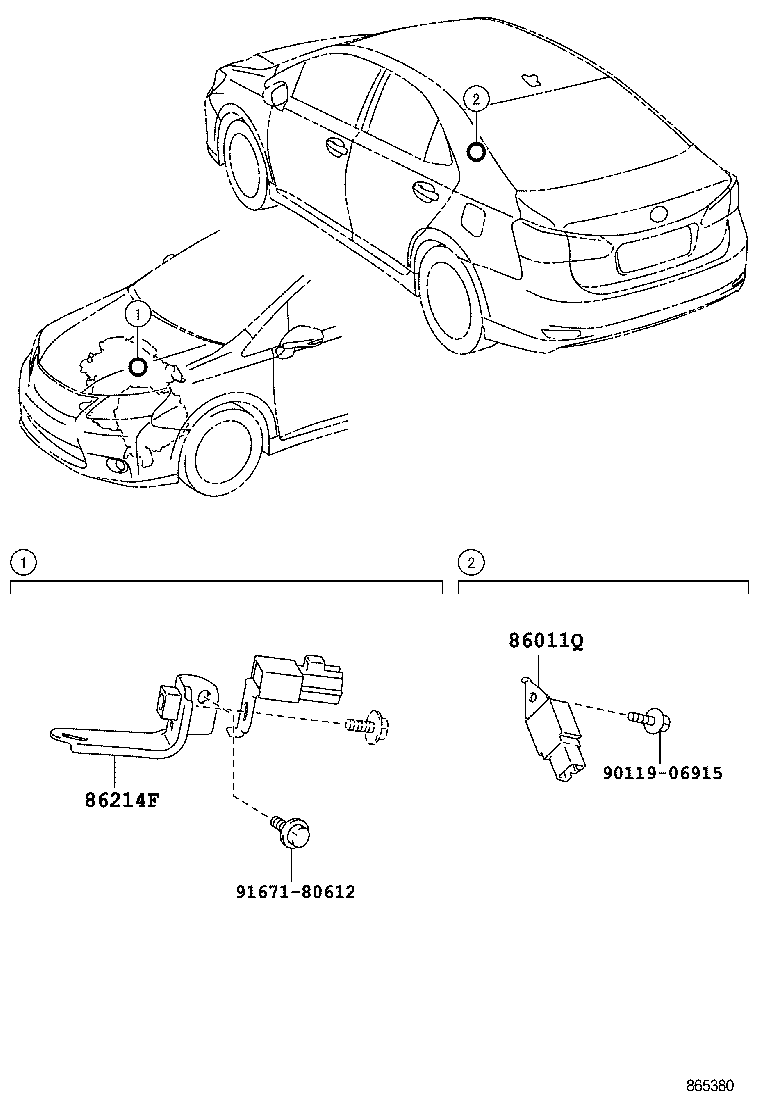

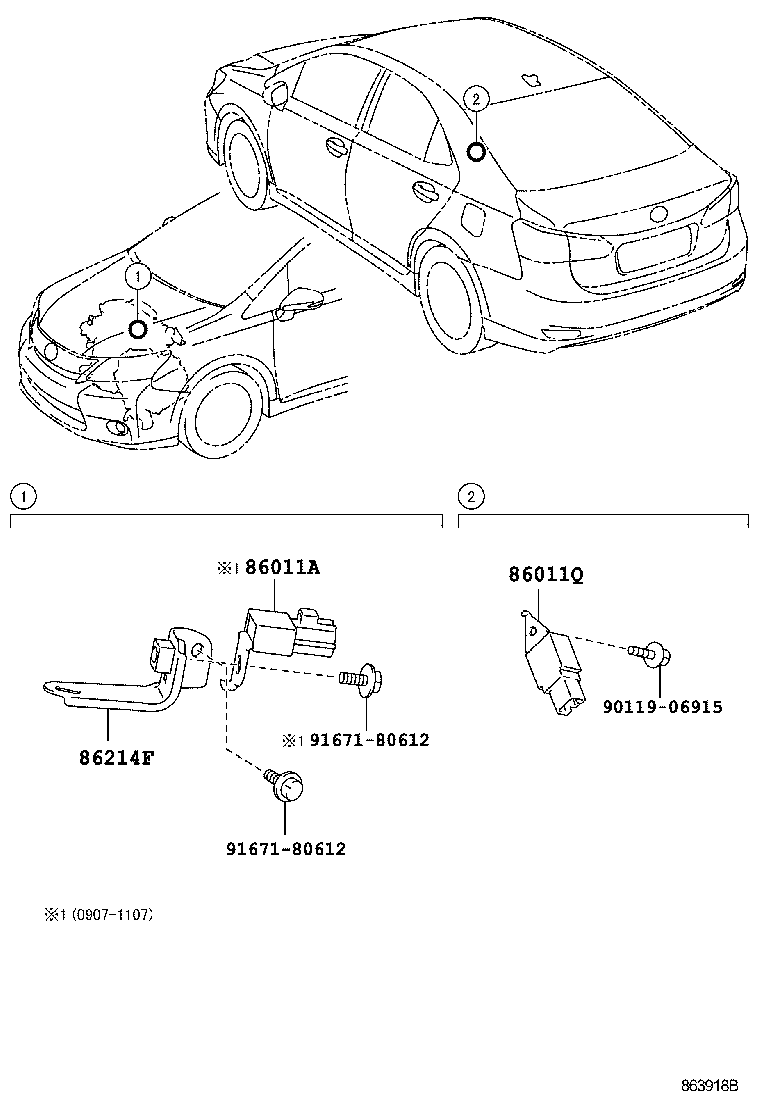

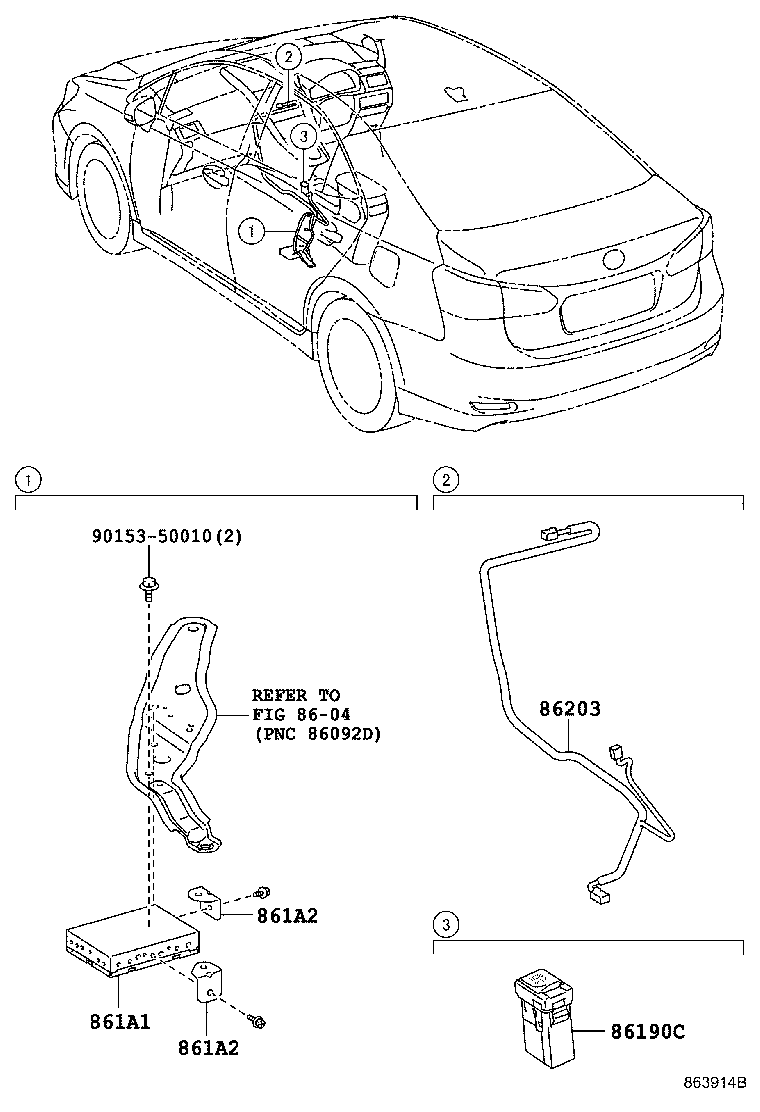

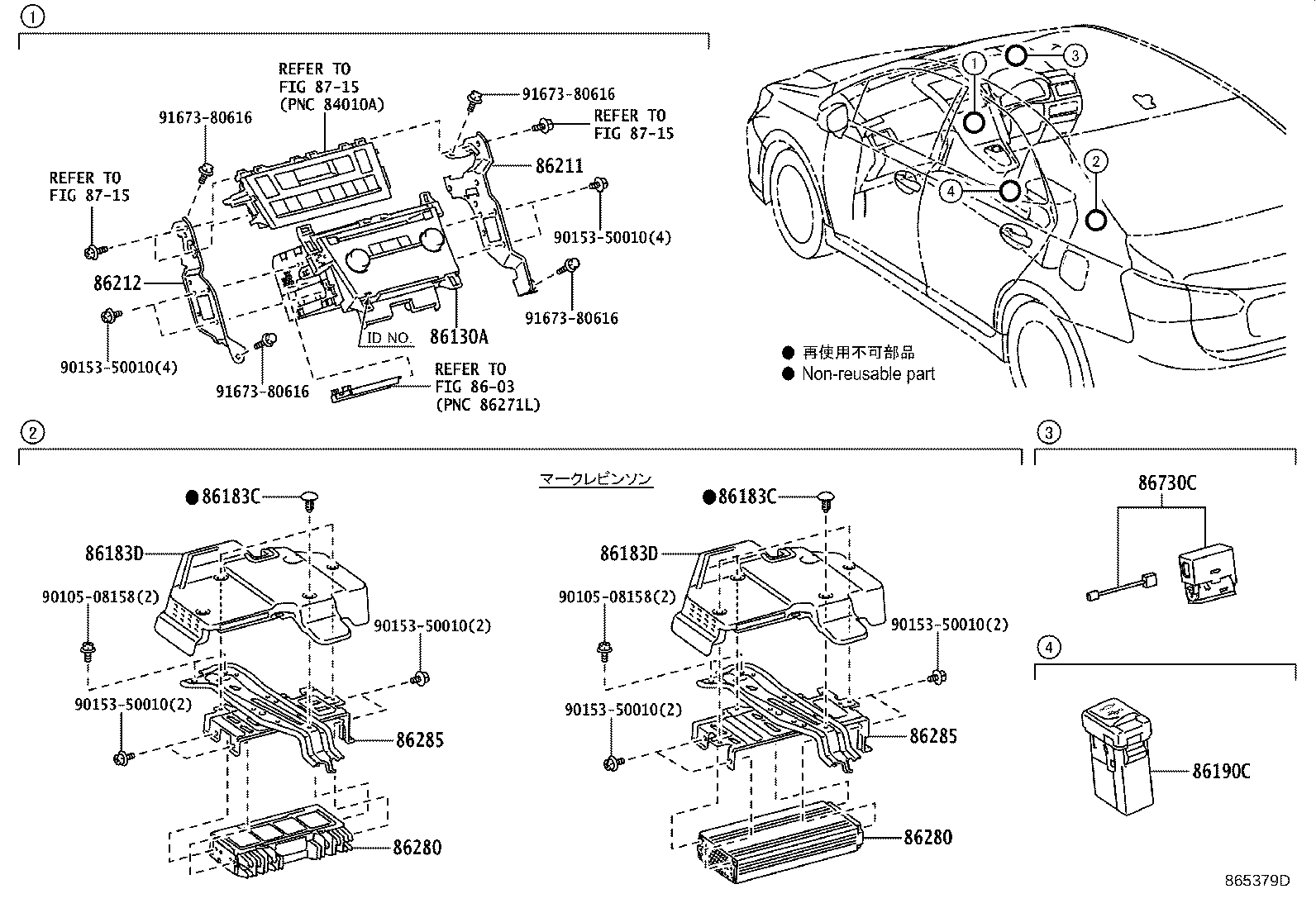

Figure 863913C 863913C 2009-07 → 2013-01 Figure 863914B 863914B 2009-07 → 2013-01 Figure 863918B 863918B 2009-07 → 2013-01 Figure 865379D 865379D 2013-01 → 2015-08 Figure 866178D 866178D 2015-08 → — Figure 865380 865380 2013-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86130A Receiver Assy, Multi-media Module
86183C Clip, Audio Rack
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86214F Bracket, Radio Earth
86250 Microphone Assy, Amplifier
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
