Toyota Lexus HS250H
2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan
Supported model
Data version 2018-08

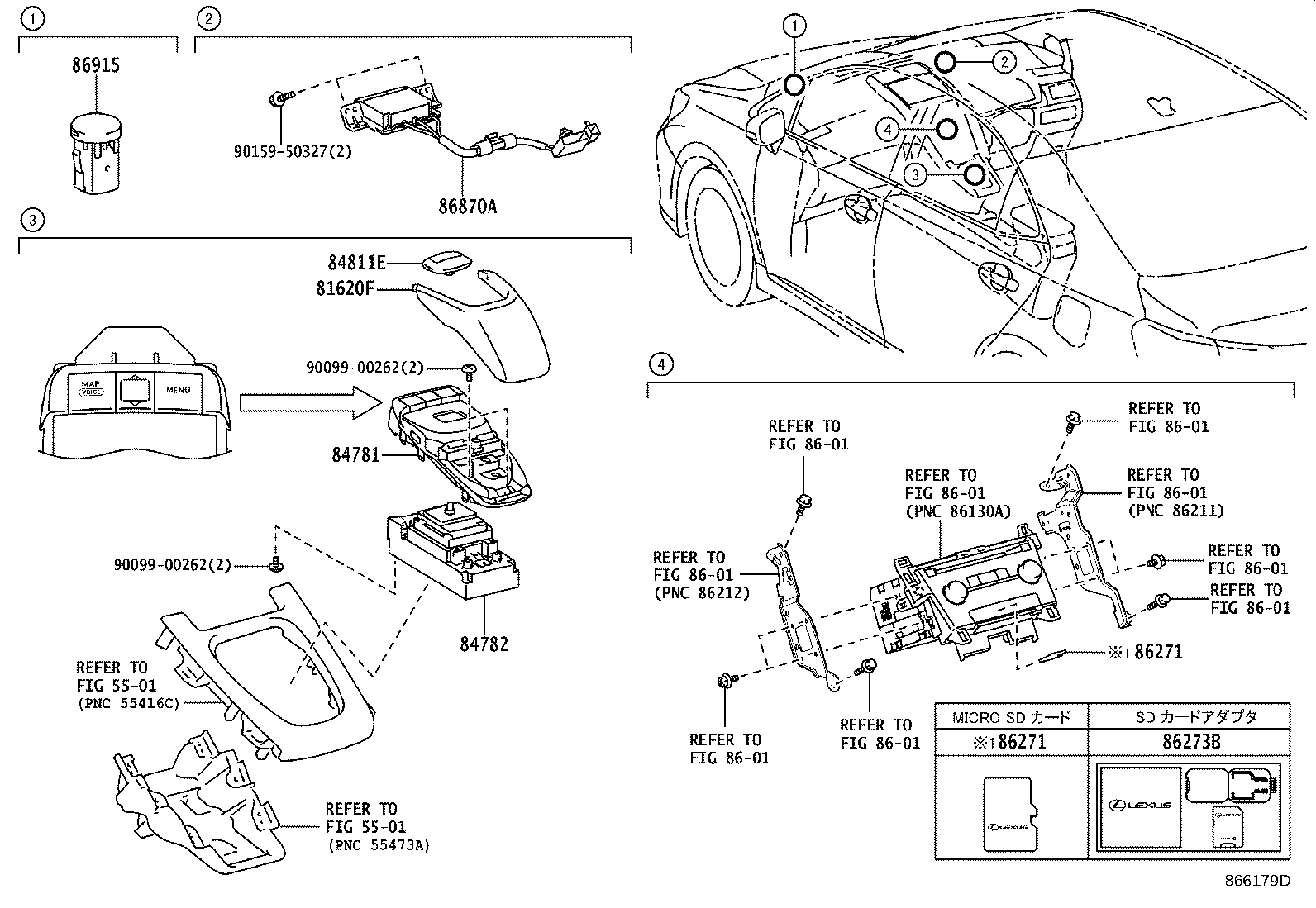

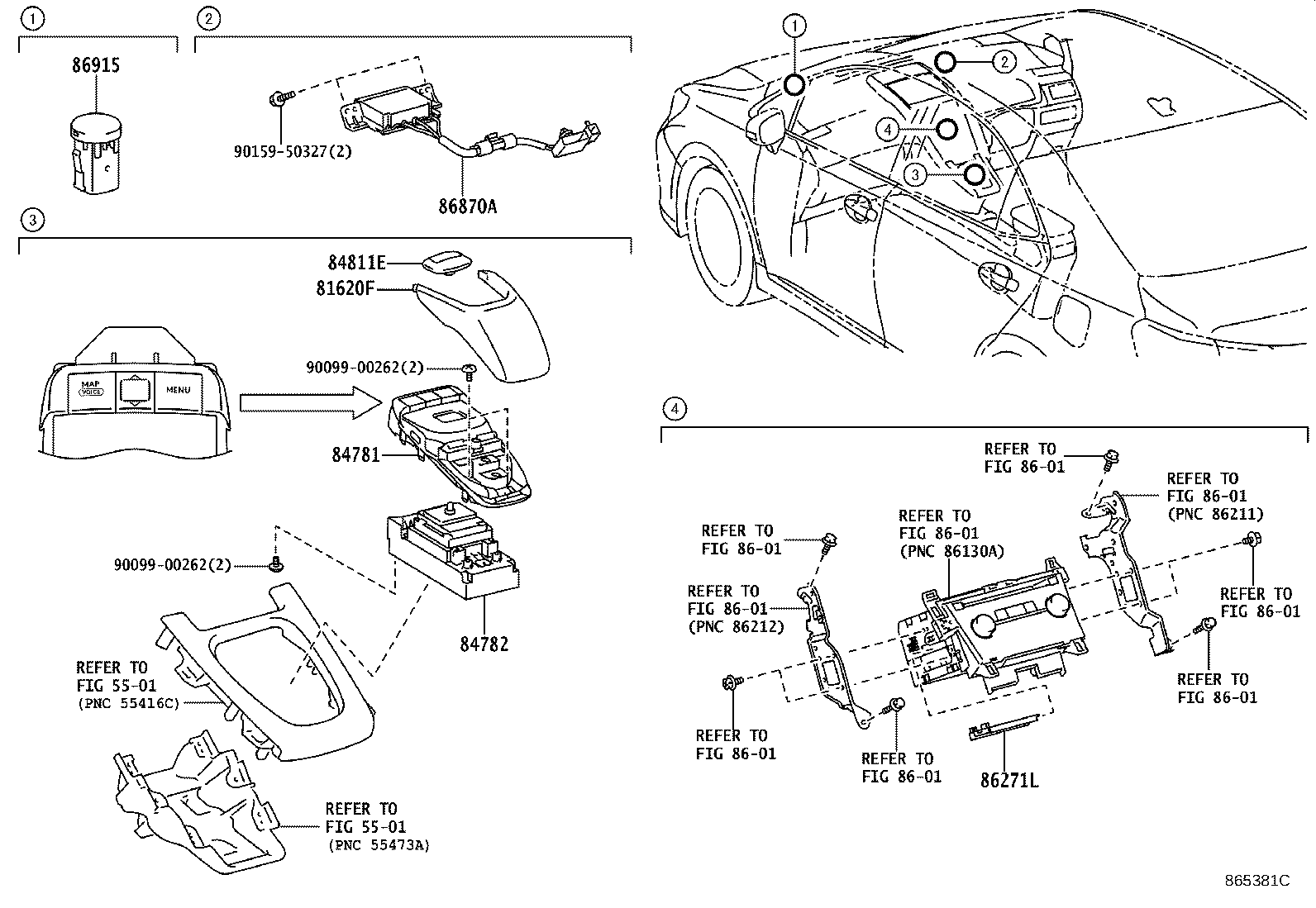

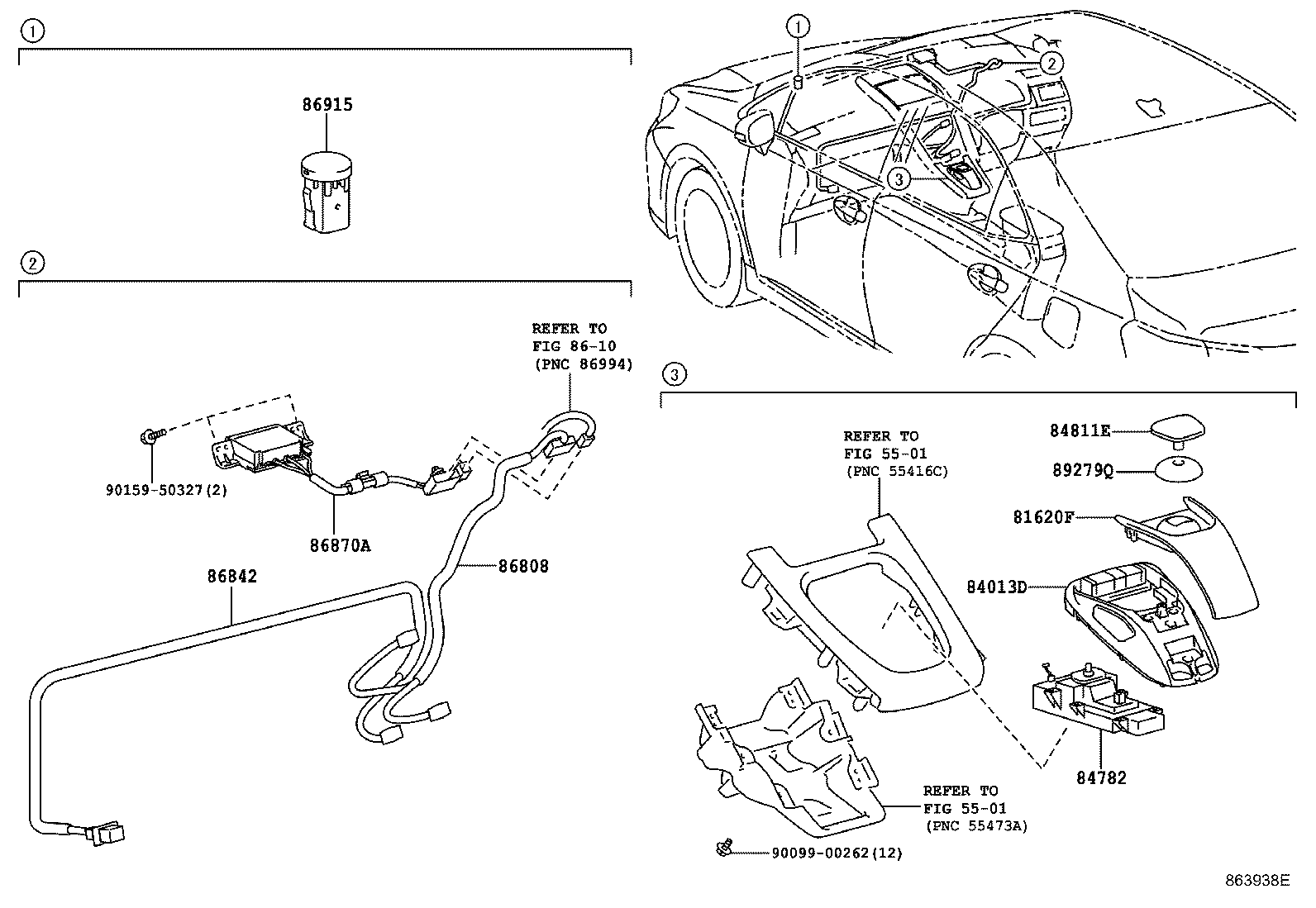

Navigation & Front Monitor Display
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81620F | Cover Assy |
| 82219F | Wire, Sensor |
| 82286B | Wire, Earth, NO.2 |
| 84013D | Panel Sub-assy, Integration |
| 84781 | Switch, Remote Operation |
| 84782 | Board, Remote Operation |
| 84811E | Knob, Switch |
| 86104A | Controller Sub-assy, Multi-display |
| 86111 | Multi-display |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86273B | Adapter, Disc Player |
| 86431A | Board, Display Module |
| 86453 | Wire, Multi-media Module |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86842 | Wire, Navigation, NO.1 |
| 86870A | Antenna Assy, Gps & Vics |
| 86915 | Transceiver, Optical Beacon |
| 89279Q | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
