Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

19 part groups · 3 illustrations

Illustrations

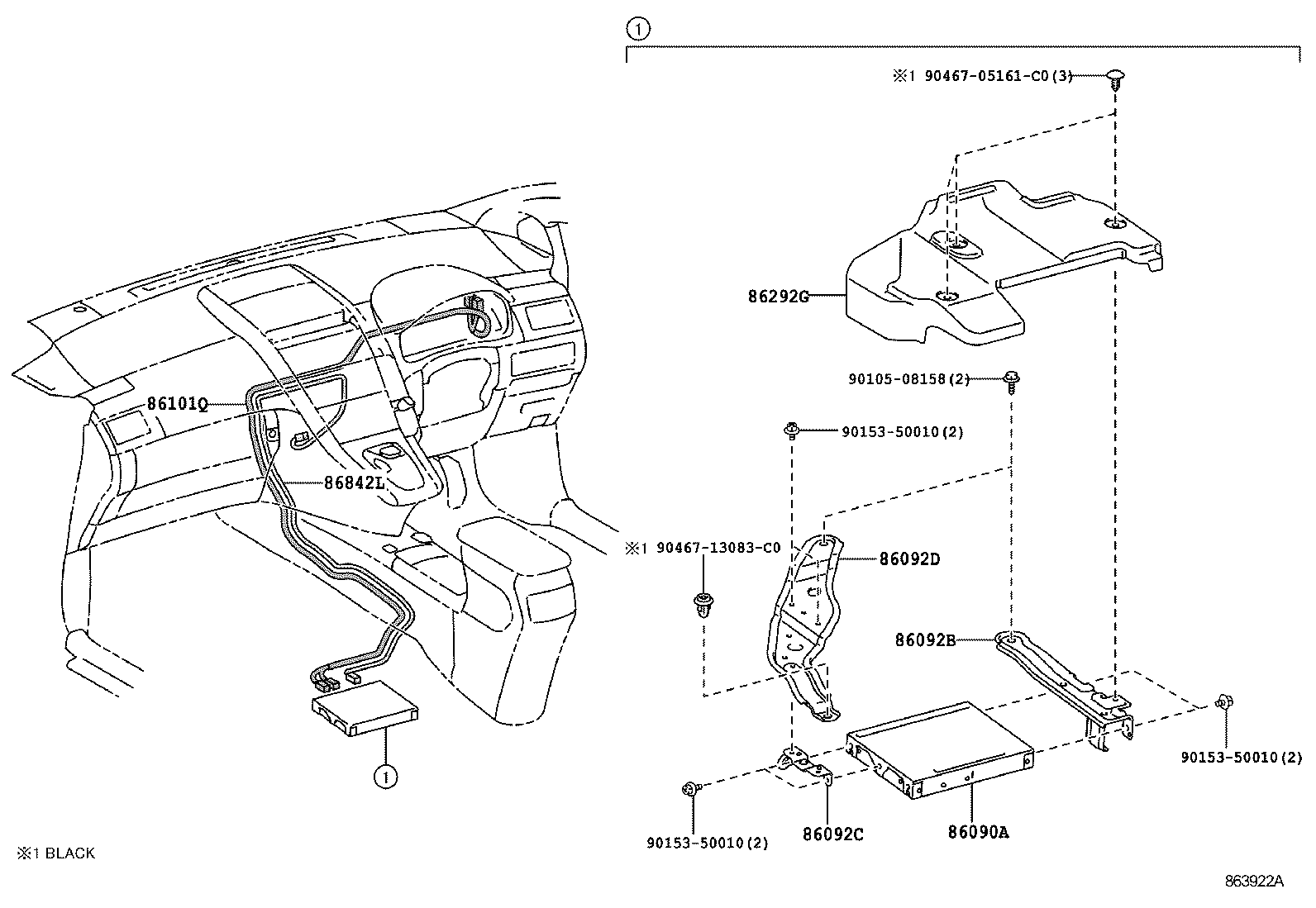

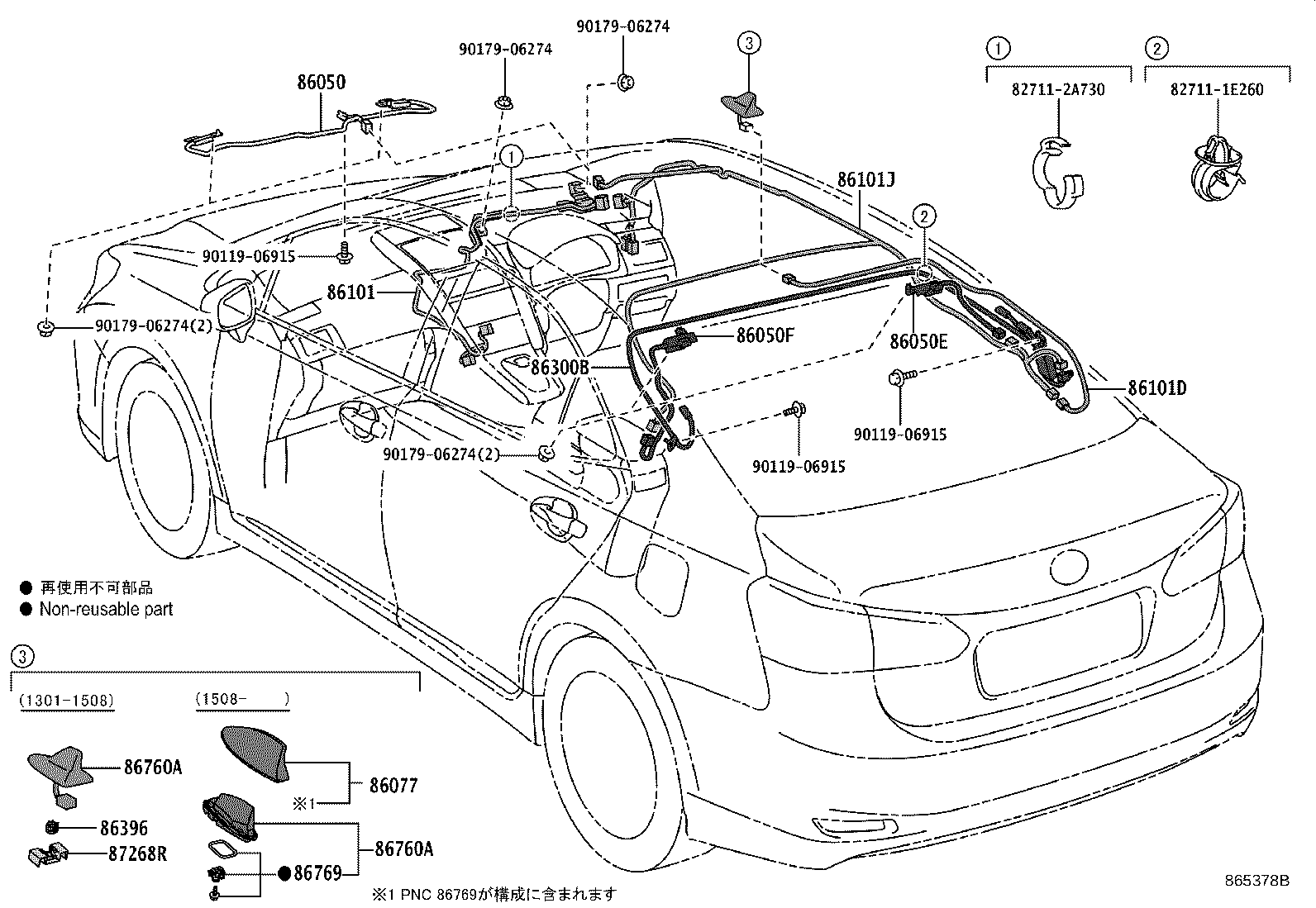

Figure 863921 863921 2009-07 → 2013-01 Figure 863922A 863922A 2009-07 → 2013-01 Figure 865378B 865378B 2013-01 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86050F Antenna Assy, Television
86077 Cover Kit, Antenna
86090A Tuner Assy, Digital Television
86092B Bracket Set, Digital Television, NO.1
86092C Bracket Set, Digital Television, NO.2
86092D Bracket Set, Digital Television, NO.3
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86292G Cover, Television Set
86300B Antenna Assy, Amplifier, NO.1
86396 Nut, Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
86842L Wire, Navigation, NO.1
87268R Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
