Toyota Lexus HS250H

2009-07 → 2018-02 · chassis ANF10 · catalogue 292110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

8 part groups · 2 illustrations

Illustrations

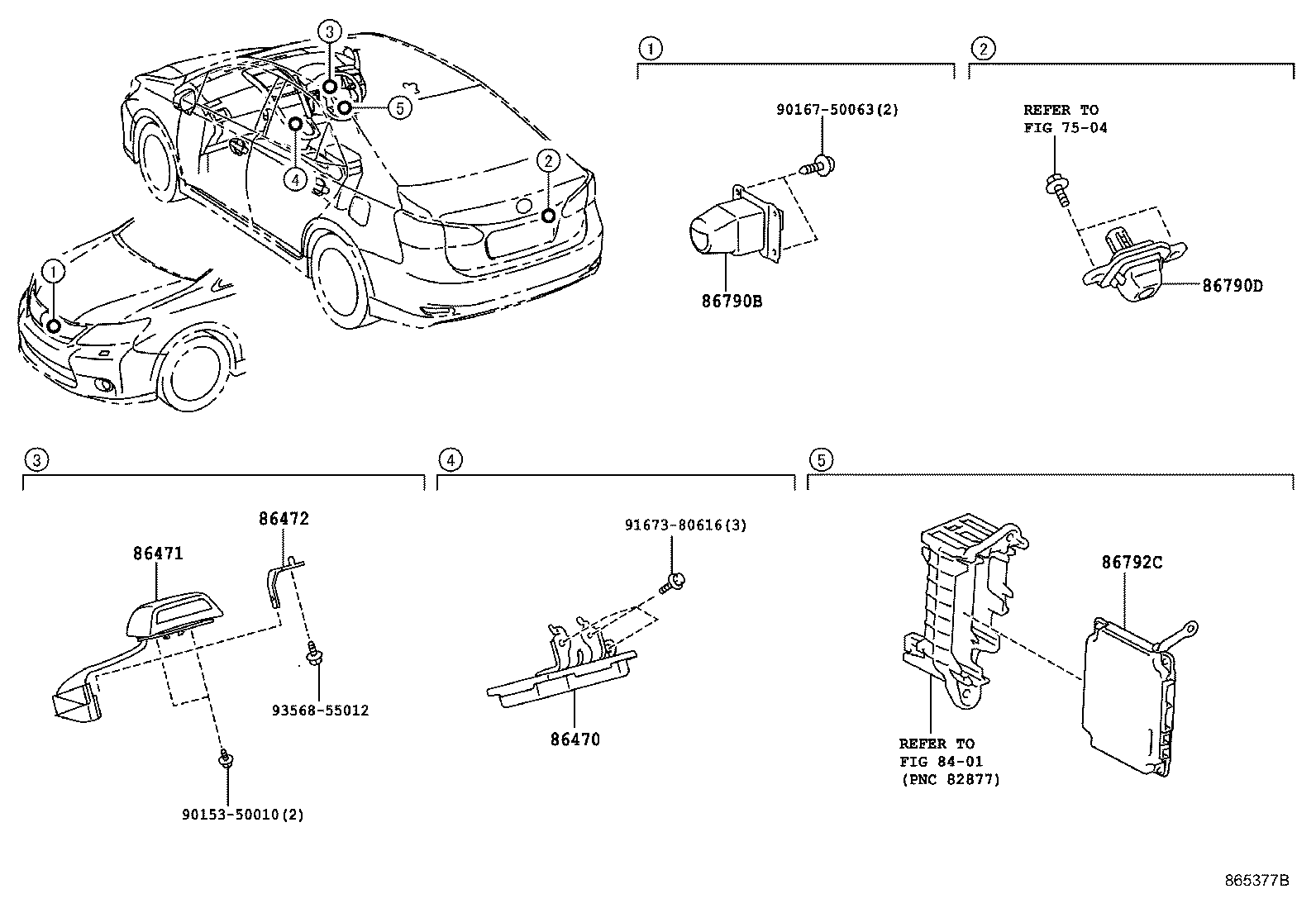

Figure 863924C 863924C 2009-07 → 2013-01 Figure 865377B 865377B 2013-01 → —

Part groups

PNCDescription
82666R Holder, Connector
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86472 Bracket, Driver Monitor
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86792C Computer, Parking Assist
86842A Wire, Navigation, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
