Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

18 part groups · 3 illustrations

Illustrations

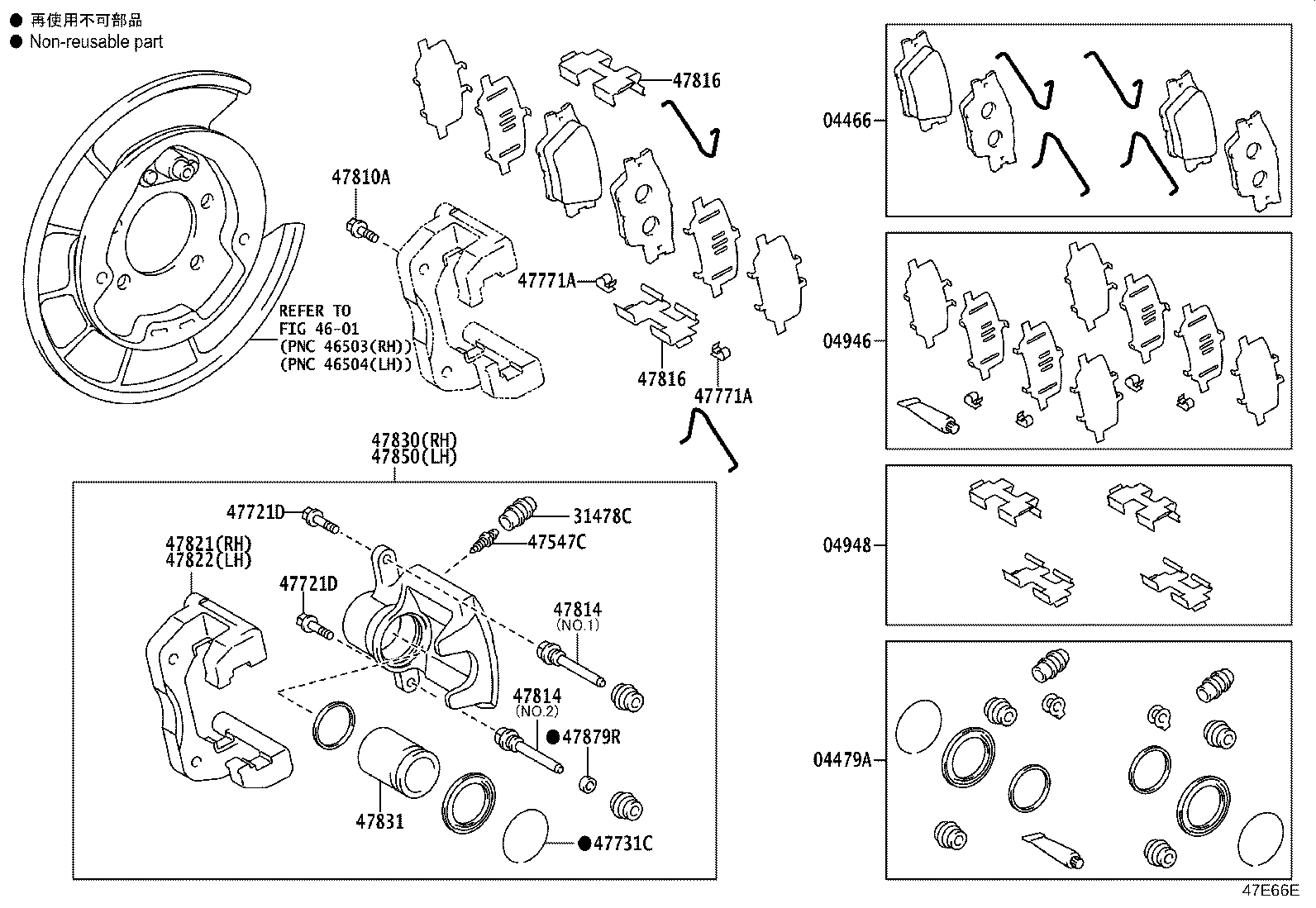

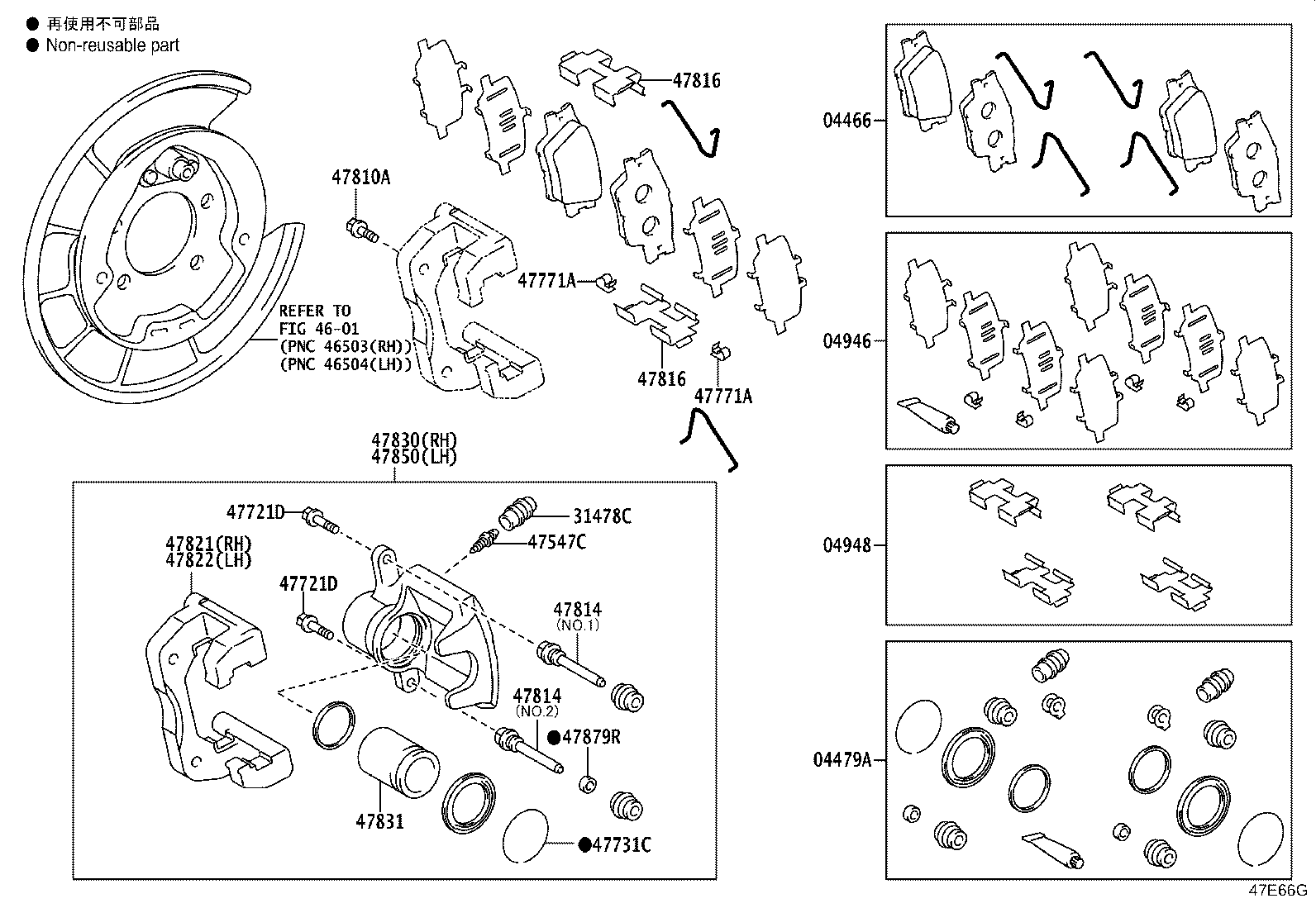

Figure 47E66D 47E66D 2009-11 → 2010-06 Figure 47E66E 47E66E 2010-07 → 2011-07 Figure 47E66G 47E66G 2011-07 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47731C Ring, Set(FOR REAR DISC BRAKE PISTON)
47771A Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47816 Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47821 Mounting, Rear Disc Brake Cylinder, RH
47822 Mounting, Rear Disc Brake Cylinder, LH
47830 Cylinder Assy, Disc Brake, Rear RH
47831 Piston, Rear Disc Brake
47850 Cylinder Assy, Disc Brake, Rear LH
47879R Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
