Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08

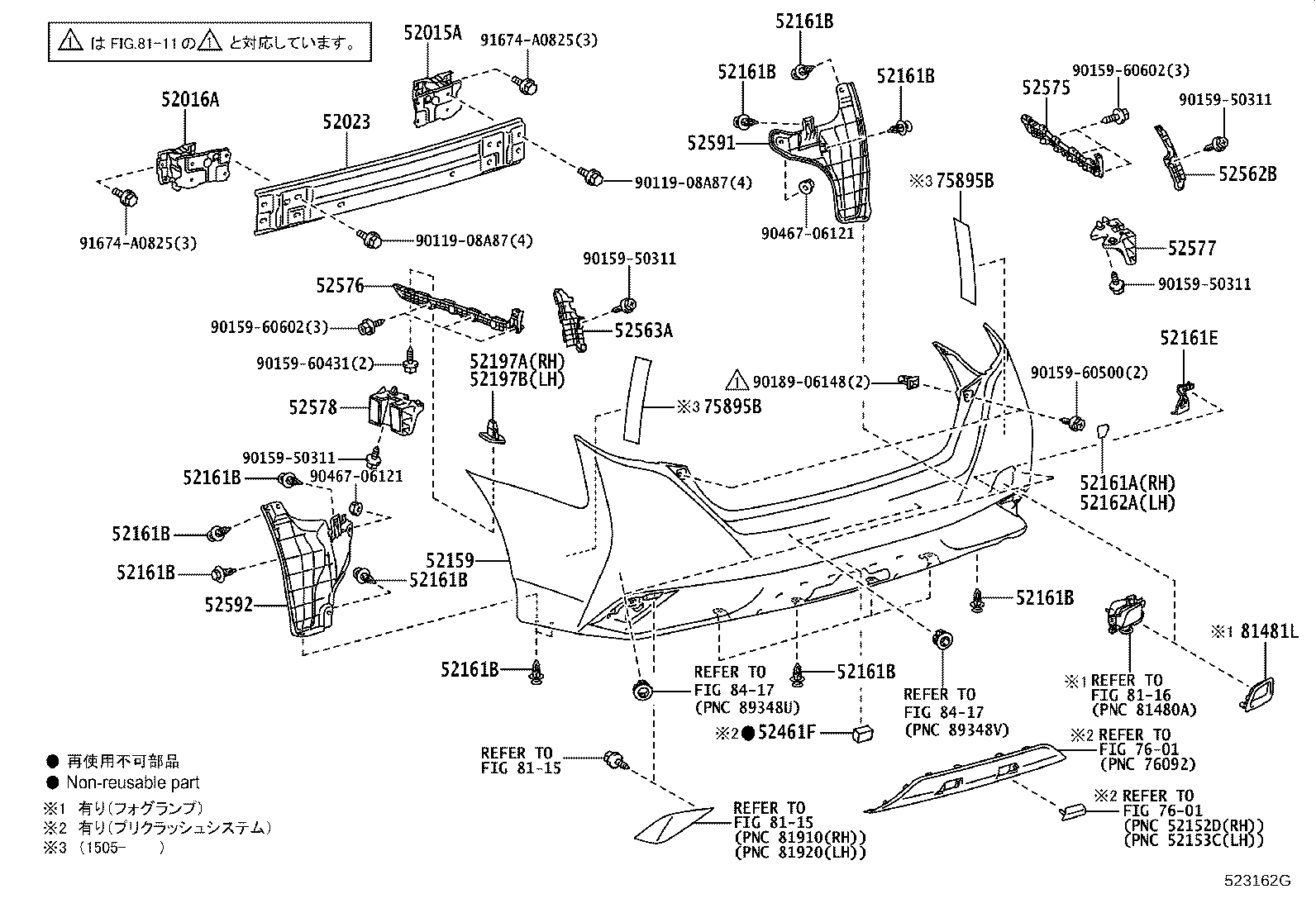

Rear Bumper & Bumper Stay
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161A | Piece, Rear Bumper, RH |
| 52161B | Piece, Rear Bumper |
| 52161E | Extension, Rear Bumper Side, RH |
| 52162A | Piece, Rear Bumper, LH |
| 52169B | Bracket, Rear Bumper, Center |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52197B | Bracket, Rear Bumper Seal, LH |
| 52461F | Pad, Rear Bumper |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52577 | Retainer, Rear Bumper Side, NO.2 RH |
| 52578 | Retainer, Rear Bumper Side, NO.2 LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 75895B | Tape, Moulding, NO.2 |
| 81481L | Cover, Fog Lamp, RH |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
