Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

28 part groups · 2 illustrations

Illustrations

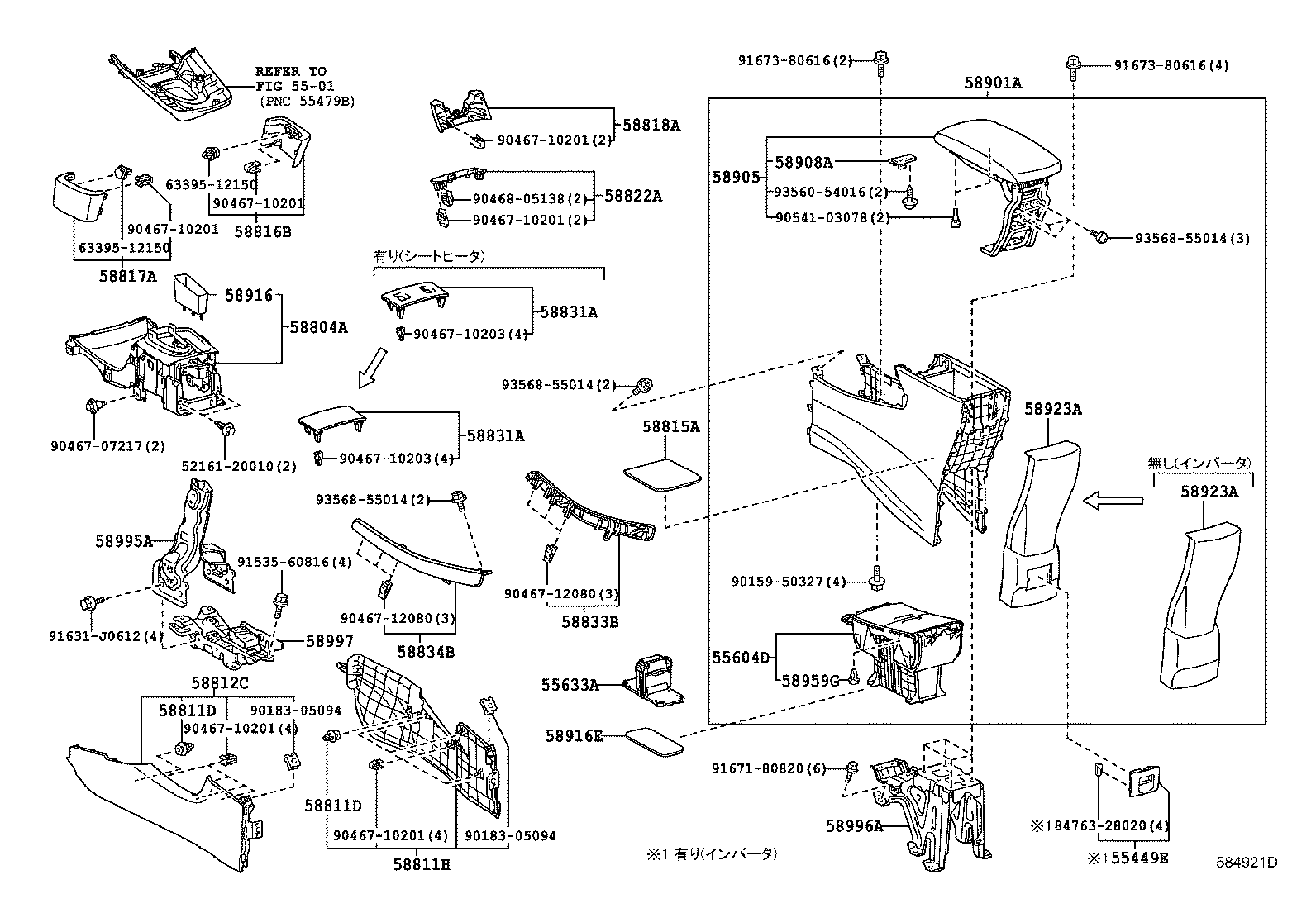

Figure 583758C 583758C 2009-11 → 2013-08 Figure 584921D 584921D 2013-08 → —

Part groups

PNCDescription
55449E Base, Switch
55604D Holder Sub-assy, Instrument Panel Cup
55619D Cover, Cup Holder Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58811D Clip(FOR CONSOLE BOX)
58811H Box, Console, RH
58812C Box, Console, LH
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58916E Mat, Box Bottom
58923A Panel, Console Rear End
58959G Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
