Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 3 illustrations

Illustrations

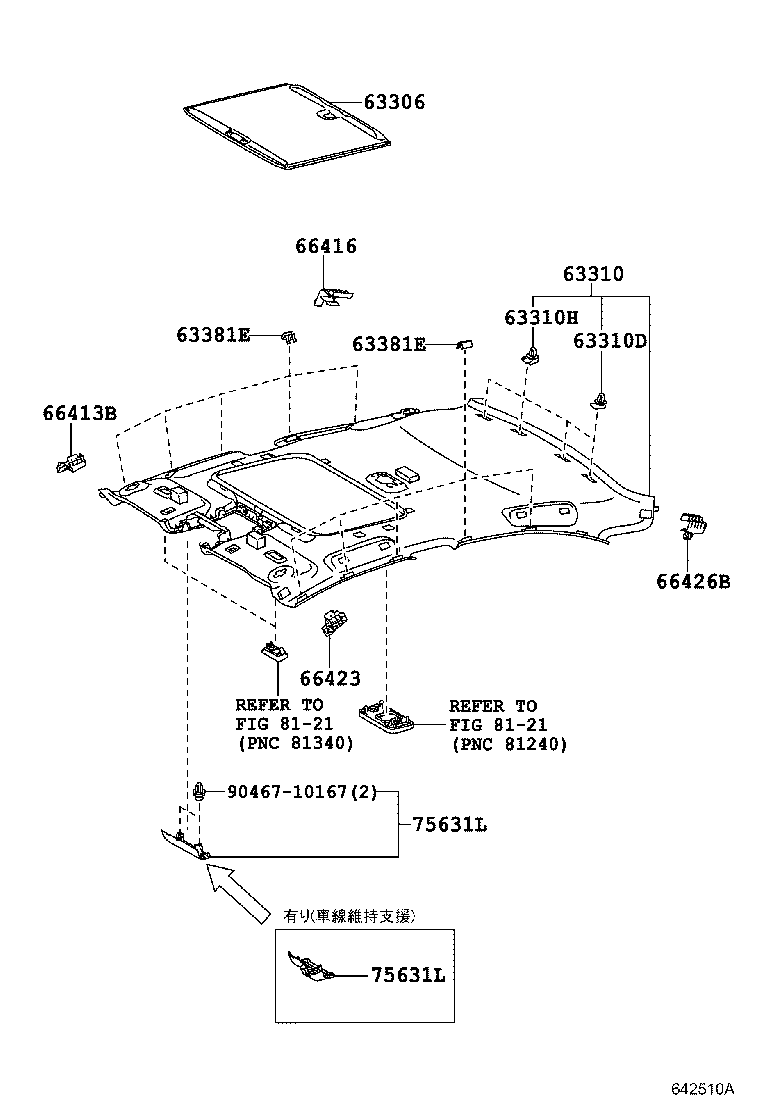

Figure 642509A 642509A 2009-11 → 2012-08 Figure 643211A 643211A 2012-08 → — Figure 642510A 642510A 2009-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63381E Retainer, Roof Headlining Trim, Front
66413B Spacer, Side Rail, Front RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66426B Spacer, Side Rail, Rear NO.3 LH
75631L Garnish, Roof Top, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
