Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08

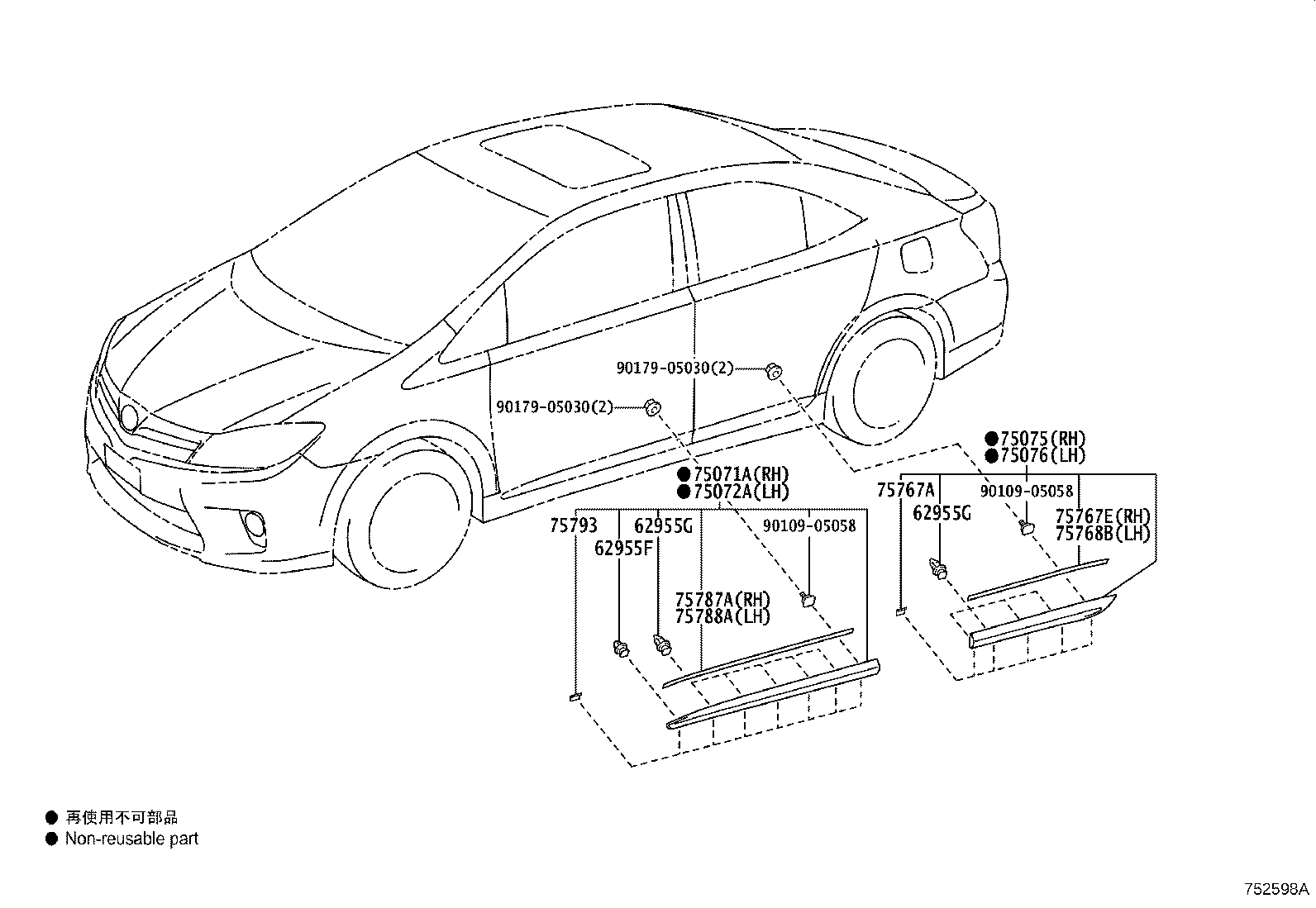

Side Moulding
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62955F | Retainer, Quarter Vent Louver |
| 62955G | Retainer, Quarter Vent Louver |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75085E | Screw, NO.1 |
| 75085F | Screw, NO.2 |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75751C | Moulding, Front Door Window Frame, Front RH |
| 75752C | Moulding, Front Door Window Frame, Front LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75767A | Pad, Rear Door Moulding, NO.1 |
| 75767E | Pad, Rear Door Moulding, RH |
| 75768B | Pad, Rear Door Moulding, LH |
| 75787A | Pad, Front Door Outside Moulding, RH |
| 75788A | Pad, Front Door Outside Moulding, LH |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75850C | Grommet, NO.1 |
| 75851F | Grommet(FOR BODY ROCKER PANEL MOULDING) |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75862A | Protector, Rocker Panel Moulding, NO.2 |
| 75866A | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 76923B | Retainer, Side Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
