Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

14 part groups · 2 illustrations

Illustrations

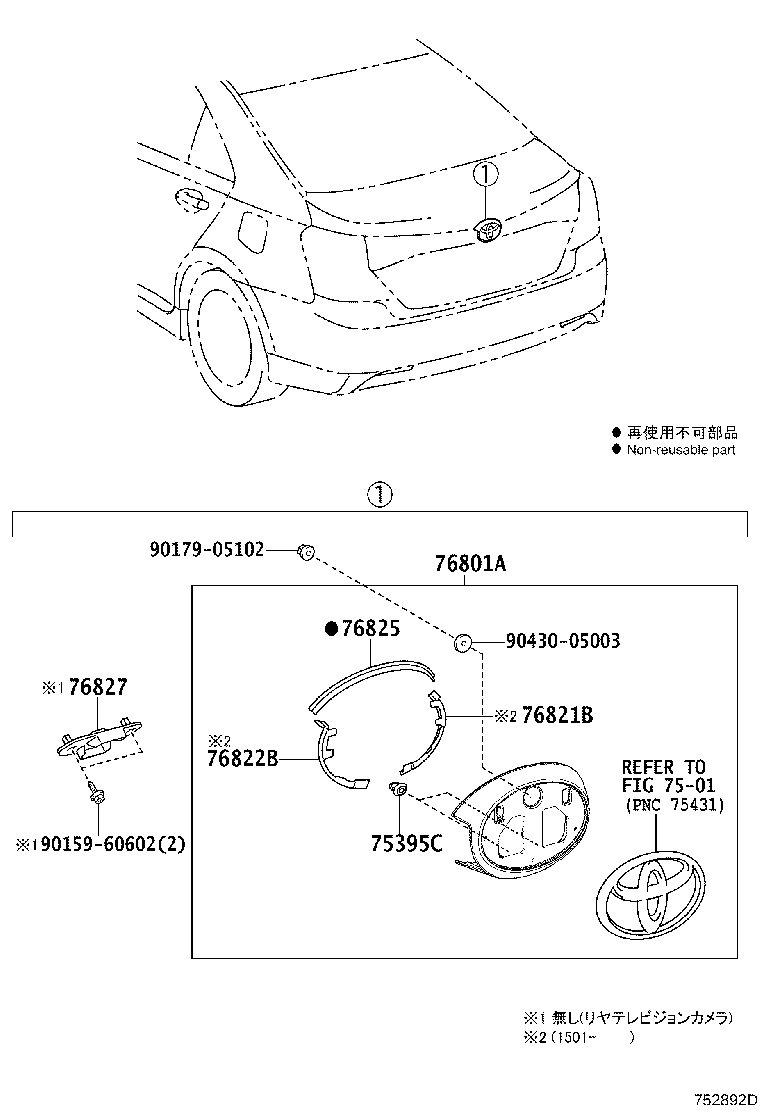

Figure 752278B 752278B 2009-11 → 2013-08 Figure 752892D 752892D 2013-08 → —

Part groups

PNCDescription
75395C Clip, Outside Moulding, NO.1
75801A Moulding Sub-assy, Luggage Compartment Door
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822 Protector, Back Door Garnish Moulding, Lower
76822B Protector, Back Door Garnish Side, LH
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
