Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

21 part groups · 3 illustrations

Illustrations

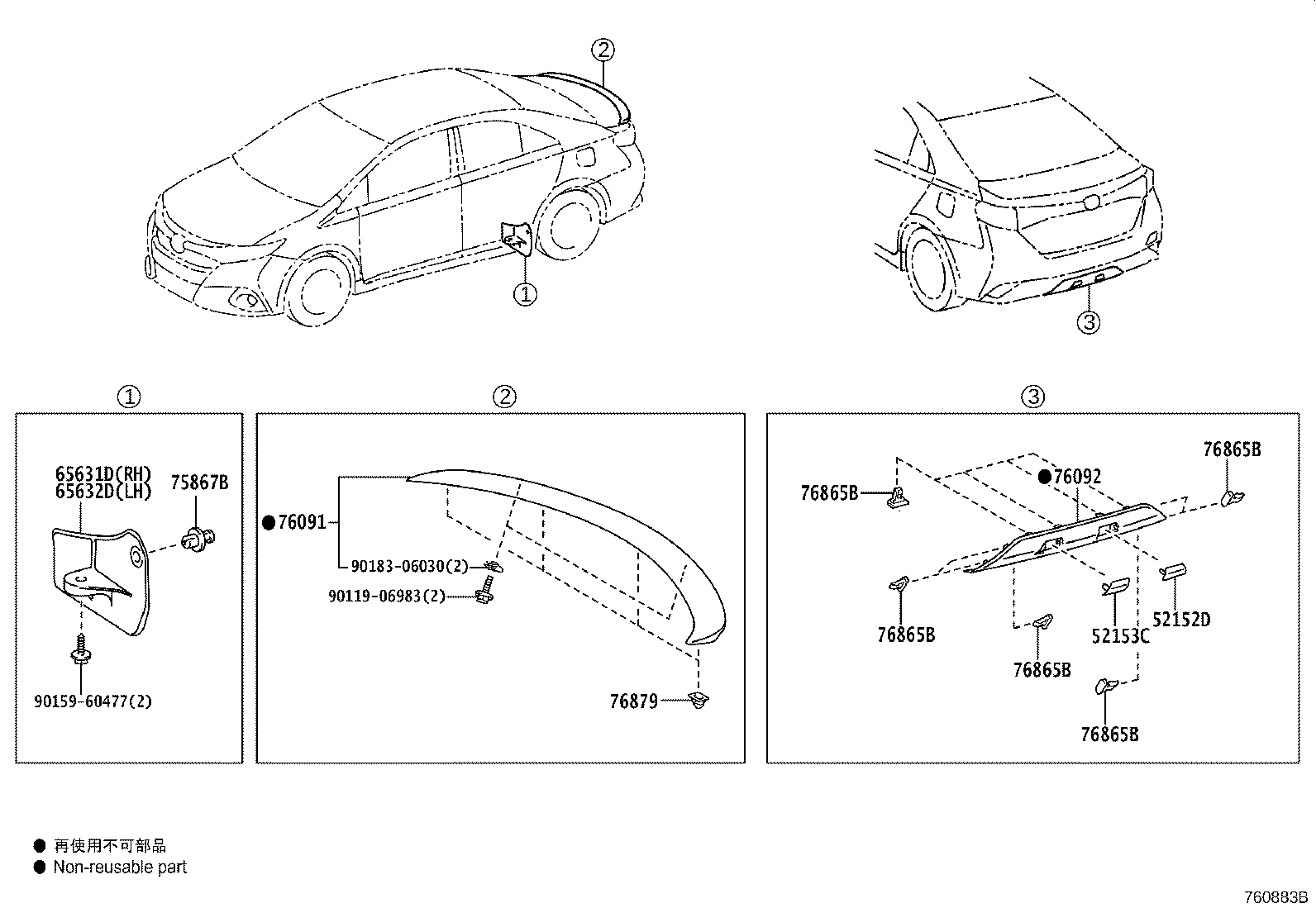

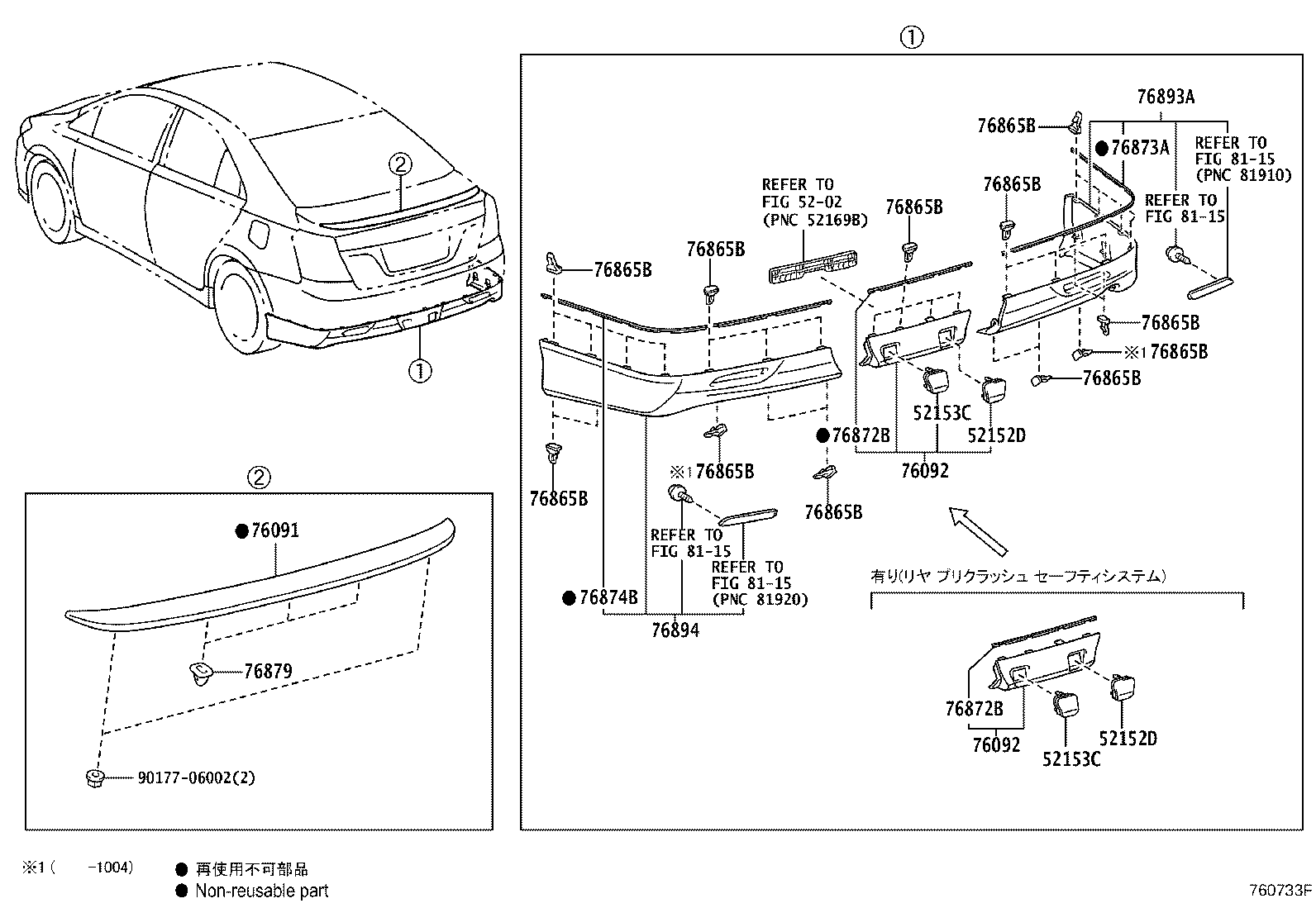

Figure 760732F 760732F 2009-11 → 2013-08 Figure 760733F 760733F 2009-11 → 2013-08 Figure 760883B 760883B 2013-08 → —

Part groups

PNCDescription
52152D Extension, Rear Bumper, RH
52153C Extension, Rear Bumper, LH
52161L Piece, Front Spoiler
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75867B Clip, Rocker Panel Moulding
76091 Spoiler Sub-assy, Rear Upper
76092 Spoiler Sub-assy, Rear Lower
76851 Cover, Front Spoiler
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853C Retainer, Front Spoiler, NO.1
76865B Retainer, Rear Spoiler
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
