Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08
Headlamp
33 part groups · 5 illustrations

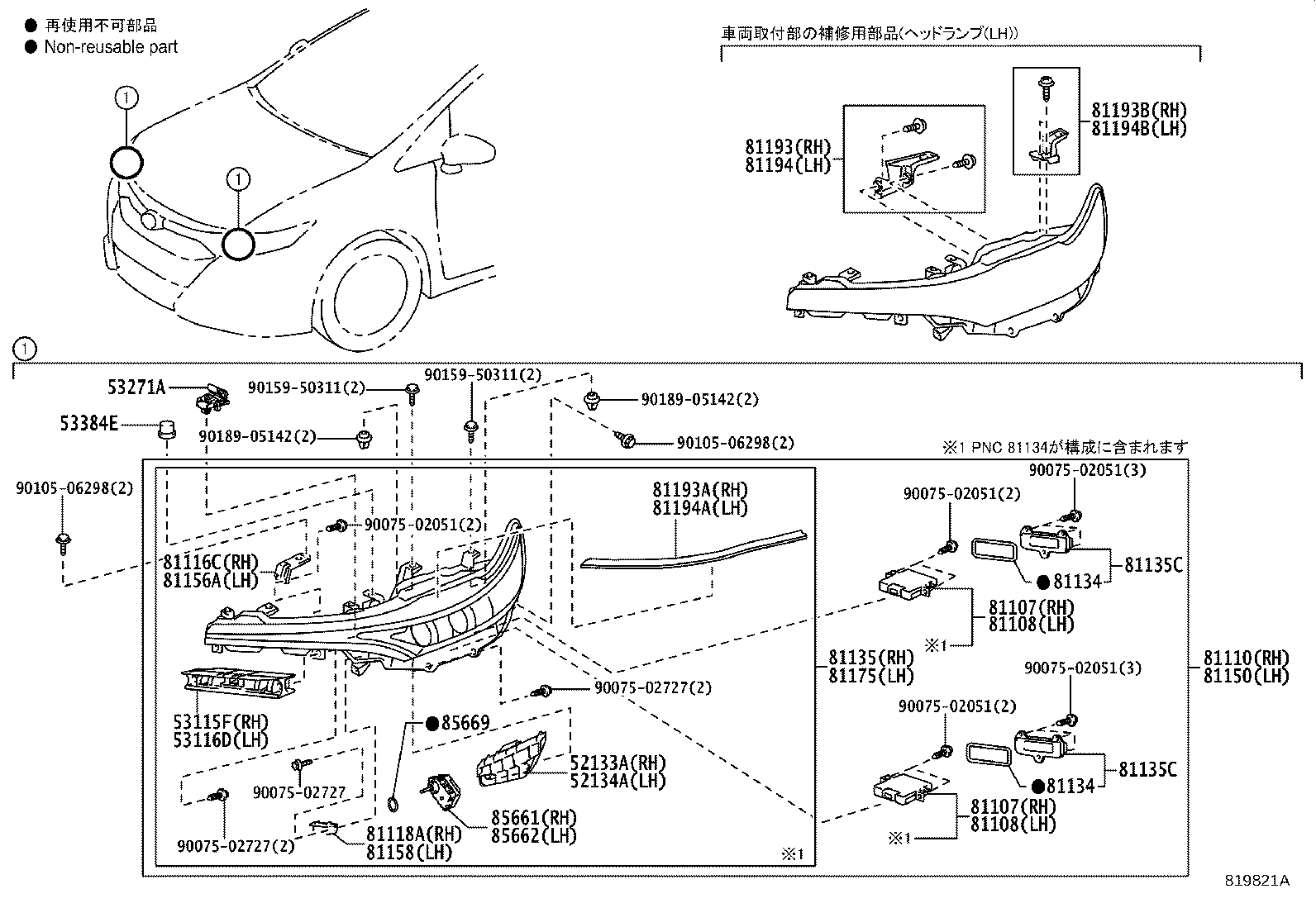

Part groups
| PNC | Description |
|---|---|
| 52133A | Bracket, Front Bumper, RH |
| 52134A | Bracket, Front Bumper, LH |
| 53115F | Bracket, Radiator Grille, RH |
| 53116D | Bracket, Radiator Grille, LH |
| 53271A | Bracket, Headlamp Mounting |
| 53384E | Cushion, Hood, Ctr |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81116C | Bracket, Headlamp, RH |
| 81118A | Bracket, Headlamp, RH |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81156A | Bracket, Headlamp, LH |
| 81158 | Bracket, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
