Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08

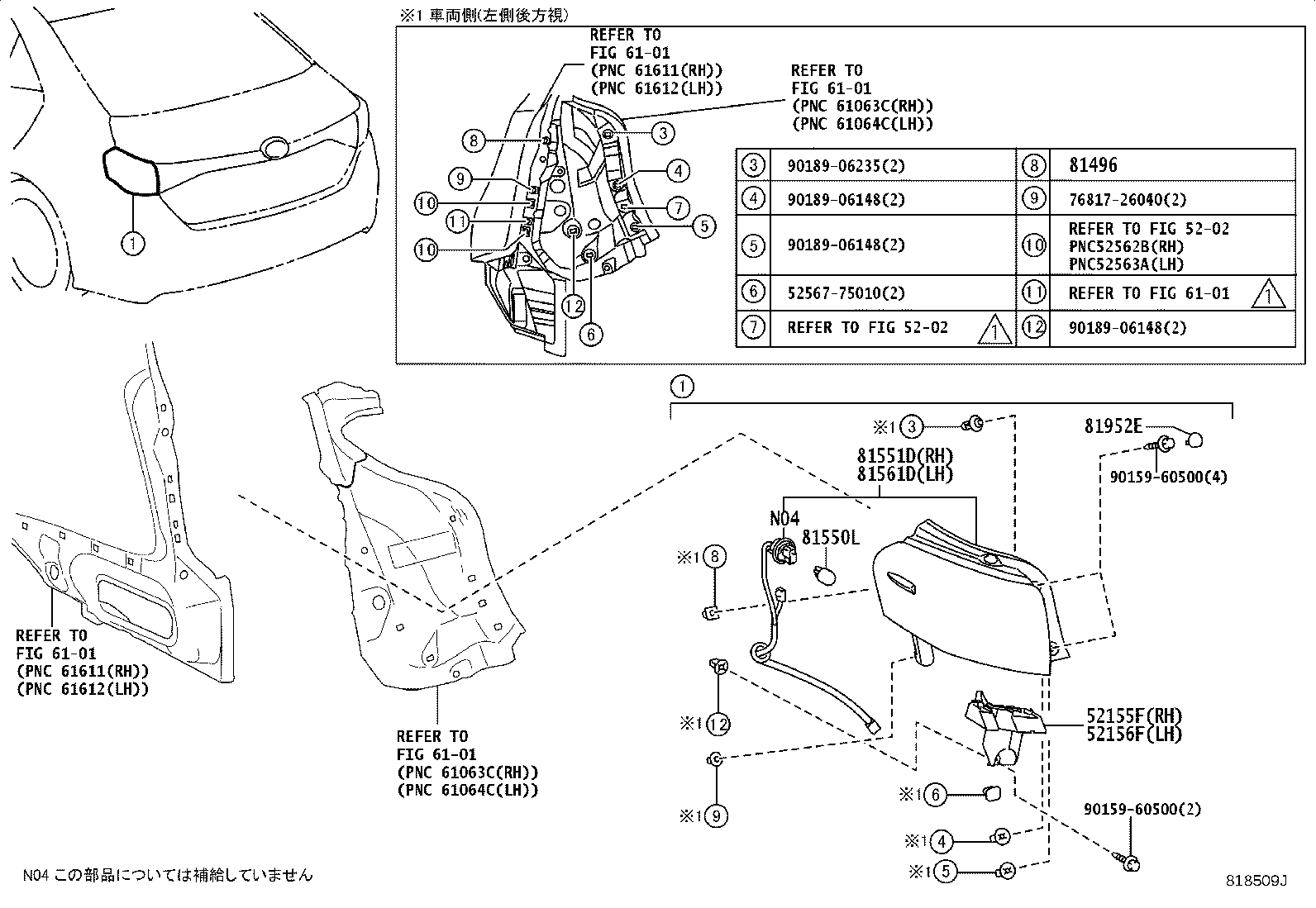

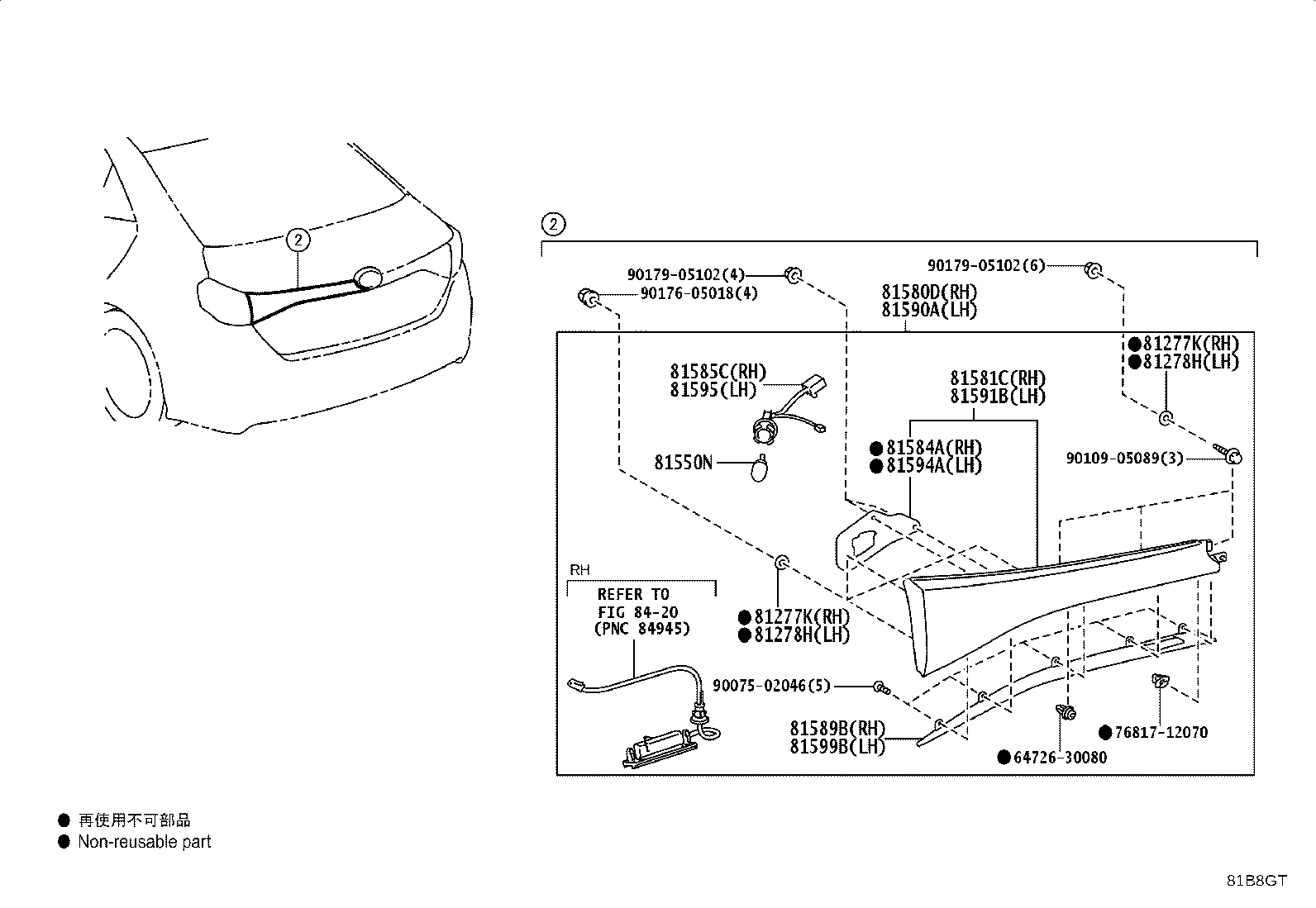

Rear Combination Lamp
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155F | Support, Rear Bumper Side, RH |
| 52156F | Support, Rear Bumper Side, LH |
| 81277K | Shade, License Plate Lamp, RH |
| 81278H | Shade, License Plate Lamp, LH |
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81589B | Cover, Rear Combination Back, RH |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
| 81599B | Cover, Rear Combination Back, LH |
| 81952E | Cover, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
