Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

20 part groups · 3 illustrations

Illustrations

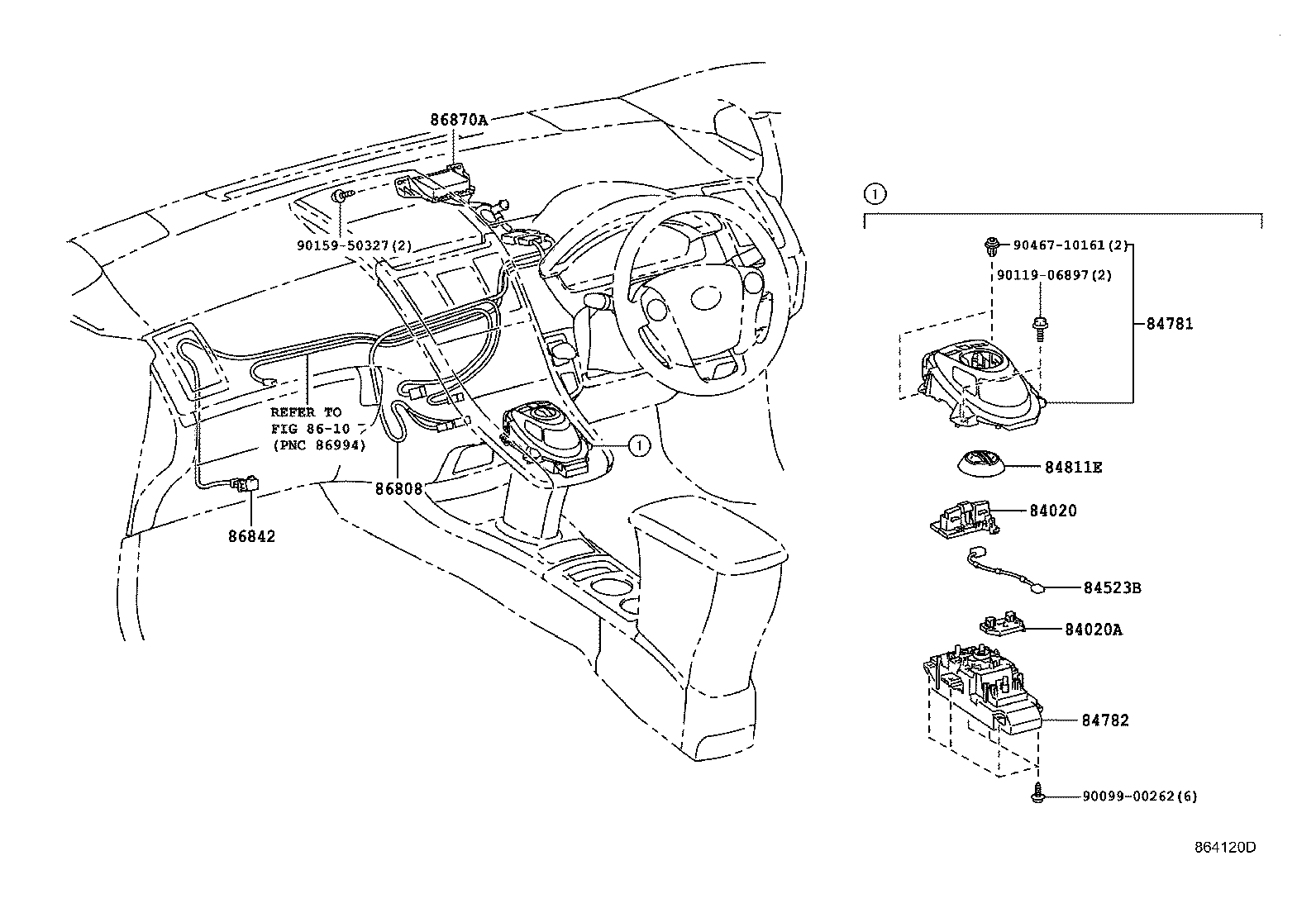

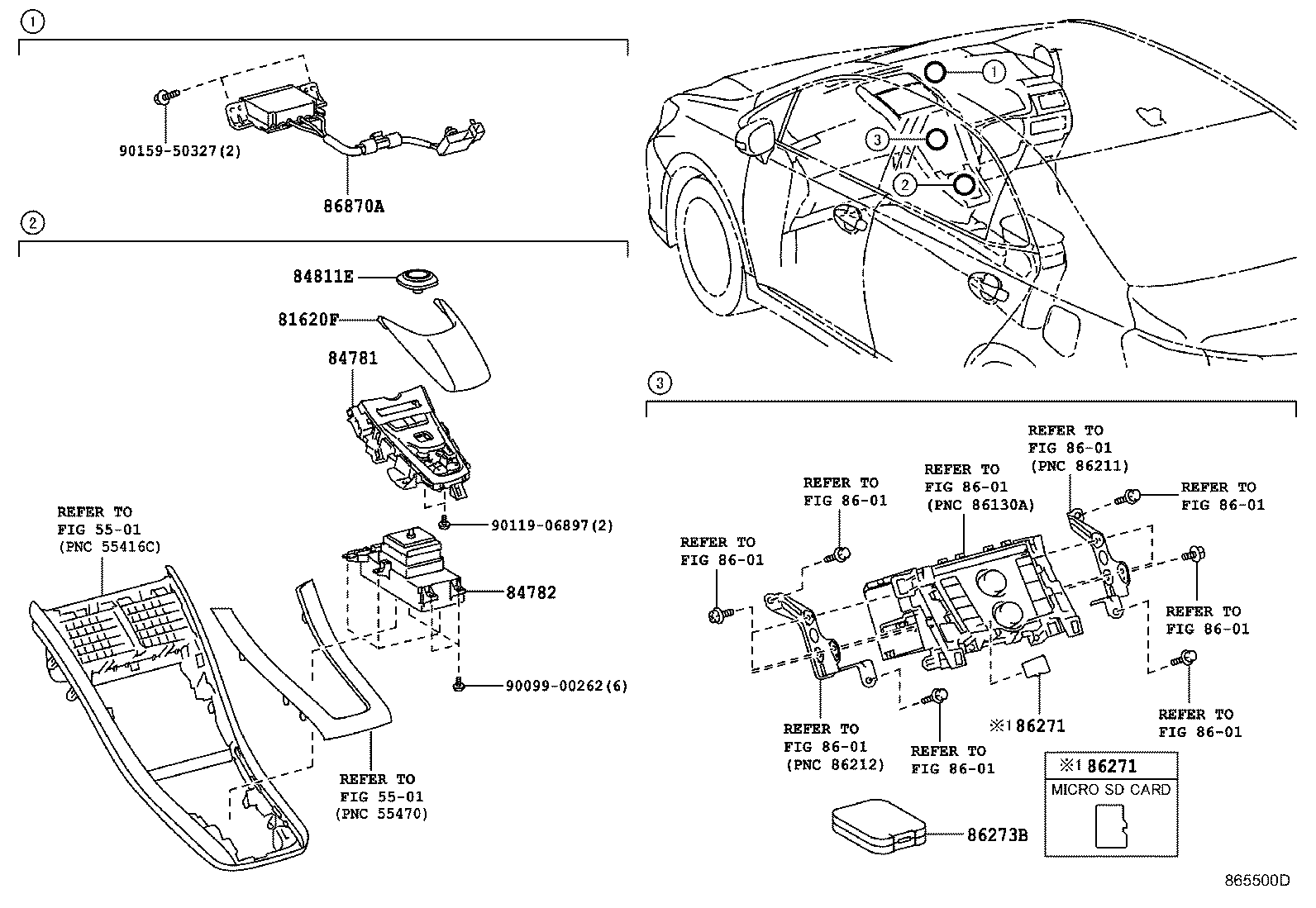

Figure 864155E 864155E 2009-11 → — Figure 864120D 864120D 2009-11 → 2013-08 Figure 865500D 865500D 2013-08 → —

Part groups

PNCDescription
81620F Cover Assy
82219F Wire, Sensor
82286B Wire, Earth, NO.2
84020 Circuit Assy, Switch, NO.1
84020A Circuit Assy, Switch, NO.2
84523B Wire, Switch
84781 Switch, Remote Operation
84782 Board, Remote Operation
84811E Knob, Switch
86104A Controller Sub-assy, Multi-display
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86271 Disc, Disc Player
86273B Adapter, Disc Player
86431A Board, Display Module
86453 Wire, Multi-media Module
86808 Cord Sub-assy, Navigation Antenna, NO.1
86842 Wire, Navigation, NO.1
86870A Antenna Assy, Gps & Vics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
