Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08
Antenna
13 part groups · 3 illustrations
Part groups

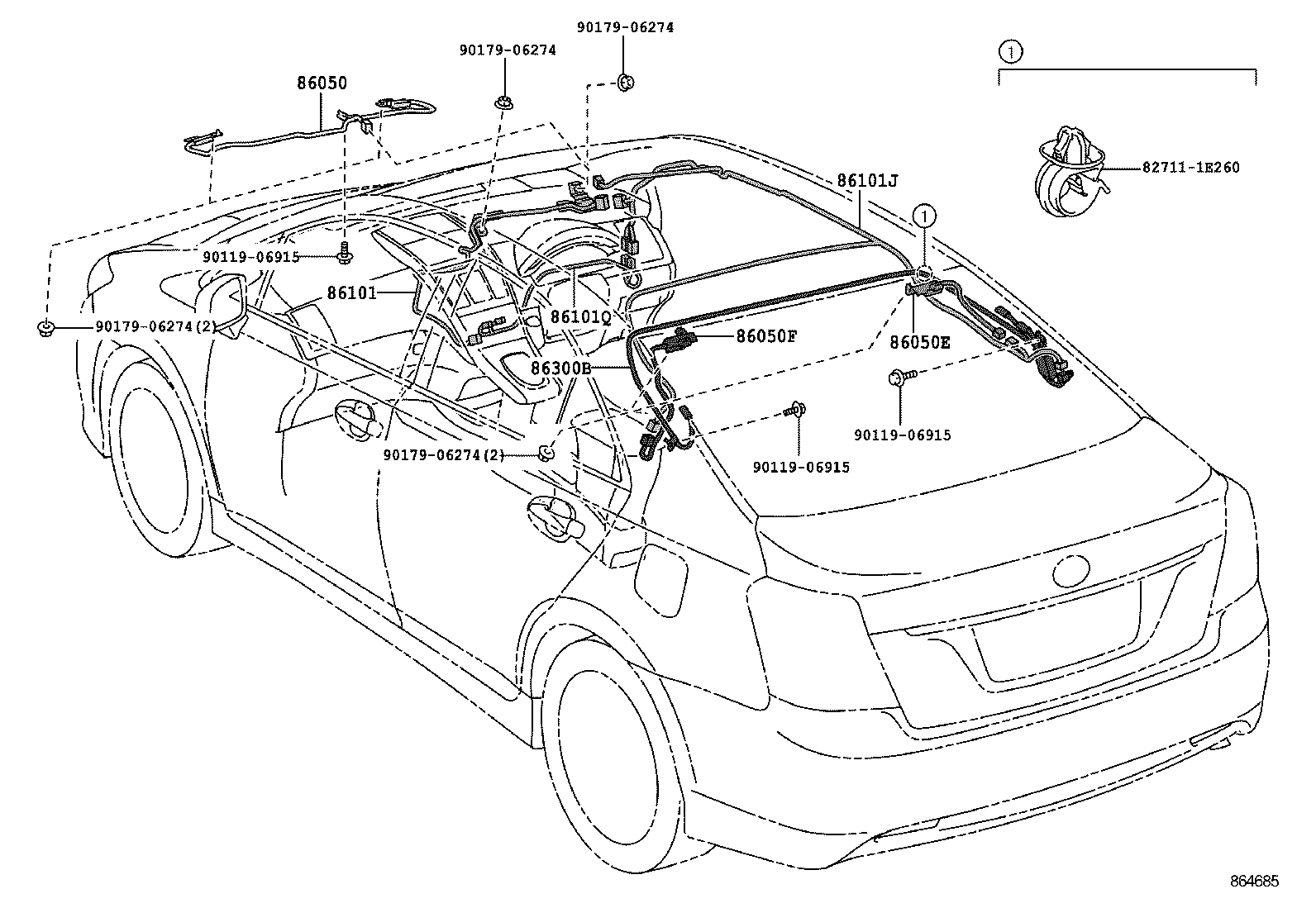

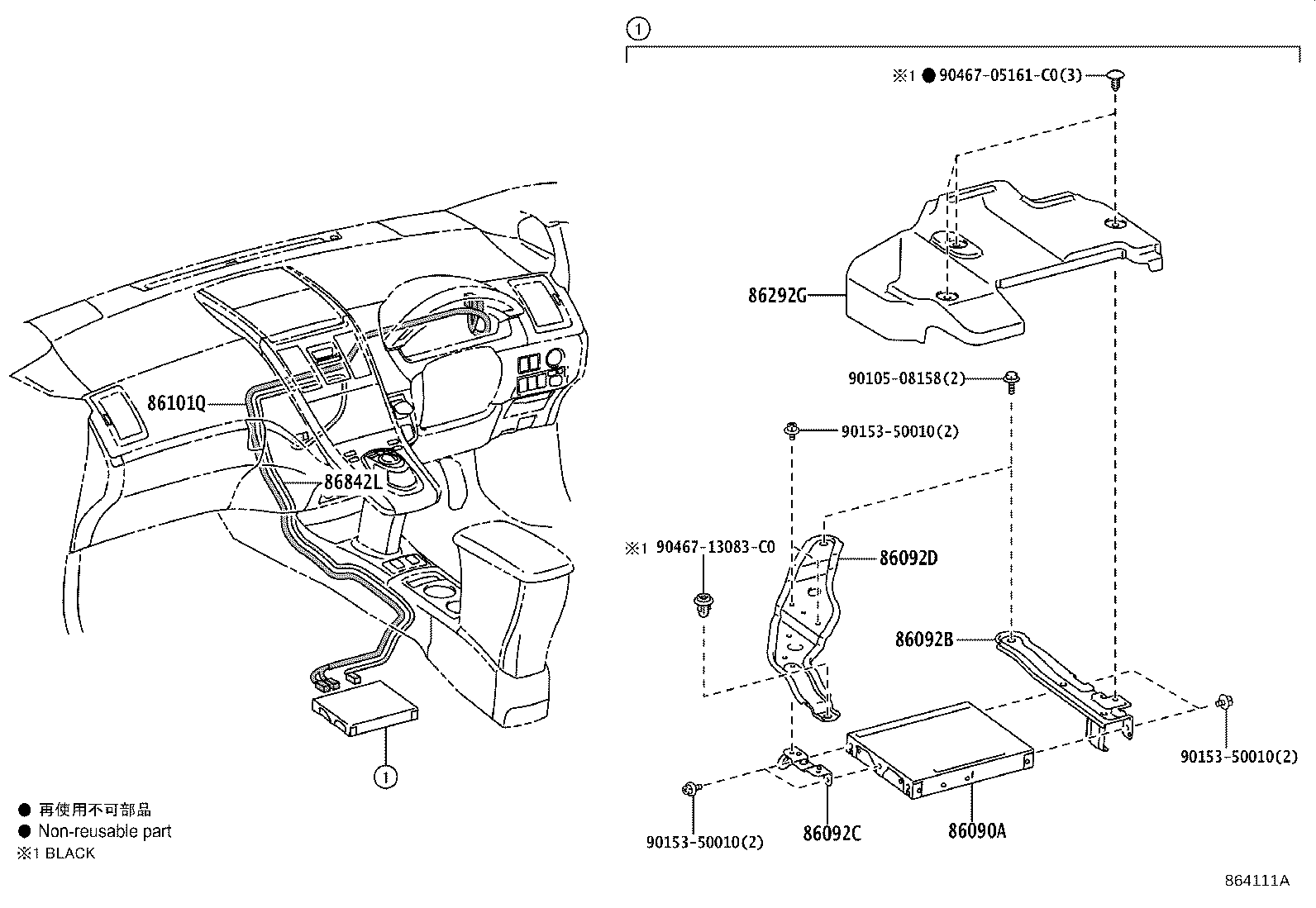

| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86090A | Tuner Assy, Digital Television |
| 86092B | Bracket Set, Digital Television, NO.1 |
| 86092C | Bracket Set, Digital Television, NO.2 |
| 86092D | Bracket Set, Digital Television, NO.3 |
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86292G | Cover, Television Set |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86842L | Wire, Navigation, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
